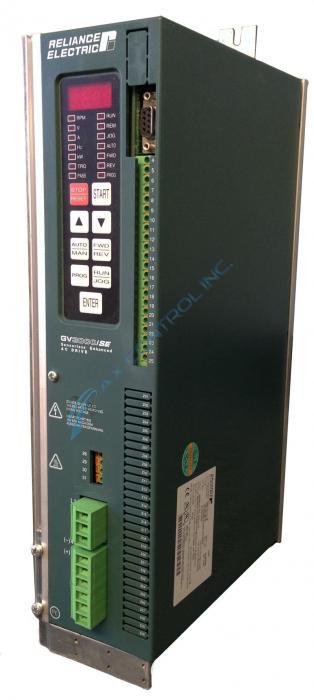

The GV3000E-AC015-AA-DBU drive is a bookshelf drive from Reliance Electric that operates on a current rating of 15.0 A in V/Hz mode. This drive has two alternate part numbers, 896.07.11 and 150ER4060.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a GV3000E-AC015-AA-DBU to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: GV3000E-AC015-AA-DBU
  • SKU: GV3000EAC015AADBURE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

GV3000E-AC015-AA-DBU Technical Specifications

Part Number GV3000E-AC015-AA-DBU
US Model Number 150ER4060
European Stock Number 896.07.11
Series GV3000
Manufacturer Reliance Electric
Bookshelf Drive Type GV3000/SE without CE Filter
Enclosure IP20
Keypad/Display Built-In Keypad
Instruction Manual D2-3426 & D2-3427
Phase 3 Phase
Input Voltage 380-460 VAC
Hz 50/60Hz
Input Amps 20 A
Input KVA 15.9 KVA
Motor Power in Vector Mode at 400 VAC 5.5 A

About the GV3000E-AC015-AA-DBU

The Reliance Electric drive GV3000E-AC015-AA-DBU is a bookshelf drive that does not come with a CE filter. The current rating for this drive is 15.0 A, with a nominal motor power of 7.5 A. Both sets of technical data are when the unit is in V/Hz regulator mode. There is another regulator mode that this model can be used in, which is the vector regulator. The motor power and inverter current for the GV3000E-AC015-AA-DBU drive in vector regulation is 5.5 A at 400 VAC for the motor power and 11 A at 2 kHz for the inverter current. There are two versions of the GV3000E drives; this model is considered a basic version as it only has DC-bus terminals and a braking unit.

Two alternate part numbers are often used to describe the GV3000E-AC015-AA-DBU drive. One of the alternate part numbers is known as the US model number, with the other being the European stock number. The US model number is 150ER4060, which can detail many different features of the drive, such as whether or not it comes with a filter, the current rating that it operates on, input amps, and more. For a complete list of the features and power ratings, refer to the second chapter of the GV3000/SE AC Bookshelf Drive Hardware Reference, Installation, and Troubleshooting Manual D2-3427 Instruction Manual.

The dimensions of the GV3000E-AC015-AA-DBU drive are as follows:

  • Width A: 3.74”

  • Height B: 14.88”

  • Width C: 1.50”

  • Mounting Height D: 16.61”

  • Depth E: 7.87”

These dimensions are in the aforementioned manual in chapter three on page three.

Frequently Asked Questions about GV3000E-AC015-AA-DBU

What are the dimensions of GV3000E-AC015-AA-DBU?
GV3000E-AC015-AA-DBU is 3.74 by 14.88 by 7.87 inches. GV3000E-AC015-AA-DBU also weighs 12lbs.
If I'm putting GV3000E-AC015-AA-DBU next to another bookshelf drive, how much room should there between the two?
If you put GV3000E-AC015-AA-DBU next to another bookshelf drive, there should be at least a 0.25 inch clearance between GV3000E-AC015-AA-DBU and the other drive.
Is there a choke on GV3000E-AC015-AA-DBU?
No there is not a choke on the AC input current on GV3000E-AC015-AA-DBU.
What are the manuals for GV3000E-AC015-AA-DBU?
There are two important manuals for GV3000E-AC015-AA-DBU. Each manual for GV3000E-AC015-AA-DBU is important in varying ways. Manual D2-3426 is the Software Start-Up and Reference Manual for GV3000E-AC015-AA-DBU. Manual D2-3427 is Hardware Reference, Installation, and troubleshooting Manual for GV3000E-AC015-AA-DBU. Both manuals are Version 6.06 and each manual is a Reliance manual. For a copy of either manual or both manuals, send a request for a GV3000E-AC015-AA-DBU manual.

Reviews For GV3000E-AC015-AA-DBU

Internal Review
(4.0)

The one downside of the GV3000E-AC015-AA-DBU is that no AC choke input fuse available with this drive. While there is no AC choke input fuse available there AC input current on this drive is greater than its successor which has a lower AC input current. The AC input on this model is 10 A. - AX Control Tech
