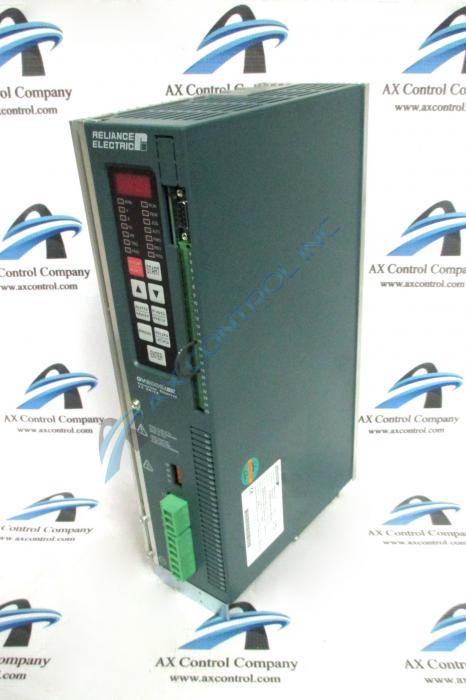

GV3000E-AC003-AA-DBU-RFI Image One
2 year warranty

GV3000E-AC003-AA-DBU-RFI Image 1
GV3000E-AC003-AA-DBU-RFI Image 2
GV3000E-AC003-AA-DBU-RFI Image 3
GV3000E-AC003-AA-DBU-RFI Image 4


    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
Reliance Electric model GV3000E-AC003-AA-DBU-RFI is one of the bookshelf drives used in the GV3000 series that offers a CE and RFI filter. This model will operate on a V/Hz current rating of 3.1 A with an input KVA of 4 A. The US model number of the GV3000E-AC003-AA-DBU-RFI drive is 31ET4060.



Sell Surplus: Have a GV3000E-AC003-AA-DBU-RFI to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: GV3000E-AC003-AA-DBU-RFI
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

GV3000E-AC003-AA-DBU-RFI Technical Specifications

Part Number GV3000E-AC003-AA-DBU-RFI
Manufacturer Reliance Electric
Series GV3000
Enclosure IP20
Keypad/Display Built-In Keypad
Instruction Manual D2-3426 & D2-3427
Input Voltage 380-460 VAC
Phase 3 Phase
Hz 50/60Hz
Current Rating 3.1 A
Input Amps 4 A
Inverter Version DC-Bus Terminals, Braking Unit, and RFI Filter
Output Amps in Vector Mode at 4 kHz 2.1 A
Motor Power in V/Hz Mode 1.1 kW
Input KVA 3.1 KVA

Product Description

The GV3000E-AC003-AA-DBU-RFI drive is a module that was manufactured by Reliance Electric as part of their GV3000 series of bookshelf drives equipped with an RFI or CE filter. When the model has been powered on and is running, two regulator modes can be used in either vector or volts/hertz (V/Hz) regulation. There are different values associated with the motor power or inverter current depending on the regulator mode that has been chosen. For example, if the GV3000E-AC003-AA-DBU-RFI drive is being used with a V/Hz regulator, the appropriate motor power at 400 VAC is 1.1. kW. The inverter current on the same regulator version is 3.1 A at 2 kHz.

In the GV3000-UM060K-EN-P GV3000/SE AC General Purpose and Vector Drive Instruction Manual, there is a cross-reference list. The cross-reference list lists the alternate part numbers for the GV3000E-AC003-AA-DBU-RFI drive. The two alternative part numbers correspond to each other easily as one is the US model number while the other is the European stock number. The US model number is 31ET4060 while the European stock number is 896.01.31. All three of the numbers are excellent sources for drive identification.

One of the features of the GV3000E-AC003-AA-DBU-RFI drive is the braking resistor. The braking resistor must be directly connected to the drive to do so the braking unit and the resistor itself are connected through a cable that is no longer than 2.5 meters. For a drive such as this, the maximum continuous braking current available is 10 A rms.

Frequently Asked Questions about GV3000E-AC003-AA-DBU-RFI

What does fault code "EC" mean on GV3000E-AC003-AA-DBU-RFI?
Fault code "EC" on GV3000E-AC003-AA-DBU-RFI is the fault code error for an earth current failure, which is also a ground fault. When fault code "EC" appears on GV3000E-AC003-AA-DBU-RFI, there has been unintentional grounding of the output.
What are GV3000E-AC003-AA-DBU-RFI's main components?
GV3000E-AC003-AA-DBU-RFI has 5 main components. GV3000E-AC003-AA-DBU-RFI has a regulator PCB, a fan, an output relay terminal strip, a power PCB, and a keypad/display.
What are terminals 16-25 used for on GV3000E-AC003-AA-DBU-RFI?
Terminals 16-25 are the 24V DC digital input connection terminals on GV3000E-AC003-AA-DBU-RFI.
Where can I find the manuals for GV3000E-AC003-AA-DBU-RFI?
We can provide you with the manuals for GV3000E-AC003-AA-DBU-RFI. There are two manuals for GV3000E-AC003-AA-DBU-RFI. There is a hardware manual and a software manual for GV3000E-AC003-AA-DBU-RFI. Manual D2-3426 is the software manual for GV3000E-AC003-AA-DBU-RFI and Manual D2-3427 is the hardware manual for GV3000E-AC003-AA-DBU-RFI. Both manuals are Reliance manuals and both manuals will help you greatly with identifying more of GV3000E-AC003-AA-DBU-RFI.

Reviews For GV3000E-AC003-AA-DBU-RFI

Internal Review

The GV3000E-AC003-AA-DBU-RFI has a regulator board that can provide pulse-width modulated (PWM) gating signal to insulated gate bipolar transistor (IGBT) power devices; these two functions will work together on the drive so that the PWM gating signals on the drive will be sent to the current feedback section of the power board ensuring that all reference signals and data are all up to date. - AX Control Tech
