75T4160 Reliance Electric 75 Horse Power Drive

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 896.15.91 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 896.15.91
  • SKU: 896.15.91RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

896.15.91 Technical Specifications

Manufacturer Reliance Electric
Series GV3000
Part Number 896.15.91
HP 75 HP
Input Voltage 380-460 VAC
Enclosure IP20
Keypad/Display Built-In Keypad
Phase 3 Phase
Hz 50/60Hz
Instruction Manual D2-3359 & D2-3360

Product Description

The 896.15.91, which is also known by 75T4160, is a GV3000/SE AC Drive. Reliance Electric initially designed this drive although ABB or Baldor Reliance may have also sold it based on its production years.

The 896.15.91 has the ability to be able to flip-flop between vector and volts/hertz regulation. This drive is rated as 60-75HP with vector regulation and 100HP with the standard V/Hz regulation. This drive has an input of 100 KVA and 126A. It has an output rating of 116A @ 2 kHz, 93A @ 4kHz, and 70A @ 8kHz.

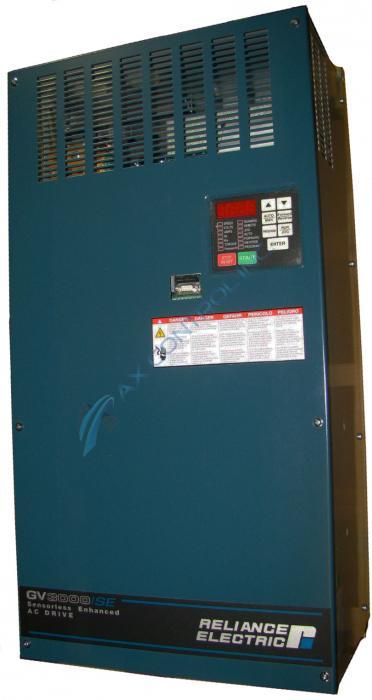

The 896.15.91 is surrounded by a type 1 NEMA chassis. It comes with a communications access flap that grants the user access to the RS-232 port on the regulator card without needing to disassemble the chassis. It has air vents on the front and sides of the chassis as well as circulation fans on the bottom to help protect the drive from overheating. This drive should be kept inside and not be used for outdoor applications. It does not have a drip/dust-tight chassis so, it should be kept from liquids, dust, and corrosive materials. There are brackets on the bottom and back of the chassis that can be used with washers and bolts to securely mount it vertically on to a flat panel. This drive should not be operated on the floor or horizontally.

There is a built-in keypad on the 896.15.91 that comes standard with the GV3000/SE version 6.06 series of drives. It has a display screen on the top left corner that is actually attached to the regulator board. There are 14 LED indicators below that that will glow to indicate the drive status and operating mode the drive is in.

Frequently Asked Questions about 896.15.91

What is the input KVA on 896.15.91?
896.15.91 has 100 KVA input.
Which parameter sets field weakening on a reliance 896.15.91?
Parameter U.016 is the Field Weakening Start RPM parameter on 896.15.91. This parameter sets the speed at which field weakening begins on 896.15.91. When 896.15.91 has 2 motor poles, the parameter range for 896.15.91 is 2880 to U.005. When 896.15.91 has 4 motor poles, 896.15.91 is 1440 to parameter U.005. When 896.15.91 has 6 motor poles, 896.15.91 has a parameter range of 960 to parameter U.005. And, parameter U.016 has a range of 720 to U.005 when 896.15.91 has 8 motor poles.
What is the fuse rating on a Reliance 896.15.91?
896.15.91 has a 125A fuse rating when 896.15.91 is at vector regulation but 896.15.91 has a 150A fuse rating when 896.15.91 is at V/Hz regulation.
Where can I get the manuals for 896.15.91?
The manuals for 896.15.91 can be found on our site or we can send you links to the manuals for 896.15.91. The manuals for 896.15.91 are Manuals D2-3359 and D2-3360, the software and hardware manuals for 896.15.91. Both manuals are reliance manuals for GV3000 NEMA style drives and both manuals will help greatly with 896.15.91.

Repair Services For 896.15.91

Type Lead Time Price Action
Repair Service 1-2 weeks $1621

Our highly skilled technicians can repair your 896.15.91. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
