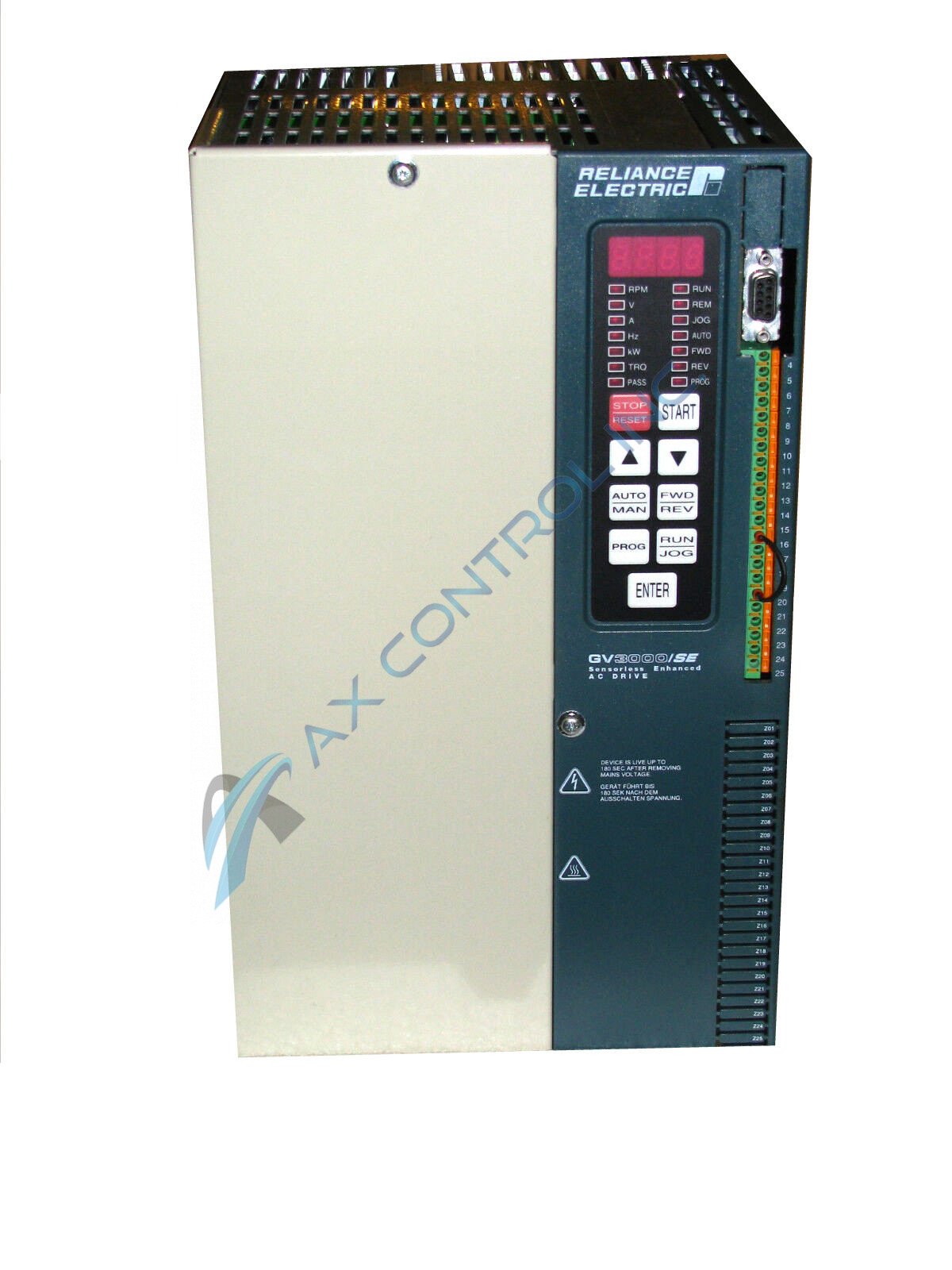

The 896.09.31 drive was produced by Reliance Electric as part of the GV3000 series. This model is a bookshelf drive that has a CE or RFI filter. The 896.09.31 drive will operate on a V/Hz current rating of 30.0 and has an input amperage of 32 A.



Sell Surplus: Have a 896.09.31 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 896.09.31
  • SKU: 896.09.31RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

896.09.31 Technical Specifications

Part Number 896.09.31
Series GV3000
Manufacturer Reliance Electric
Catalog Number GV3000E-AC030-AA-DBU-RFI
US Model Number 300ET4060
Enclosure IP20
Keypad/Display Built-In Keypad
Instruction Manual GV3000-UM060K-EN-P and D2-3427-3
Regulator Version Firmware Version 6.0
Phase 3 Phase
Hz 50/60Hz
Input Voltage 380-460 VAC
Inverter Type Version B with a Braking Unit, RFI Filter, and DC-Bus Terminals
Input KVA 25.5 KVA
Input Amps 32 A
Power Loss Watts (Full Load) 470
V/Hz Inverter Current 30 A
Motor Power in Vector Mode 11 kW

Product Description

GV3000 Drive 896.09.31 was produced by Reliance Electric as a bookshelf drive with a CE filter. The drive will operate on a current rating of 30.0 A. This part number is commonly referred to as the European stock number. The US model number that corresponds to this drive is 300ET4060. The ET in the US model number indicates whether or not the bookshelf drive has a CE filter, in which case this model has a CE filter. There is another number associated with the 896.09.31 drive, which is known as the catalog number. The catalog number is GV300E-AC030-AA-DBU-RFI. The three sections at the end of the catalog number indicate the inverter version which for this model is an inverter with an RFI filter, a braking unit, and DC-bus terminals.

There are several different inputs and outputs associated with this drive, some of which are the input amperage (A) and the input kilo-volt amperages (KVA). These input amps are 32 A with the input KVA being 25.5. There are also several output amps based on the regulator mode, which on the 896.09.31 drive is both vector and volts/hertz regulator modes, and the carrier frequency, the most commonly used carrier frequencies are 2, 4, and 8 kHz. The output amps for this drive when in vector mode are 22.0 A at both 2 and 4 kHz and 15.0 A at 8 kHz.

For more information on the 896.09.31 drive refer to the D2-3427-3 GV3000/SE AC Bookshelf Drive Hardware Reference, Installation, and Troubleshooting Manual or the GV3000-UM060K-EN-P GV3000/SE AC General Purpose and Vector Drive Instruction Manual for how each of the part numbers corresponds to each other.

Frequently Asked Questions about 896.09.31

What replacement parts are available for 896.09.31?
The Reliance replacement parts available for 896.09.31 are: a regulator PCB, keypad/display PCB, two fans, and a cover. For replacement part numbers for 896.09.31, view table 10.2 if the hardware manual for 896.09.31. Manual D2-3427.
What is the braking power on 896.09.31?
896.09.31 has a 15kW continuous braking power. 896.09.31 also has a 15kW 25% duty cycle braking power.
What is the maximum braking current on 896.09.31?
896.09.31 has a maximum braking current of 20 amps.
What are the turn-on and turn-off voltages for 896.09.31?
The turn-on voltage for 896.09.31 is 750V. The turn-off voltage for 896.09.31 is 720V.

Reviews For 896.09.31

Internal Review

The main downside of purchasing the 896.09.31 drive is that the input amps, as well as the input KVA, are lower than the previous model, the 896.09.11 drive, meaning that if requiring a model with a higher input, the purchaser should steer clear of this model. Information on the best models with higher input values can be found attached in the GV300-UM060K-EN-P or D2-3427-3 GV3000 Drive Manuals. - AX Control Tech
