896.06.70

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
Reliance Electric AC Power Drive 896.06.70 is a drive that has a NEMA 12 enclosure and operates on 7.5 HP in vector or volts/hertz regulation. The alternate part number also known as the US model number is 7V4260 and has a power loss watts at full load of 210.
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 896.06.70 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 896.06.70
  • SKU: 896.06.70RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

896.06.70 Technical Specifications

Part Number 896.06.70
US Model Number 7V4260
Catalog Number GV3000U-AC012-AJ-DBT
Series GV3000
Manufacturer Reliance Electric
Instruction Manual D2-3359 & D2-3360
Input Voltage 380-460 VAC
Enclosure NEMA 12
Keypad/Display Built-In Keypad
Hz 50/60Hz
HP 7.5 HP
Inverter Version Version w/ DC-Bus Terminals
Phase 3 Phase
Motor Power 5.5 kW
Nominal Inverter Current in Vector Mode 11.1

Product Description

The 896.06.70 drive is an AC power drive manufactured by Reliance Electric for the GV3000 series. During the operation of this drive, the horsepower is 7.5 HP. It can work in both vector and volts/hertz regulation. Several enclosure types are used with GV3000 drives, but the enclosure on this drive is NEMA 12. The NEMA 12 enclosure can only be used in indoor applications.

Two alternate part numbers are associated with the 896.06.70 drive; one of the part numbers is known as a US model number, and the other is known as a catalog number. The US model number is the part number that is commonly known; the US model number is 7V4260. The catalog number is lesser known but is found in the GV3000-UM060K-EN-P GV3000/SE AC General Purpose and Vector Drive Instruction Manual in the cross reference list; the catalog number is GV3000U-AC012-AJ-DBT. The catalog number is often used in situations where the version of the drive must be described. In this drive’s case, this drive version is an inverter drive with DC-bus terminals.  There are specific motor powers associated with the different regulator modes when using the 896.06.70 drive. On this drive, the motor powers for vector and V/Hz modes are both 5.5 kW.

There are switching frequencies available on the 896.06.70 drive, which are labeled as parameter 4.007. The switching frequency of this drive when operating at 4 kHz is a nominal 11.5 A, with a maximum percentage of 110%.

Frequently Asked Questions about 896.06.70

What are the manuals for 896.06.70?

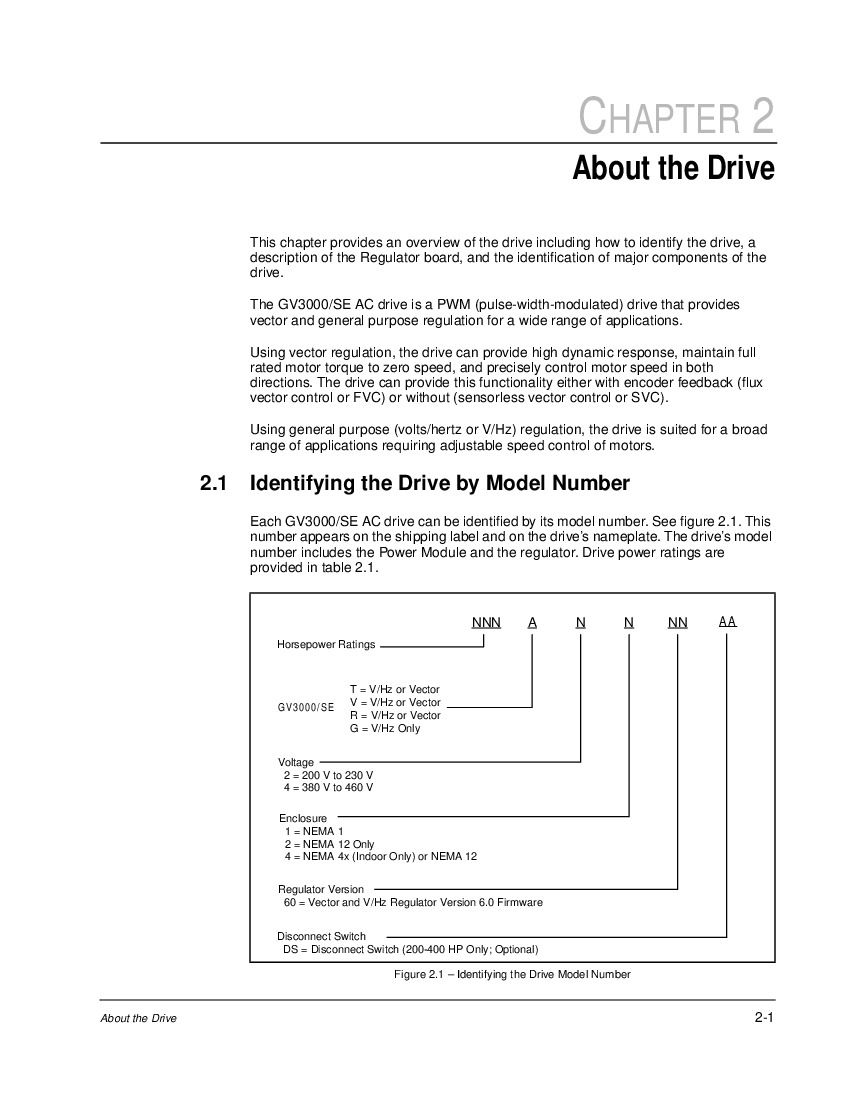

The manuals for 896.06.70 are the GV3000 NEMA style software and hardware manuals for 896.06.70. The manuals are Manuals D2-3359 and D2-3360. These manuals are reliance manuals and both manuals will help greatly with 896.06.70.
What are the overcurrent fault code errors on 896.06.70?
There are four overcurrent fault code errors on 896.06.70. Fault code "OC" on 896.06.70 is the fault error for overcurrent at a steady state. Fault code "OCA" is the fault error for overcurrent when 896.06.70 is at acceleration. Fault code "OCb" is the fault error when 896.06.70 has overcurrent at DC braking. Fault code error "OCd" is the fault for overcurrent on 896.06.70 when 896.06.70 is at deceleration.
What are the outer control loop parameters on 896.06.70?
The outer control loop parameters on 896.06.70 are parameters U.040-U.048. Parameter U.040 on 896.06.70 is the outer control loop feedback source parameter. Parameter U.041 on 896.06.70 is the outer control loop lead/lag select parameter. Parameter U.042 on 896.06.70 is the outer control loop lead/lag low frequency parameter. Parameter U.043 is the loop lead/lag ratio parameter. Parameter U.044 on 896.06.70 is the loop reference gain for 896.06.70's outer control loop, parameter U.045 is the proportional gain, and parameter U.046 is the integral gain. Parameter U.047 on 896.06.70 is the outer control lop trim range percentage parameter and parameter U.048 is the proportional trim enable for 896.06.70's outer control loop.
What does the NEMA 12 enclosure on 896.06.70 mean?
The NEMA 12 enclosure rating on 896.06.70 indicates that 896.06.70 is for use in indoor environments that require a dust-tight/drip-tight enclosure.
How much input KVA does 896.06.70 have?
896.06.70 has 10.7 KVA input.

Reviews For 896.06.70

Internal Review
(5.0)

The 896.06.70 drive is one of the first drives in the GV3000 series that operates on a nominal current greater than ten. This model will also operate on a rated current of 32 amps, with cUL and CE approvals. - AX Control Lead Technician
