Product Description

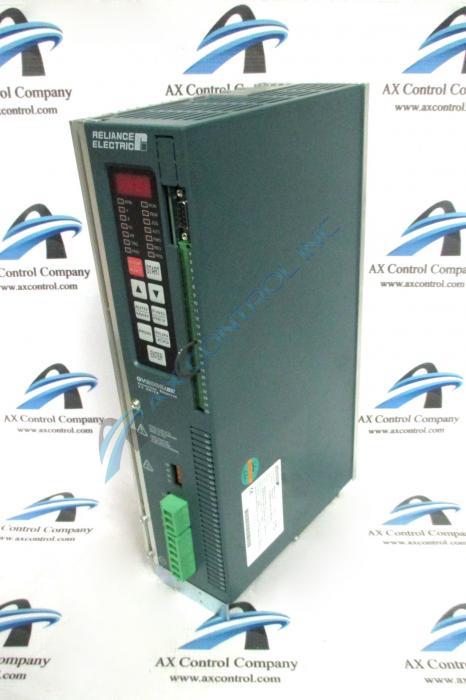

The 896.06.11 device is an AC bookshelf drive that was created to be included in the GV3000 series by Reliance Electric. The 896.06.11 AC bookshelf drive is no longer being manufactured by Reliance Electric but may still be available in our inventory due to our access to excess Reliance Electric stock. To make this easy on you, our website was designed to display the availability of these products on their respective pages.
The 896.06.11 AC bookshelf drive is a PWM, which stands for pulse-width-modulated, drive. This drive has the ability to provide both V/Hz regulation or vector regulation for different kinds of applications. When the 896.06.11 AC bookshelf drive is using vector regulation, it can maintain motor torque to zero speed, provide high dynamic response, and control the motor speed. When the 896.06.11 AC bookshelf drive is using V/Hz regulation, on the other hand, the drive can accomplish tasks that need adjustable control of the motor speed.
When the drive is using the vector regulation, the output Amps will be 9.3 at both 2 and 4 kHz and the output Amps will be 8.0 at 8 kHz. When the drive is using the V/Hz regulation, the output Amps will be 12.6 at 2 kHz, 12.0 at 4 kHz, and 8.5 at 8 kHz.
As for the input, the voltage is the same for the rest of the GV3000 series drives, which is 380 VAC thru 460 VAC. In addition, the input kVA is 12.7 and the input Amps is 16.
