896.03.80 Technical Specifications

Enclosure Type 1/IP20
HP 3 HP
Hz 50/60Hz
Input Voltage 380-460 VAC
Instruction Manual D2-3359 & D2-3360
Keypad/Display Built-In Keypad
kW 2.2kW
Manufacturer Reliance Electric
Part Number 896.03.80
Phase 3 Phase
Series GV3000

Product Description

The 896.03.80 is a GV3000/SE 3HP Drive made by Reliance Electric. There is a good possibility that this drive was also produced by Baldor Reliance or ABB. The 896.03.80 can also be found under the part number 3V4160. This is version 6.04 of this type of drive.

The 896.03.80 is 380-460 VAC, 2.2 kW, and 3-Phase. It has an input that is 50/60 Hz and 6.4 amps. It has an output that is 5.3 amps and 0-200 Hz. It has a full load power loss of 140 watts. It has the ability to maintain either vector or V/Hz regulation.

The 896.03.80 is protected in a NEMA 1/IP20 style of enclosure. It is only meant for inside usage because it is vented and is not drip or dust-tight. It does have a small opening on its faceplate that can give the user access to the RS-232 female communication port that is located on the regulator board.

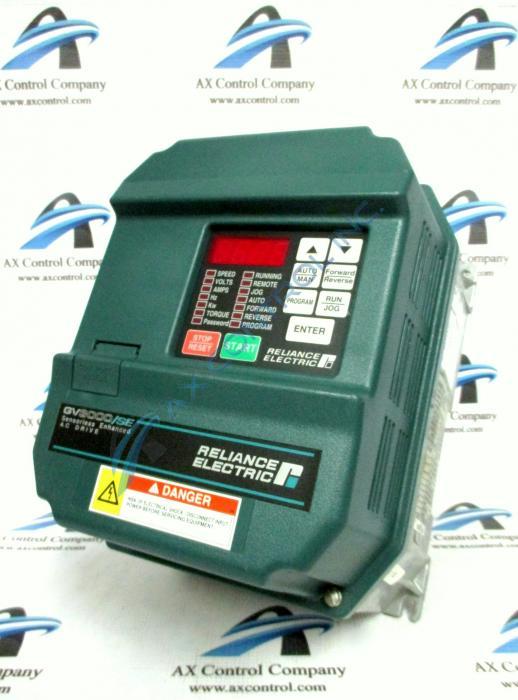

The built-in keypad on the 896.03.80 has several basic features that are common for the GV3000/SE style of drives. It has a 4-digit 7-segment LED display that is used to display error codes. There are 14 LED indicators that are labeled reverse, program, password, forward, torque, Kw, auto, jog, Hz, amps, remote, running, volts, and speed. Under these indicators is a red stop/reset key and a green start key. There are 7 other keys on this keypad that are labeled up arrow, down arrow, auto/man, run/jog, program, forward/reverse, and enter. On the back of the keypad is a bracket that can be used to slide the regulator PCB into place and mount it. The regulator should be positioned so that its display can be seen from the keypad.

Frequently Asked Questions about 896.03.80

What parameters must be set when wiring a run/jog input to 896.03.80?
When wiring a run/jog input to 896.03.80, there are several parameters that need to be set on 896.03.80. These parameters include: P.000, P.020, P.021, and P.022. These parameters on 896.03.80 are the control source, jog speed reference, jog ramp accel time, and jog ramp decel time parameters for 896.03.80, respectively.
What are the input and output amps on 896.03.80?
896.03.80 has 6.4 input amps. 896.03.80 has 5.3 output amps whether 896.03.80 is at a 2, 4, or 8 kHz carrier frequency.
Where can I find a list of replacement parts for 896.03.80?
Manual D2-3360, the software manual for 896.03.80, provides a list of replacement parts for 896.03.80. Section 9.5 in the manual is where you will find multiple tables for GV3000 replacement parts in the manual. For a copy of this manual for 896.03.80, request Manual D2-3360.
What is the service factor on 896.03.80?
896.03.80 has a 1.0 service factor.
