About the 896.00.70

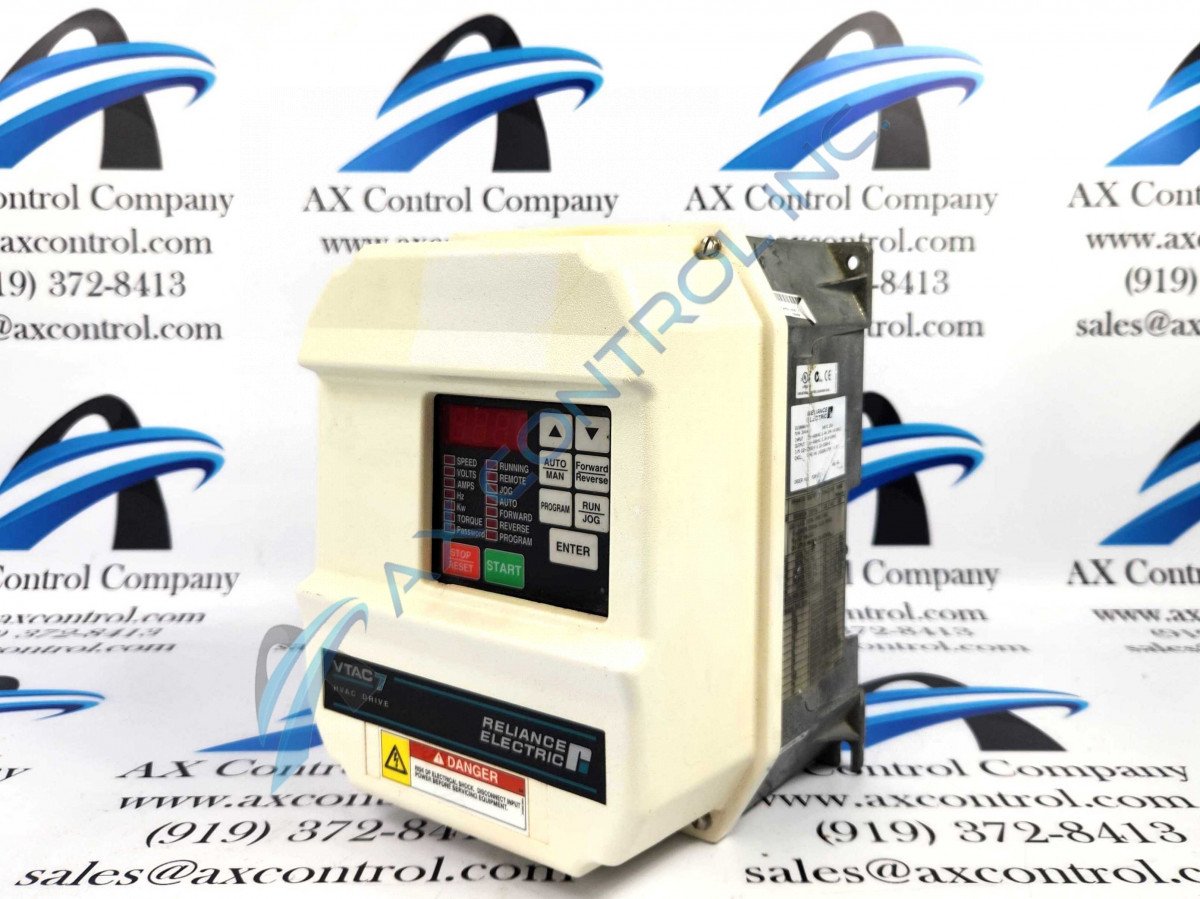

Considered a member of the Reliance Electric legacy series of GV3000 drive, this model, displayed here under its formal European part number of 896.00.70, could have been made by a handful of manufacturers following Reliance Electrics' own discontinuation of the product. This legacy series drive might have been manufactured by Baldor, ABB, or Rockwell Automation after its initial conception at Reliance Electric, and is available for either replacement or repairs right here at AXcontrol.com. Our repair service on this particular GV3000 legacy series drive has a standard lead time of one to two weeks.
Hardware Tips and Specifications
Reliance Electric GV3000 AC Drive 896.00.70 operates on 1 HP and at a voltage range of 380 V to 460 V. There are two alternative numbers associated with this part, one is the U.S. model number and the other is the catalog number. The U.S. model number is 1V4460 with the catalog number being GV3000U-AC002-AF-DBT. The regulator versions available to use with this drive are Volts/Hertz and Vector regulation. The input amperage available on this drive is 2.5 A. The enclosure rating on this drive is 4X/12. The enclosure type indicates that it is not vented but it comes with two gasket types which are keypad and base gaskets.
When operating the 896.00.70 input line branch circuit fuses must be used so that the input power lines on the drive are constantly protected, only one input fuse rating is able to be used with one drive per branch circuit. The fuse rating assigned to operate with this model is six amperes. The recommended fuse type per Reliance Electric in the D2-3360-5 Manual is a UL Class J, time delay, 600 V, or something equivalent to these settings.
The 896.00.70 model has specific dimensions which are used to determine the total area. The dimensions of the 896.00.70 drive show that it is a small GV3000/SE Drive. The dimensions are as follows:
-
Dimension A: 8.75”
-
Dimension B: 11.05”
-
Dimension C: 7.80”
-
Dimension D: 10.01”
-
Dimension E: 7.87”
The placement and exact positioning of these dimensions is well-explained in "Figure 3.1 – Drive Dimensions" available online through Reliance Electrics' GV3000/SE AC Drive Hardware Reference, Version 6.06. All of these dimensions contribute to a relatively heavy drive weight sitting around 22 lbs.
Software Tips and Specifications
If using an incorrect fuse rating with this model of GV3000 series drive, it would be no surprise to run into an occurrence of the low DC bus voltage fault, represented by the fault code LU on this drive's standard Reliance Electric built-in keypad display. The low DC bus voltage fault is caused by either defective input rectifier diodes, or too low of a DC bus voltage with too long of a line dip. Corrective action when faced with the low DC bus voltage fault involves thorough checks on drive input voltage and line fuses, as well as checks on the drive's Ride-Through Time and Line Voltage parameters. It may be necessary to add a transformer for proper drive function. A more complete walkthrough of GV3000 series drive faults is accessible online with Reliance Electrics' Software Start-Up and Reference Manual D2-3359-6.
Compatibilities
This style of GV3000 series legacy drive, otherwise known by its Americanized part number 1V4460 or catalog number GV3000U-AC002-AF-DBT, has an updated regulator version of 6.0, making a number of regulator boards available through AXvontrol.com the obvious choice for your regulation needs. We are proud to offer a range of options compatible with the 896.00.70 drive, including:
