Reliance Electrics' GV3000 series's 7V4160 model is a 50/60Hz, 7.5 HP 3-phase drive with an input voltage of 380-460 VAC, a NEMA 1 enclosure, and a built-in keypad.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 7V4160 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 7V4160
  • SKU: 7V4160RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

7V4160 Technical Specifications

Manufacturer Reliance Electric
Series GV3000
Part Number 7V4160
HP 7.5 HP
Input Voltage 380-460 VAC
Enclosure NEMA 1
Keypad/Display Built-In Keypad
Phase 3 Phase
Hz 50/60Hz
Instruction Manual D2-3359 & D2-3360

About the 7V4160

The 7V4160 unit is a GV3000 series AC drive that was brought to the market by the company Reliance Electric. The GV3000 drive series is now a legacy series. Therefore, the 7V4160 AC drive and all of the other AC drives in that series are not being produced by their original manufacturer anymore. However, the staff at AX Control understand that these AC drives are important to the operations of some facilities, so we make our best effort to supply these AC drives for the convenience of our customers.

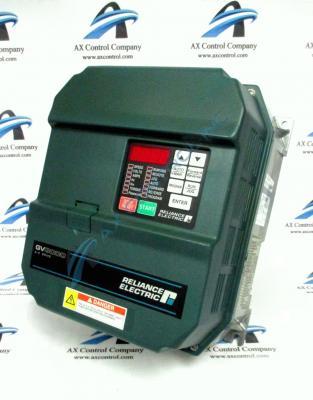

On the front part of the 7V4160 AC drive, you will see the accessible keypad, LED status indicators, and four-digit display screen. This is the operator interface area, which is designed with large buttons and numbers so that it is easy to use and easy to read.

The 7V4160 AC drive is outfitted with the enclosure rating NEMA 1. This enclosure is vented and is designed with a small door that is meant to provide an access point for the communication port. With the inclusion of this communication port access door, you will not need to remove the cover of the 7V4160 AC drive. The NEMA 1 enclosure is best suited for drives that are used inside rather than outside.

The input for the 7V4160 AC drive is rated at 380-460 VAC (+/-10%), 10.7 kVA, and 13.4 A. The output of the 7V4160 AC drive is rated at 11.1 A no matter what kHz rating it is running on. For the power loss, at full load it is rated at 210 W.

Lower-horsepower indoor drives like the 7V4160 have their fair share of faults, just as more rugged higher-voltage GV3000 legacy series drives do. With proper maintenance, as well as a complete understanding of fault codes and programming for the Reliance Electric GV3000 drive, this should be no cause for panic. One fault that has disrupted proper function of this 7 HP drive for many operators in the past can be defined as the incorrect precharge status fault, signified by the presence of the fault code bYC on the drive's built-in keypad display. This fault is caused by a precharge initiation followed by an incorrect returned precharge status. Corrective action when encountering this bYC fault would be to check the functional operation of the precharge. For more advice on GV3000 legacy series fault codes and fault troubleshooting, a comprehensive online guide is available with Reliance Electric's instructional manual D2-3359 & D2-3360.

Frequently Asked Questions about 7V4160

What is the input KVA for 7V4160?
7V4160 has a 10.7 KVA input.
What are the accel and decel parameters on 7V4160?
The accel parameters on 7V4160 are parameter P.002, the accel time 1 (RAMP 1) parameter, and parameter P.017, accel time 2 parameter (RAMP 2). The deccel parameters on7V4160 are parameters P.002 and P.018. Parameter P.002 is 7V4160's decel time 1 (RAMP 1) parameter. Parameter P.018 on 7V4160 is the decel time 2 (RAMP 2) parameter.
Where does output power wiring connect to 7V4160?
Output power wiring connects to terminal U/T1, V/T2, and W/T3 on 7V4160. For output wiring on 7V4160, use a wire no greater than 12 AWG.
How can I find the manuals for 7V4160?
You can most likely find the manuals for 7V4160 on our website, but if you're having trouble finding the manuals, send us a request for 7V4160 manuals and we'll send you the links. Manual D2-3359 is the software manual for 7V4160 and Manual D2-3360 is the hardware manual for 7V4160. Both manuals cover 7V4160 in its entirety.

Reviews For 7V4160

Internal Review
(5.0)

Another attractive selection from Reliance Electric's GV3000 legacy series, the 7V4160-model AC drive here at AXcontrol boasts a new 6.0 regulator version. This drive comes with an attached NEMA 1-type chassis ideal for your low-horsepower indoor automation needs; featuring the aforementioned small communication port door for convenient access. - AX Control Lead Technician
