7V4140

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
Reliance Electric GV-3000 GV3000/SE 7.5 HP AC Motor Drive.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 7V4140 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 7V4140
  • SKU: 7V4140RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

7V4140 Technical Specifications

Manufacturer Reliance Electric
Series GV3000
Part Number 7V4140
HP 7.5 HP
Input Voltage 380-460 VAC
Enclosure IP20
Keypad/Display Built-In Keypad
Phase 3 Phase
kW 5.5kW
Hz 60Hz
Instruction Manual D2-3323 & D2-3324

About the 7V4140

The 7V4140 unit is a 3-phase AC drive that was produced for the GV3000 series of products by the company Reliance Electric. The 7V4140 AC drive is no longer being produced under the Reliance Electric name, but it can still usually be found in AX Control’s inventory. To make sure we have the 7V4140 AC drive in stock currently, you can look on our website.

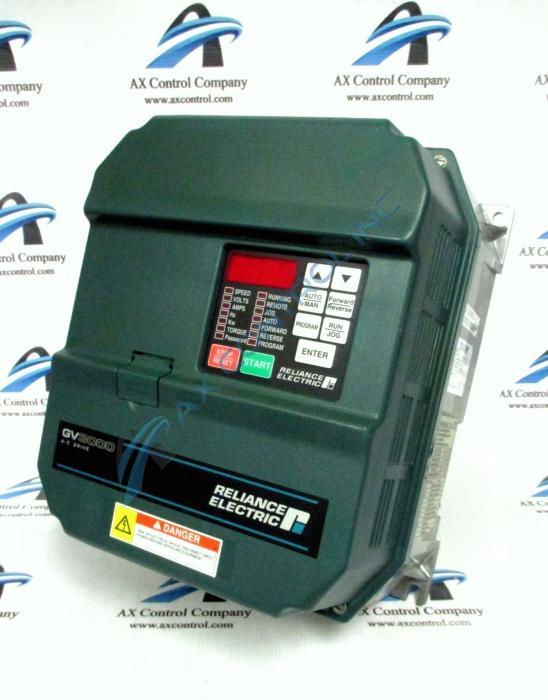

The 7V4140 AC drive has a large faceplate. This faceplate has a small area dedicated to user control. In the top left corner of this area, you will find a small four digit screen for displaying information. Below the display screen, there are numerous indicator lights that are each individually labeled. The rest of this area is comprised of large labeled buttons to control the drive and its display screen.

The 7V4140 AC drive has a horsepower rating of 7.5 HP and an AC input line fuse rating of 25 A. The total input voltage for this device is at a range between 380 VAC and 460 VAC with a +/-10% margin of error. The input kVA rating is 10.7 and the input Amps rating is 13.4. The output Amps rating is 11.1 across the board. The total power loss at full load for the 7V4140 AC drive is 210 W.

The total dimensions for this product is 11.05 inches x 13.32 inches x 9.76 inches x 12.17 inches x 7.87 inches. Additionally, the total weight of the 7V4140 AC drive is 20 lbs. or 9 kg.

Frequently Asked Questions about 7V4140

What's the short circuit rating on 7V4140?
7V4140 has a short circuit rating that's 25000 A.
What are the input and output amps on 7V4140?
7V4140 has 13.4 input amps and 7V4140 has 11.1 output amps.
Which connections are for RS-232 connection on 7V4140?
The RS-232 connections on 7V4140 are terminals 1-3 on 7V4140. Terminal 1 on 7V4140 is the transmit RS-232 connection. Terminal 2 on 7V4140 is the receive RS-232 connection, and terminal 3 on 7V4140 is the regulator common on 7V4140.
What is each manual that's used for 7V4140?
Each manual for 7V4140 is important to 7V4140 in different ways. Manual D2-3323 is the software manual for 7V4140. Manual D2-3324 is the hardware manual for 7V4140. Each manual will be helpful with 7V4140 and each manual will give you different information to use with 7V4140.

Repair Services For 7V4140

Type Lead Time Price Action
Repair Service 1-2 weeks $1311

Our highly skilled technicians can repair your 7V4140. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
