About the 790.40.10
The 790.40.10 drive is produced by Reliance Electric as part of the GV3000/SE Drives. There is an alternate part number associated with the 790.40.10 drive which is GV3000-AC210 and most information regarding this drive is taken from documentation referring to the drive as the alternate part number. This drive will operate on a line input voltage range of 340 to 506 VAC (volts of alternating current).
A built-in braking unit is available on the 790.40.10 model and there are several different currents and power voltages associated with the drive. The continuous braking power associated with this drive is 18 kW with the short-time braking power at cycle being 75 kW. The braking current of the model is 50 A.
As with many of the other drives in the GV3000 series, the regulators associated with the 790.40.10 drive are vector or V/Hz. The nominal current of this drive depends on the regulator selected, for vector regulation the nominal current is 152 at 2 kHz with the current involving the V/Hz regulation being 210 also at 2 kHz.

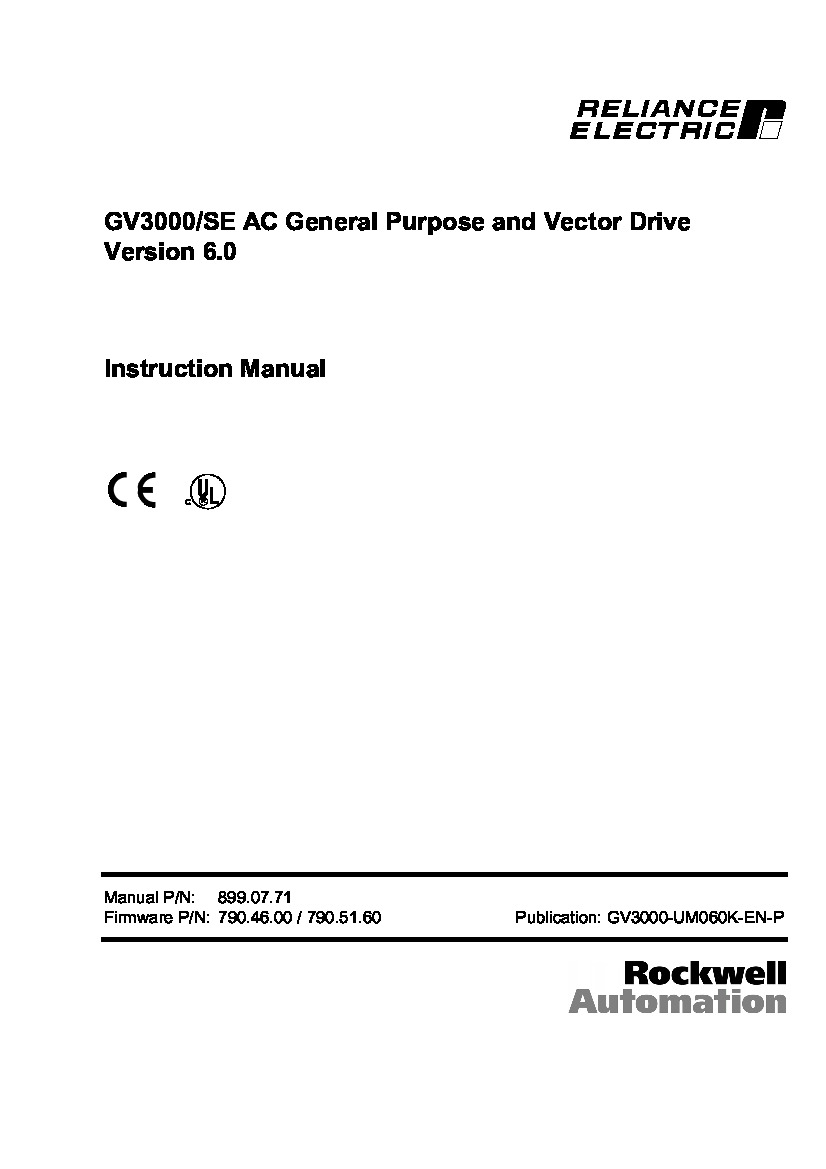

For more information involving the 790.40.10/GV3000-AC210 refer to the GV3000-UM060K-EN-P GV3000/SE AC General Purpose and Vector Drive Instruction Guide which has copious information on the GV3000 drives regarding technical data, vector, and V/Hz regulation, and more.
