Reliance Electric GV-3000 GV3000/SE 75HP 79.7KVA Drive. Call Now! | Image
2 year warranty

Reliance Electric GV-3000 GV3000/SE 75HP 79.7KVA Drive. Call Now! | Image
Reliance Electric GV-3000 GV3000/SE 75HP 79.7KVA Drive. Call Now! | Image

75V4060

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (6)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (6)
  • Click a star to rate this product

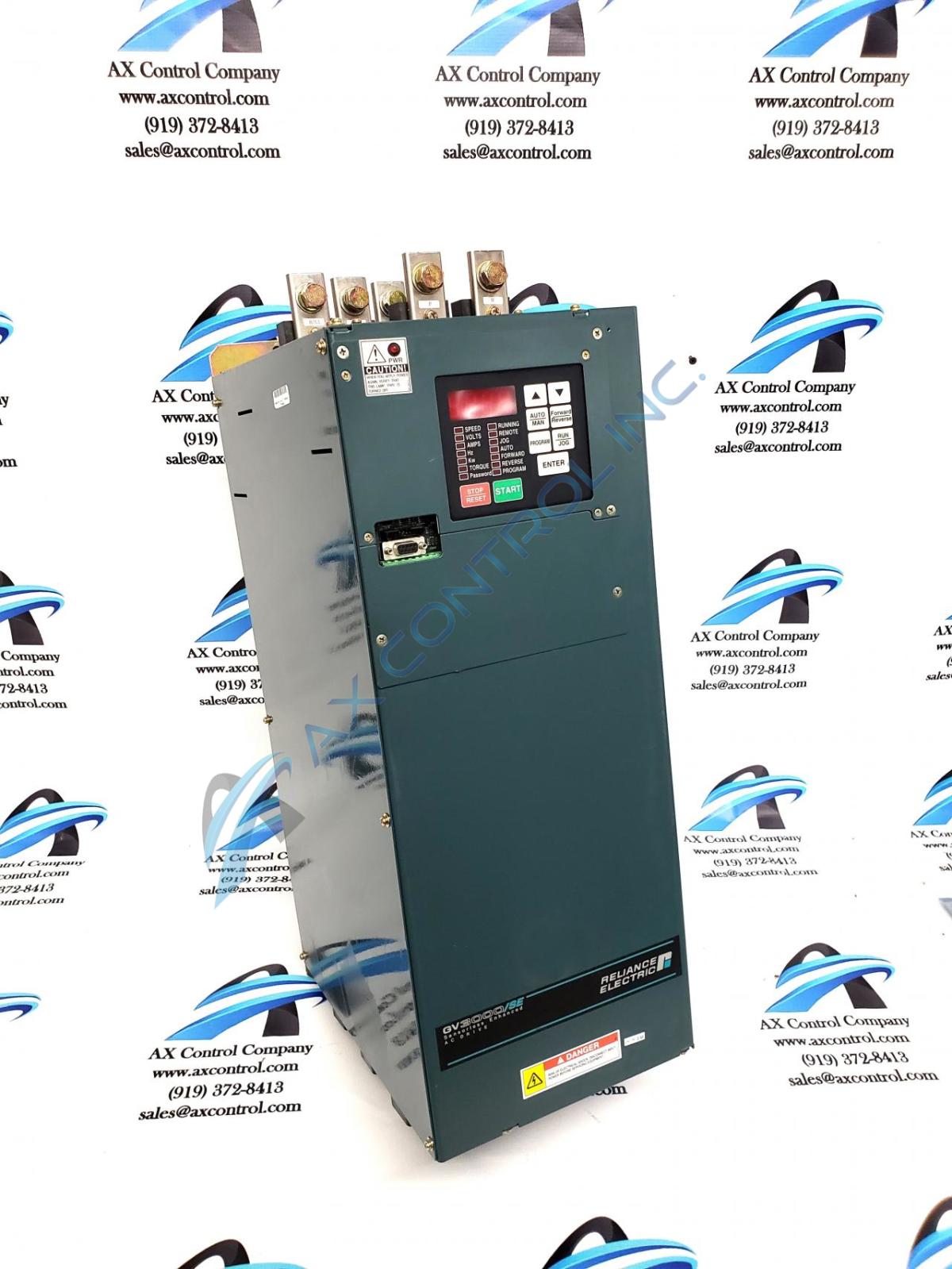

The 75V4060 drive is a bookshelf drive from Reliance Electric and is part of the GV3000 Series. The model will run on an input voltage in the range of 380-460 V. The 75V4060 drive has an assigned carrier frequency of 4 kHz but can operate at 8 kHz, when operating at that frequency the rated output current will be limited to 80%.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 75V4060 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 75V4060
  • SKU: 75V4060RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

75V4060 Technical Specifications

Part Number 75V4060
Series GV3000
Manufacturer Reliance Electric
Country of Manufacture United States in Cleveland, OH
Instruction Manual D2-3391-6
Selectable Regulation V/Hz or Vector
Enclosure IP20
Phase 3 Phase
Hz 60 Hz
Input Voltage 380-460 VAC
HP 75 HP
Motor Nameplate Amps Value 96.0
Rotor Time Constant/Fast Flux Up 250

Product Description

Reliance Electric has an extensive network of GV3000 drives, the 75V4060 drive is one of the bookshelf drives in the series. This specific drive will operate on 75 HP, as noted by the first two characters within the model number. The input voltage range used with this drive is 380 to 460 VAC. The regulator version of this model is Vector or V/Hz with 6.0 firmware.

There are different components with each drive depending on the horsepower that the chosen drive will operate on. The 75V4060 model is one of the drives in the 60-100 HP drives and has sixteen key components. The sixteen key components are a gate drive printed circuit board (PCB), D-C bus fuse, keypad, 24 VDC fan, precharge contactor, precharge resistor, output reactor, intelligent power module interface PCB, regulator PCB, bus charge resistor, ground fault transformer, diode bridge, right and left bus clamp PCBs, and an intelligent power module PCB. The locations of all of these components can be found in the GV3000/SE AC Bookshelf Drive Hardware Reference, Installation, and Troubleshooting Manual D2-3360-5 in Figure 2.6.

As mentioned above there is a regulator board associated with the 75V4060 drive. There are specific components associated with the regulator board of this drive, which requires a 60-150 HP regulator board. The components are a sixty-pin J16 ribbon cable, a J17 analog output jumper, a J8 RS232C port, an optional J7 OIM connector, a J9 keypad/display connector, a J4 analog input jumper, and a J3 option board connector. The locations of these jumpers and connectors can be found in the aforementioned manual in Figure 2.10.

Frequently Asked Questions about 75V4060

What are the maximum input amps on 75V4060?
75V4060 has 100 maximum input amps.
What is the carrier frequency parameter on 75V4060?
The carrier frequency parameter on 75V4060 is parameter P.047. This parameter is default set to 4 kHz on 75V4060, but the parameter can be set to 2 or 8 kHz as well. When 75V4060 has an 8 kHz carrier frequency set by parameter P.047, 75V4060 has a limited output current of 80%.
What is the input KVA on 75V4060?
75V4060 has a 79.7 KVA input.
Which manual will help me with 75V4060?
Manual D2-3391-6 is a manual that will help you with 75V4060. This manual is the software manual for 75V4060 and the manual will give you a list of parameters on 75V4060. There is also a hardware manual for 75V4060 that will help you as well. The hardware manual for 75V4060 is Manual D2-3392-6.

Reviews For 75V4060

Internal Review
(5.0)

There is a compatible reactor associated with the 75V4060 drive. The reactor is labeled as RL-10003 480 Volt reactor working at 5%. The reactors are used to help limit nuisance trips along with the motor lead lengths. - AX Control Tech Team

Repair Services For 75V4060

Type Lead Time Price Action
Repair Service 1-2 weeks $1223

Our highly skilled technicians can repair your 75V4060. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
