Reliance 60G4260 GV3000 60HP AC Drive

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 60G4260 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 60G4260
  • SKU: 60G4260RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

60G4260 Technical Specifications

Manufacturer Reliance Electric
Series GV3000
Part Number 60G4260
HP 60 HP
Input Voltage 380-460 VAC
Enclosure NEMA 12
Keypad/Display Built-In Keypad
Phase 3 Phase
Hz 50/60Hz
Instruction Manual D2-3359 & D2-3360

About the 60G4260

The 60G4260 unit is an AC drive that was made by Reliance Electric. The 60G4260 AC drive was made as part of the GV3000 series, a product line that has since been called a legacy series. This means that the 60G4260 AC drive and the rest of the products in the GV3000 series are no longer being produced by the original manufacturer, Reliance Electric. Even though the production of this product and its series as a whole has stopped, AX Control regularly has the 60G4260 AC drive and many other drives in the GV3000 series in stock. Our website was made so that you can check on the availability of a product before you order it.

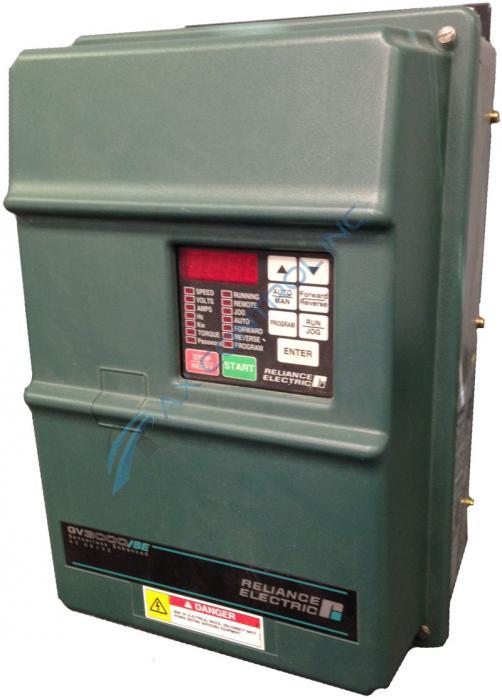

The front of the GV3000 drives is outfitted with a small interface area, which comes equipped with a keypad with many different buttons, a four digit display, and two rows of labeled LED indicators.

The 60G4260 AC drive is a 60 HP drive that uses the V/Hz selected regulation type, which has a continuous output current capability of 110%. The input has a kVA rating of 71.7, an amperage rating of 90.0, and a voltage rating of 380-460 VAC. As for the output, the amperage rating at any kHz rating is always 78.0. Additionally, the power loss at full load is rated at 1200 W.

The 60G4260 AC drive uses the NEMA 12 enclosure, which was made to be used with devices that are kept in certain indoor environments that require them to be both drip-tight and dust-tight.

Frequently Asked Questions about 60G4260

How much input KVA does 60G4260 have?
60G4260 has 71.7 KVA input.
What's the difference between form A and form B contacts on 60G4260?
Terminals 28-31 on 60G4260 are contact terminals. Terminals 28 and 29 on 60G4260 are Form B terminals while terminals 30 and 31 on 60G4260 are Form A terminals. The Form B terminals on 60G4260 are normally-closed contacts. The Form A terminals on 60G4260 are normally-open contacts. Both form A and from B contacts on 60G4260 are rated for 250 VAC/30 VDC at 5 amps resistive or 2 amps inductive load. To wire these terminals on 60G4260, view the wiring information in Manual D2-3360 and set parameter P.013 on 60G4260, the output relay configuration parameter for 60G4260. Depending on the setting of parameter P.013 on 60G4260, the relay coil will energize, meaning the normally-open contacts will close and vice versa on a reliance 60G4260. For best description of this, view table 7.8 in the hardware manual for 60G4260, Manual D2-3360.
How many power loss watts does 60G4260 have?
60G4260 has 1200 power loss watts when 60G4260 operates at full load.
What does fault code "OPL" mean on a reliance 60G4260?
Fault code "OPL" is the fault error for motor output phase loss on 60G4260. When this fault appears on 60G4260, phase was lost between 60G4260 drive and 60G4260 motor. To correct this fault, check connections and cable of all 3 phases and motor windings on 60G4260.

Repair Services For 60G4260

Type Lead Time Price Action
Repair Service 1-2 weeks $1232

Our highly skilled technicians can repair your 60G4260. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
