In Stock! Reliance Electric GV-3000 GV3000/SE 5 HP 2A HVAC Drive. Call Now! | Image

❯

5V4460

Name: 5V4460
Brand: Reliance Electric
SKU: 5V4460RE
Price: 1462 USD
Availability: InStock
Rating: 5 (3 reviews)

5.00 (3)
Click a star to rate this product

5.00 (3)
Click a star to rate this product

Reliance Electrics' 5V4460 model of GV3000 3-phase legacy drive is a 5 HP, 4.0kW, 50/60Hz drive with a built-in keypad and a NEMA 4X/IP54 enclosure.

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 5V4460 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 5V4460
SKU: 5V4460RE

Manufacturer: Reliance Electric
Series: GV3000 Drives

Description
Repairs
Warranty
Manuals

5V4460 Technical Specifications

Manufacturer	Reliance Electric
Series	GV3000
Part Number	5V4460
HP	5 HP
Input Voltage	380-460 VAC
Enclosure	NEMA 4X/IP54
Keypad/Display	Built-In Keypad
Phase	3 Phase
kW	4.0kW
Hz	50/60Hz
Instruction Manual	D2-3359 & D2-3360

Product Description

The 5V4460 module is an AC drive that was designed by Reliance Electric so that it could be included inside of the GV3000 series. However, Reliance Electric has since halted the production of the 5V4460 AC drive as a result of the GV3000 product line being deemed a legacy series. Despite this, you may still be able to find the 5V4460 AC drive in our stock here at AX Control.

The 5V4460 AC drive has both V/Hz and Vector system regulation capabilities and a total horsepower rating of 5 HP. As for the input of the 5V4460 AC drive, it is rated at 7.9 kVA and 9.9 A. Additionally, the voltage for the input is at a range of 380 VAC through 460 VAC. The output of the 5V4460 AC drive is rated at 8.2 A, no matter the kHz rating at which it is running. Finally, the full load power loss rating of the 5V4460 AC drive rests comfortably at 180 W with a fuse rating of 20A for this GV3000 series drive.

The 5V4460 AC drive has a NEMA enclosure rating that is classified as 4X/12. The NEMA 4X/12 enclosure is one that is not vented and is supplied with both base and keypad gaskets. This particular enclosure rating is designed for drives that are used in indoor areas that need to be protected from both dust and liquids from interfering with its processes.

On the faceplate of the 5V4460 AC drive, you will find a small display that will show the user fault codes and parameters for the drive. Some faults that may disproportionately affect owners of this style of Reliance Electric drive include faults such as

The overcurrent fault, symbolized by fault codes "OC" or "OCA" on 5V4460's built-in keypad display.
The bus voltage fault, symbolized by fault codes "HU" or "LU" on 5V4460's built-in keypad display, dependent whether the bus voltage current is too high or low.
The overtemperature fault, symbolized by the fault code "OH" on 5V4460's built-in keypad display
The overspeed fault, symbolized by the fault code "OSP" on 5V4460's built-in keypad display
and many others, accessible through Reliance Electrics' Software Start-Up and Reference Manual D2-3359-6

Frequently Asked Questions about 5V4460

What are the buttons on 5V4460's keypad/display?

On the right hand side of 5V4460's keypad/dispay are up and down arrow keys, an "AUTO/MAN" button, a "FORWARD/REVERSE" button, a program button, a "RUN/JOG" button, and an "ENTER" key. On the bottom left of 5V4460's keypad is a "STOP/RESET" button and a "START" button, which are the more important keys on 5V4460.

How many power loss watts does 5V4460 have?

5V4460 has 180 power loss watts when 5V4460 operates at full load.

What type of connection is each terminal used for on 5V4460?

Terminals 1-3 on 5V4460 are for RS-232 connections. The encoder connections on 5V4460 are terminals 4-9. Terminals 10 and 11 on 5V4460 are the analog output connections terminals. Terminals 12-15 on 5V4460 are analog speed/torque reference connections. Terminals 16-25 on 5V4460 are 24V DC digital input connections. Terminals 26 and 27 are the snubber resistor braking control connections on 5V4460. And terminals 28-31 on 5V4460 are status relay connections.

How do I find the manuals for 5V4460?

We'd be happy to send you the manuals for 5V4460. Send us a request for the manuals and we'll send the manuals for 5V4460 right to you. The manuals for 5V4460 are manuals D2-3359 and D2-3360, which are the Reliance GV3000 NEMA style software and hardware manuals.

Reviews For 5V4460

Internal Review

(5.0)

The 5V4460 model of Reliance Electric GV3000 drive is a premier choice of automated drive for those prioritizing damage protection, considering this model's resilient non-vented NEMA 4X/IP54 chassis ideal for indoor use. This model additionally features a relatively high input voltage rating at 380-460 VAC, considering the 5V4460's 5 HP rating. - AX Control Lead Technician.

Repair Services For 5V4460

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1462

Our highly skilled technicians can repair your 5V4460. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year

Learn More

5V4460 Manuals, White Papers, Data Sheets, and Troubleshooting

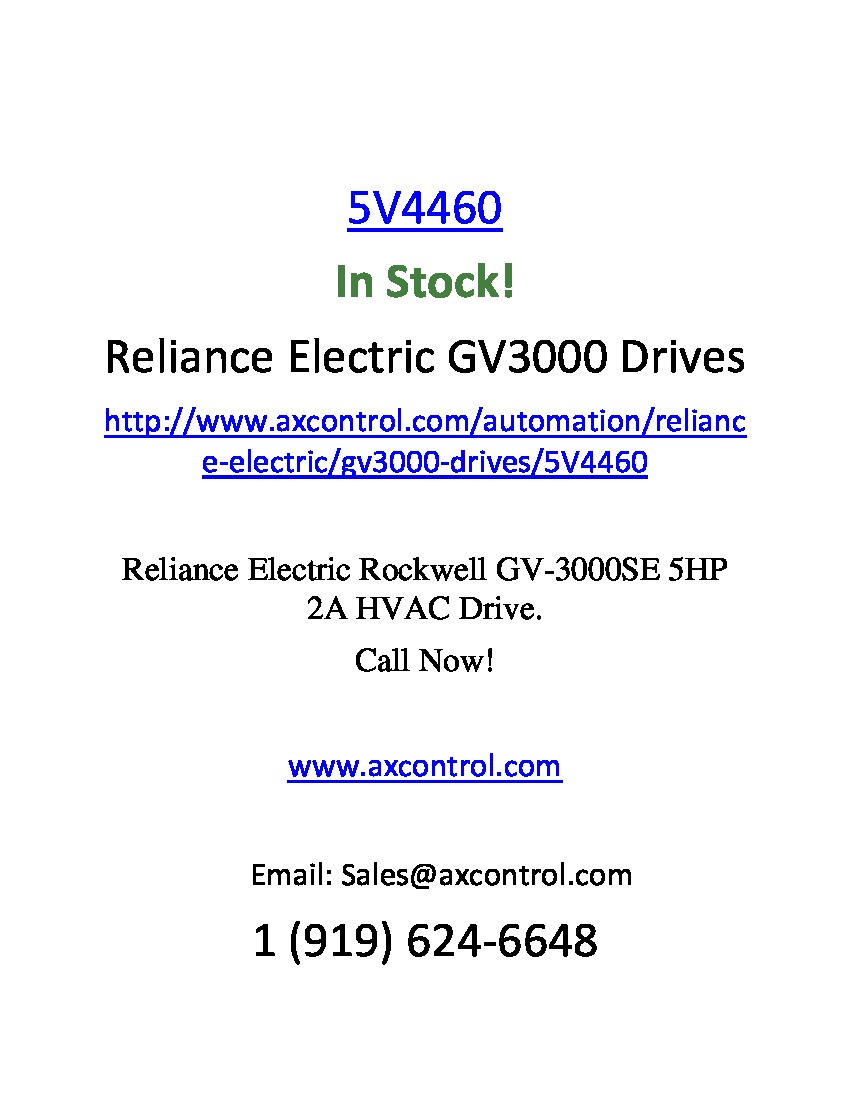

5v4460.pdf
