50V4260

Product Description

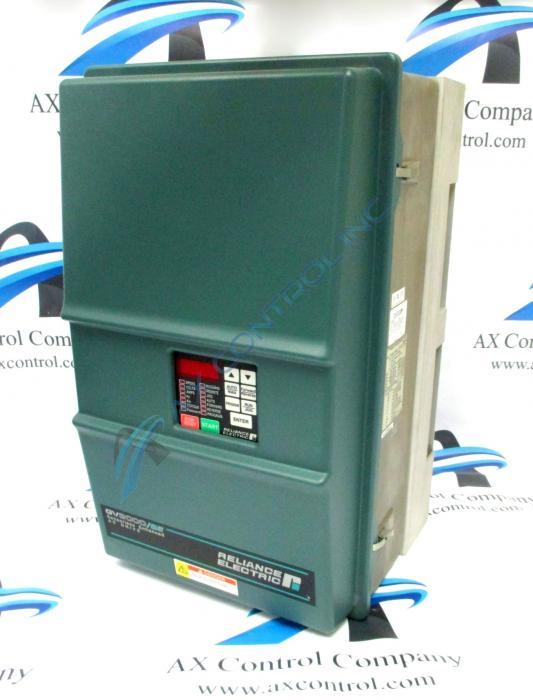

Reliance Electric was responsible for designing the 50V4260 unit, which is an AC drive that was made to be placed within the GV3000 series of drives. Most of the time, AX Control will have the 50V4260 AC drive in stock despite the fact that it is no longer being produced by the original equipment manufacturer. If you would like to find out whether or not we have the 50V4260 AC drive currently in stock, this information if helpfully shown on our website.

The 50V4260 AC drive uses either Vector or V/Hz selected regulation and has a horsepower rating of 50 HP. The input Amps for this device is rated at 72.0 A and the input kVA for this device is rated at 57.3 kVA. The output Amps for this device is rated at 67.0 A across the board. Whenever the 50V4260 AC drive is operating at Full Load, the power loss Wattage is rated at 1200 W.

The 50V4260 AC drive has a NEMA enclosure rating of 12. The NEMA 12 enclosure rating is meant to be used in indoor environments that require an enclosure that will protect the drive from any dust or liquids that can otherwise be damaging to the device itself.

Internally, the 50V4260 AC drive has a regulator printed circuit board, a power supply printed circuit board, a power printed circuit board, and a gate driver printed circuit board. There is also an internal fan assembly, a diode bridge, bus capacitors, an IGBT module, and a wire harness.
