Product Description

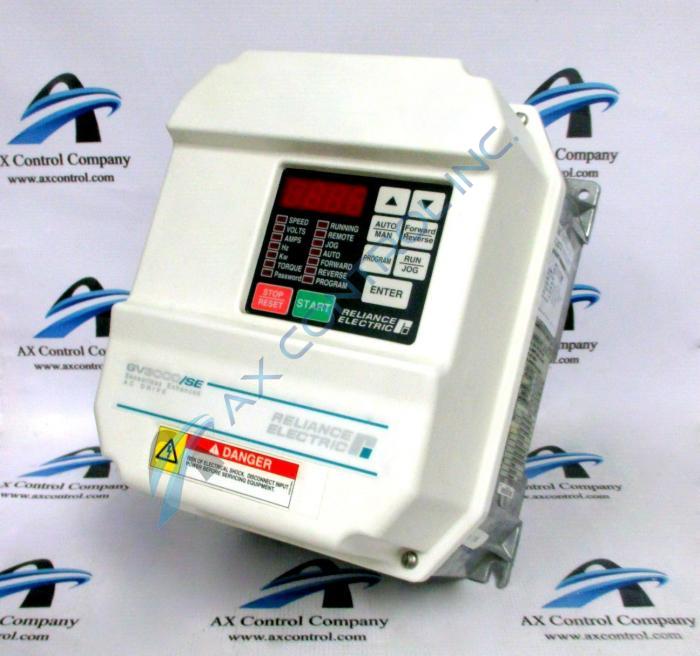

The 3V2460 is a Reliance Electric 3HP 200-230VAC Drive made for the GV3000/SE series. This power module may have also been produced by Baldor Reliance or ABB.
The 3V2460 is considered to be a PWM (pulse-width-modulation) drive. It has the ability to swap its general-purpose (V/Hz) regulation to vector regulation. This is important because with vector regulation the drive has the power to have a burst of output current equaling to 150% for 1 minute. This drive is 200-230 VAC 50/60HZ and 5.5 KVA. It has a power loss wattage of 140. It has a maximum output amperage of 12.3 and a max input of 13.8A. This drive uses a 20A rated AC fuse.
The 3V2460 is encased within a NEMA 4X/12 rated enclosure. This enclosure shares the qualities of both NEMA 4X and 12 enclosures. The most important thing a user should know about this enclosure is that it is not vented, and it is meant to be in environments that need a water/dust-tight enclosure. Be sure to keep this drive away from corrosive materials and in a clean, cool, and dry environment. This enclosure is not meant for outdoor usage. This enclosure is 222.3 mm wide, 199.9 mm thick, and 280.7 mm tall. It weighs roughly 6.4 KG.
The enclosure protects several internal drive components on the 3V2460. These include but are not limited to a keypad that has a mounting bracket, two fan assemblies (one internal), a regulator PCB, a PISC board, and a GVPB PCB.
