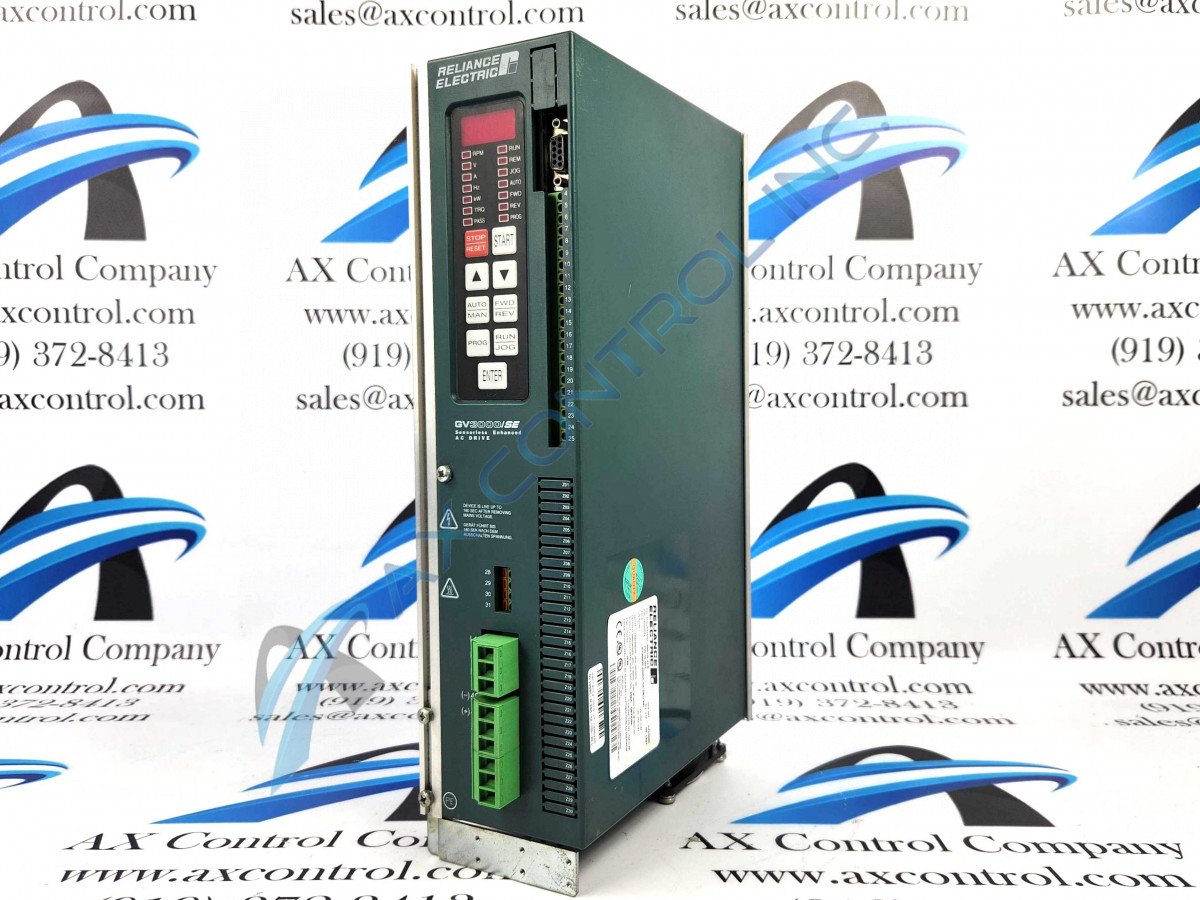

Drive number 38ER4060 is a bookshelf drive that operates on an amperage of 3.8. The input amperage of this specific model is six. Please ensure that when mounting the model none of the wires get in the way to help ensure that nothing hinders the performance of the drive.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 38ER4060 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 38ER4060
  • SKU: 38ER4060RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

38ER4060 Technical Specifications

Transportation Temperature Range -13 to 158°F
Speed Control Range 1:600 with 1024 PPR
Service Factor 1.0
Torque Control Response 180 to 220 Hz
Motor Poles Rating 2, 4, 6, or 8 Poles
Displacement Power Factor 0.96
Analog Speed/Trim Reference 16 ms at V/Hz Regulation or 5 ms at Vector Regulation
Terminals for Speed Reference Input 12-15
Remote Operator Control Wire Length Up to 303 meters (1000 ft) from the Drive

Product Description

Designed with an IP20 enclosure rating the 38ER4060 bookshelf drive is protected against solid objects larger than just under half an inch or twelve millimeters, indicated by the first number, which is two, in the enclosure rating. The zero in the enclosure rating denotes that the enclosure will not be watertight. It is vital to the operation of the 38ER4060 bookshelf drive that the user notes that the drive is rated for being used in larger, user-supplied enclosures, such as a cabinet.

The amperage for this drive is 3.8 which can help the user understand what the primary components of this drive are. The main components of the 38ER4060 drive are a fan, a keypad/display, a power and regulator PCB, and an output relay terminal strip. The fan is located towards the bottom of the drive, with the keypad/display on the front panel so as to help users operate and configure the drive. There are twenty-two terminals on the terminal strip which use several different connection types. The connections associated with this model are digital input connections for the 24 VDC in terminals 16-25, encoder connections in terminals 4-9, analog speed/torque reference connections in terminals 12-15, and finally analog output connections in terminals 10-11. For the full comprehensive list of each connection type for each terminal refer to Figure 2.9 in the D2-347-3 Instruction Manual.

During the operation of the 38ER4060 drive are motor lead lengths that can help limit the noises and line disturbances, to help eliminate the disturbances it is highly recommended that the lead length be no greater than two hundred and fifty feet, anything greater than two hundred and fifty feet will cause more nuisance trips to occur due to the capacitive current flow to ground.

Frequently Asked Questions about 38ER4060

What is the carrier frequency for 38ER4060?
38ER4060 has a 2 kHz carrier frequency. 38ER4060 has 3.8 volts per hertz when 38ER4060 is at a carrier frequency of 2 kHz.
What does it mean when the "FUE" fault code appears on 38ER4060?
If the "FUE" fault code error appears on 38ER4060, it means a fatal fault occurred on 38ER4060 before 38ER4060 lost power. Contact us for help on troubleshooting your 38ER4060 at this point in time and observe the 38ER4060 to make sure no other faults have occurred.
What is the input KVA on 38ER4060?
38ER4060 has 4.8KVA input.
What does the IP20 enclosure rating on 38ER4060 mean?
The '2' in the IP20 enclosure rating on 38ER4060 indicates 38ER4060 is protected against solid objects greater than 12mm. THe '0' in IP20 on 38ER4060 indicates the enclosure on 38ER4060 is not water-tight.
