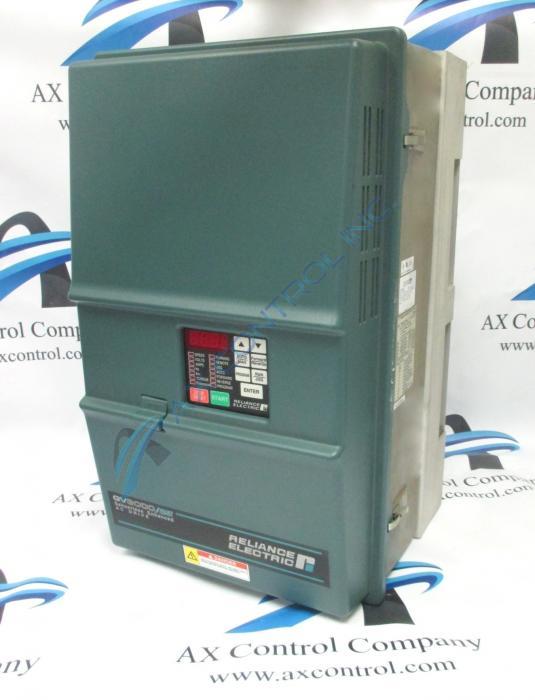

Reliance GV3000/SE 25G4260 25HP Horse Power V/Hz or Vector

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 25G4160 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 25G4160
  • SKU: 25G4160RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

25G4160 Technical Specifications

Manufacturer Reliance Electric
Series GV3000
Part Number 25G4160
HP 25 HP
Input Voltage 380-460 VAC
Enclosure Type 1/IP20
Keypad/Display Built-In Keypad
Phase 3 Phase
Hz 50/60Hz
Instruction Manual D2-3359 & D2-3360

Product Description

The 25G4160 is a Reliance Electric GV3000/SE 25HP Drive. This part may have also been in production under the ABB and Baldor Electric production lines.

The 25G4160 is a 3-Phase 50/60Hz 29.5 KVA drive that has the ability to use either vector regulation or V/Hz regulation. Most drives use the V/Hz type of regulation for their standard means of operation. However, if the user does swap to vector regulation it is possible to have an output current capacity of 150% for 1 minute. The input voltage for this device is 380-460 VAC (+/-10%). It is rated at 37 input amps and 30.4 output amps. It has a wattage of 600 for its full load power loss watts.

The 25G4160 is protected by a NEMA 1 style chassis. It is meant for indoor use only and has a small door on the front where the user can access an RS-232 serial communications port.  This chassis is covering many different main drive components. These include a keypad/display, gate driver, IGBT PCB, diode bridge, two fan assemblies (one internal) with a wire harness, regulator PCB, input capacitors with a capacitor card, current feedback PCB, power supply, and a power PCB.

There is a keypad on the 25G4160. This keypad and display have many different components on it. There are many LEDs that indicated the drive status and mode. There are 14 total single LEDS and 1 7-segment LED that has 4-digits. This keypad also has a green start key and a red stop/reset key. There are two arrow keys and 5 keys that are labeled run/jog, program, enter, auto/man, and forward/reverse.

Frequently Asked Questions about 25G4160

How many power loss watts does 25G4160 have?
25G4160 has 600 power loss watts when 25G4160 is at full load.
What types of parameters does 25G4160 have?
25G4160 has three types of parameters. 25G4160 has configurable parameters, tunable parameters, and read only parameters.The software manual for 25G4160 will give you the most information about parameters on 25G4160. The manual provides parameters number, name, description, range, default setting, and other parameters to refer to on 25G4160. For a copy of the 25G4160 manual, send us a request for Manual D2-3359.
How are fatal fault codes distinguished on a reliance 25G4160?
Fatal fault codes on 25G4160 are distiguished by the letter "F" for fault, preceding the code. In some instances, fatal fault codes can be reset on 25G4160 and 25G4160 can be re-started.
Where is a breakdown of 25G4160 and other GV3000 model numbers?
You can find a breakdown of 25G4160 and other GV3000 model numbers in section 2.1 of the hardware manual for 25G4160, Manual D2-3360. For a copy of the manual, send us a request for either 25G4160 manual.

Repair Services For 25G4160

Type Lead Time Price Action
Repair Service 1-2 weeks $1191

Our highly skilled technicians can repair your 25G4160. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
