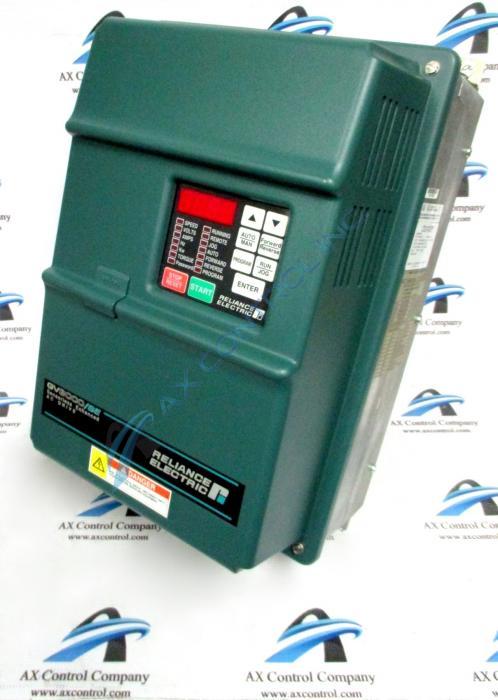

Reliance GV3000/SE 20V4260 20HP NEMA Drive

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 20V4260 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 20V4260
  • SKU: 20V4260RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

20V4260 Technical Specifications

Manufacturer Reliance Electric
Series GV3000
Part Number 20V4260
HP 20 HP
Input Voltage 380-460 VAC
Enclosure NEMA 12/IP52
Keypad/Display Built-In Keypad
Phase 3 Phase
kW 15.0kW
Hz 50/60Hz
Instruction Manual D2-3359 & D2-3360

Product Description

The 20V4260 was initially created by Reliance Electric as a 20HP 3-Phase GV3000/SE Drive. Baldor Reliance or ABB could have also produced and sold this drive depending on what years it was in production.

The 20V4260 is capable of using either universal V/Hz or vector regulation. When the drive uses the vector regulation it has the capacity to have an output current of 150% for one minute. The drive has an input amperage of 32.7 and an output amperage of 27.A. It is 26.1 KVA and has a full load power loss wattage of 600. It has an input of 32.7 amps and an output of 27 amps. It is advisable to use a fuse that is rated 60A on this drive.

The 20V4260 is entirely protected in a NEMA 12 type enclosure. It is dust and drip-tight and should only be used in indoor environments. This drive and its enclosure are 288 mm wide, 238.1 mm thick, and 463 mm tall. The entire setup weighs 15.75 kg.  Inside of this drive are many different PCBs and other components. There is a fan assembly, a fan wire harness, a diode bridge, IGBT module, keypad with mounting bracket, regulator PCB, internal fan assembly, power supply, gate driver, power board, capacitor PCB, and input capacitors. The regulator board on the drive uses its microprocessors to control the drive’s operation boundaries. It is attached to the mounting brackets on the keypad.  The keypad on the drive’s faceplate shows the user display that is connected to the regulator board.

Frequently Asked Questions about 20V4260

How many input and output amps does 20V4260 have?
20V4260 has 32.7 input amps. 20V4260 has 27.0 output amps.
What is the accel time on 20V4260?
20V4260 has a 20 second accel time. To adjust the accel time on 20V4260, change parameter P.001, the accel time parameter on 20V4260, which has a range of 1.0-999.9.
What are the most common fault codes to appear on 20V4260?
Several fault code errors can occur on 20V4260. The most common fault codes 20V4260 will display are: OC, OCA, OCD, HU, LU, OL, OH, FL, OSP, PH, and OF. The first three of those fault codes on 20V4260 are overcurrent fault errors. The next two fault codes deal with bus voltage and the other common fault codes on 20V4260 deal with other main problems 20V4260 may have.
Where can I obtain the manuals for 20V4260?
We can send you links to the manuals for 20V4260. The manuals for 20V4260 are the GV3000 NEMA style software and hardware manuals - Manuals D2-3359 and D2-3360.
