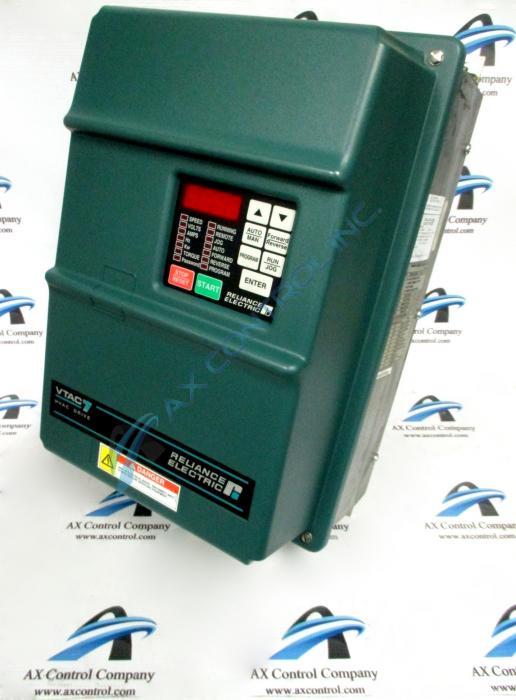

The 20V4250 GV3000 20HP AC Drive

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 20V4250 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 20V4250
SKU: RE-9453

Manufacturer: Reliance Electric
Series: GV3000 Drives

Description
Repairs
Warranty
Manuals

20V4250 Technical Specifications

Manufacturer	Reliance Electric
Series	GV3000
Part Number	20V4250
HP	20 HP
Input Voltage	380-460 VAC
Enclosure	Type 12/IP52
Keypad/Display	Built-In Keypad
Phase	3 Phase
kW	15.0kW
Hz	50/60Hz
Instruction Manual	D2-3339 & D2-3340

About the 20V4250

The 20V4250 by Reliance Electric is a 20HP Drive that was made to be used within the GV3000 product line, which is a sequence of drives and replacement parts. It may have been mass-produced by ABB or Baldor Reliance. This is version 5.0 of this particular drive and is now part of the Reliance legacy systems. AX Control might still have the 20V4250 in stock, however, so please consult our website for the availability of this product. The 20V4250 is an AC PWM (pulse-width-modulation) drive. It was built to:

modify and adjust vector frequencies and general-purpose regulation
provide settings within a series of responses that can maintain a standard motor torque to zero speed
in a NEMA 12 type enclosure
for indoor use and does not have air vents
to be dust and drip-tight.

Attached 20V4250 GV3000 20HP AC Drive Components

This drive is 20.2 KVA, 50/60 Hz, and 380-460 VAC. It has a power loss of 600W. The 20V4250 is equipped with several physical modules that include:

two fan modules
a membrane switch
a printed regulator circuit board
a current feedback board
capacitors and a capacitor board
a diode bridge
a gate driver PCB

The regulator board on this drive comes equipped with an RS-232 connection, a terminal strip for user I/O, and analog input and output jumpers. This board connects to the drive by sliding into the bracket system on the keypad. The user can then run a connector from the keypad to the J9 connection port on the regulator.

Frequently Asked Questions about 20V4250

What does the enclosure rating on 20V4250 indicate?

20V4250 has a Type 12/IP52 enclosure rating. A type 12 or NEMA 12 enclosure indicates 20V4250 is meant for use in indoor environments that require a dust-tight/drip-tight enclosure. The IP52 part of 20V4250's enclosure indicates 20V4250 is protected from limited dust ingress, and 20V4250 is protected from water spray less than 15 degress from vertical.

How many power loss watts does 20V4250 have?

20V4250 has 600 power loss watts when 20V4250 is at full load.

What is an overcurrent fault code caused by on 20V4250?

The overcurrent fault on 20V4250 is a common fault on 20V4250 that has several fault causes. The overcurrent fault code error is "OC" and the "OC" fault code on 20V4250 can be caused by: output phase-to-phase short on 20V4250, bus voltage line-to-line, ground fault, momentary overload on 20V4250's motor, torque boost, motor unknown to regulator, parameter settings when 20V4250 is in vector regulation, or pulse tach wired incorrecting on 20V4250. To find the corrective action for the multiple fault causes for an overcurrent fault on 20V4250, view table 5.2 in the software manual for 20V4250, Manual D2-3339. The table in the manual provides a corrective action for each possible fault cause of an "OC" fault on 20V4250.

What is each manual for 20V4250?

Manual D2-3339 is the software manual for 20V4250 and Manual D2-3340 is the hardware manual for 20V4250. Each manual helps with 20V4250 in multiple ways, but you can work with each manual together to gain the best information when working with 20V4250. For a copy of either manual, send us a request for a Reliance 20V4250 manual.
