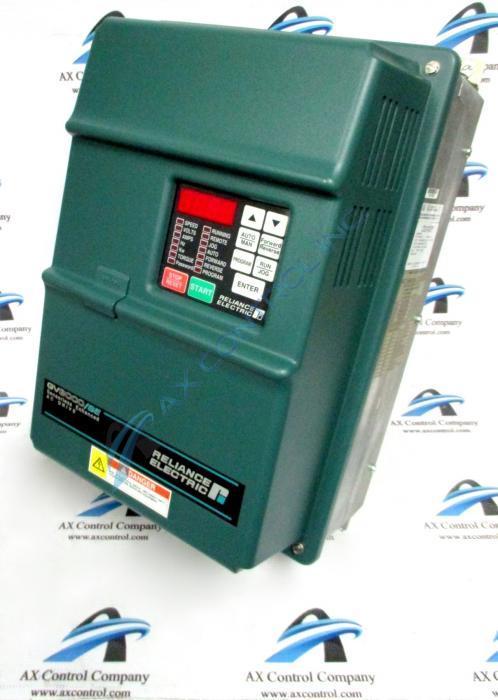

The 15V4151 model of Reliance Electric's GV3000 legacy series, this 11.2kW, 15 HP 3-phase drive comes standard with a NEMA 1-type enclosure, 50/60Hz, 380-460 input VAC, and a regulator version of 5.1.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 15V4151 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 15V4151
  • SKU: 15V4151RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

15V4151 Technical Specifications

Manufacturer Reliance Electric
Series GV3000
Part Number 15V4151
HP 15 HP
Input Voltage 380-460 VAC
Enclosure NEMA 1
Keypad/Display Built-In Keypad
Phase 3 Phase
kW 11.2kW
Hz 50/60Hz
Instruction Manual D2-3359 & D2-3360

About the 15V4151

15V4151 is a GV3000 series drive that is manufactured by Reliance Electric. The dimensions of this drive are 288.0 mm x 463.0 mm x 223.0 mm x 442.0 mm x 238.0 mm. The weight of this drive is 15.9 kg. The recommended power wiring sizes are 6 to 3 AWG. The user supplied mounting bolts and washers must be M8 or M10 (5/16” or â…œ”). There are 4 mounting holes provided on the drive. The keypad/display is used to program and operate the drive. The keypad includes a display screen, a keypad (Enter key, Auto/Man key, Run/Jog key, Program key, Forward/Reverse key, Start key, Stop/Reset key), drive status LEDs (Running, Remote, Jog, Auto, Forward, Reverse, Program), the monitor mode LEDs (Speed, Volts, Amps, Hz, Kw, Torque) and the password LED.

This GV3000 series drive is unique in a number of important specifications. The 15V4151 model uniquely includes:

  • 15 HP
  • 380-460 VAC input voltage
  • 11.2kW
  • 50/60Hz
  • a built-in keypad
  • a NEMA 1-type enclosed system

The drive kit options for this series include: the snubber resistor braking kit, the motor encoder cable kit, the ControlNet network option board, the Interbus-S network option board, the AutoMax network option board, the AutoMax RS-232 adapter cable, the super remote meter interface, the DeviceNet network option board, the operator interface module, the CS3000 control and configuration software, the CS3000 RS-232 computer cable, the 115 VDC interface option board, and the PROFIBUS interface board. If you have any questions, please feel free to contact AX Control. If you would like a price quote, click “Request a Quote” above. If you would like a repair, click “Request Repair” above.

Frequently Asked Questions about 15V4151

What are the overcurrent fault codes on 15V4151?
The overcurrent fault codes on a reliance 15V4151 are: OC, OCA, and OCD. Fault code "OC" is the fault for overcurrent when 15V4151 is at a steady-state. Fault "OCA" is the fault for overcurrent when 15V4151 is accelerating. Fault "OCD" is the fault for overcurrent when 15V4151 is decelerating.
What is the accel time on a reliance 15V4151?
15V4151 has a 20 second accel time, but 15V4151's accel time can be adjusted with parameter P.001, the accel time parameter. This parameter has a parameter range of 1.0 to 999.9 on 15V4151.
Where is remote control on 15V4151?
Remote control on 15V4151 is located at 15V4151's terminal block inputs. To set 15V4151 to operate at remote control, adjust parameter P.0000 to rE.
How do I get the manuals for 15V4151?
We can send you links to the manuals for 15V4151. The manuals for 15V4151 are Manuals D2-3359 and D2-3360. These manuals are the software and hardware manuals for 15V4151 and the manuals will help greatly with 15V4151 operation.

Reviews For 15V4151

Internal Review
(5.0)

A solid indoor option considering its NEMA 1 chassis, the 15V4151 is an uncommon GV3000 legacy series drive we are very pleased to be able to stock. This drive functions well using an outdated 5.1 regulator version, but can be enhanced with several drive kit options available here for purchase at AXcontrol.com. - AX Control Lead Technician
