126ER4060

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
Reliance Electric Drive 126ER4060 has a keypad on the front with stop/reset and start keys. The voltage range is 380-460 VAC. The enclosure type associated with this model is NEMA 4x which is indoor only and NEMA 12.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 126ER4060 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 126ER4060
  • SKU: 126ER4060RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

126ER4060 Technical Specifications

Manufacturer Reliance Electric
Series GV3000
Part Number 126ER4060
HP 125 HP
Input Voltage 380-460 VAC
Enclosure IP20
Keypad/Display Built-In Keypad
Phase 3 Phase
Hz 60Hz

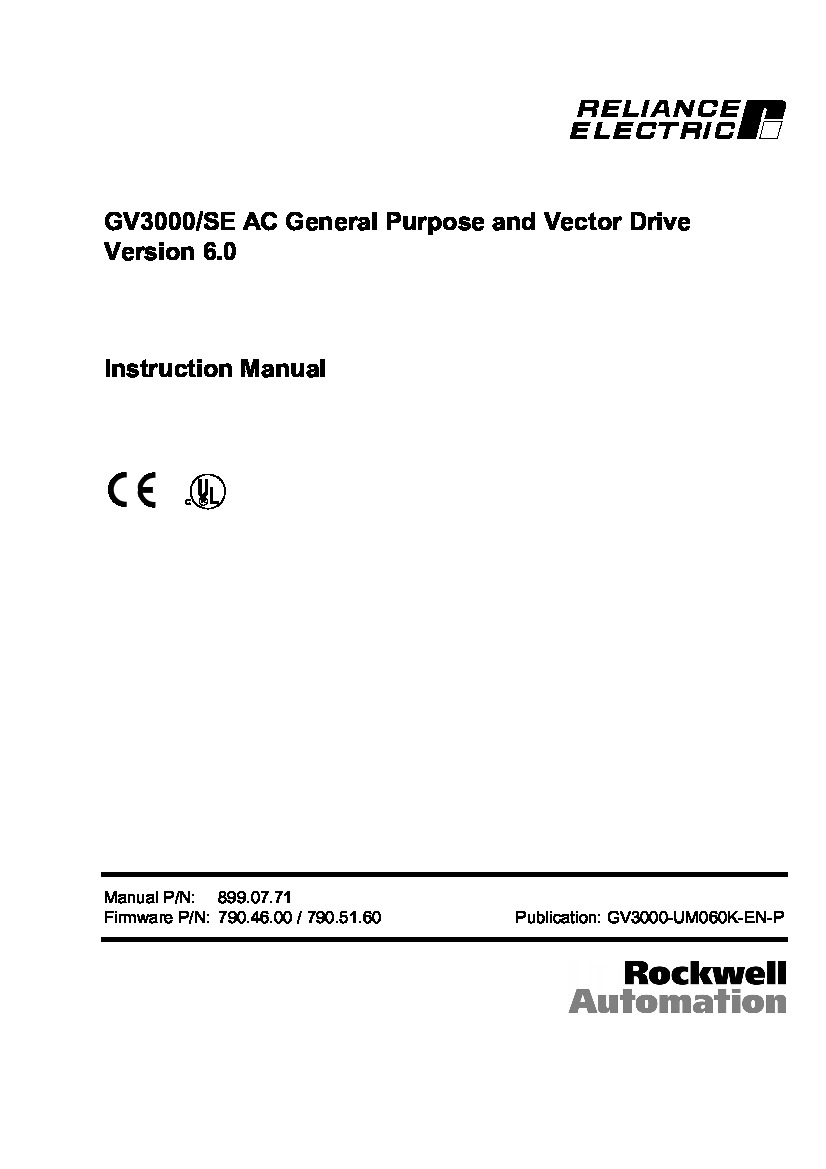

Instruction Manual D2-3359 & D2-3360

About the 126ER4060

Model number 126ER4060 is a production of Reliance Electric as part of the GV3000 AC Drives series. When this drive is being operated it will operate on a power supply range of three hundred and eight to four hundred and sixty volts of alternating current; this model has a regulator version that is either a V/Hz or Vector with 6.0 firmware.

When installing, or more specifically mounting the 126ER4060 model should be mounted vertically using the four mounting holes that are on the model. The washers and bolts required to mount the model completely depend on the horsepower of the drive. The horsepower associated with this model is one hundred and twenty-five therefore the washers and bolts needed are M8 or five-sixteenths of an inch.

In some applications during the operation of a GV3000 model such as this, the drive can be programmed to provide two different types of operational stop types; the two operational stop types are ramp-to-rest or coast-to-rest operational stops. The operational stops can be performed without physical separation of the power from the motor occurs. Please note that there are different categories for each of these operational stops, the category for the coast-to-rest operational stop is category zero with the ramp-to-rest stop being category one. There is an additional stop that can be applied to the 126ER4060 model which is labeled as a category two stop which will allow for power to be maintained in connection to the motor at a speed of zero.

Frequently Asked Questions about 126ER4060

How do you adjust the number of motor poles in 126ER4060?
To adjust the number of poles in the 126ER4060 motor, adjust parameter U.002, the Motor Poles Parameter. The default setting of this parameter on 126ER4060 is 4 motor poles though the parameter has a range of 2, 4, 6, or 8 poles. This parameter is a configurable parameter on 126ER4060. When adjusting this parameter, you can also refer to the motor nameplate base frequency parameter, parameter U.003, or the motor nameplate RPM parameter, parameter U.005.
Where can I get help with troubleshooting my 126ER4060?
The hardware reference manual for 126ER4060, Manual D2-3360, will help greatly with troubleshooting 126ER4060. The manual has a chapter dedicated to troubleshooting 126ER4060. The troubleshooting chapter in the manual includes information on test equipment needed for troubleshooting, alarms and faults on 126ER4060, replacement parts for 126ER4060, etc. For more troubleshooting help, contact our experts. For a copy of the hardware manual to help with troubleshooting 126ER4060, send us a request for Manual D2-3360.
What is 126ER4060's input KVA?
126ER4060 has a 12.7 input KVA.
How many power loss watts does 126ER4060 have?
126ER4060 has 210 power loss watts.

Reviews For 126ER4060

Internal Review
(5.0)

This module is equipped with a slip compensation parameter which is used to improve the 126ER4060 models' motor speed regulation. This parameter is turnable and has a range of 0.0% to 10.0% of a base frequency. - AX Control Tech Team
