Reliance 10V4260 10HP NEMA 12 Drive

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More

Sell Surplus: Have a 10V4260 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

10V4260

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
Reliance 10V4260 10HP NEMA 12 Drive

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More

Sell Surplus: Have a 10V4260 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

10V4260 Technical Specifications

Enclosure NEMA 12
HP 10 HP
Hz 60Hz
Input Voltage 380-460 VAC
Instruction Manual D2-3359 & D2-3360
Keypad/Display Built-In Keypad
Manufacturer Reliance Electric
Part Number 10V4260
Phase 3 Phase
Series GV3000

Product Description

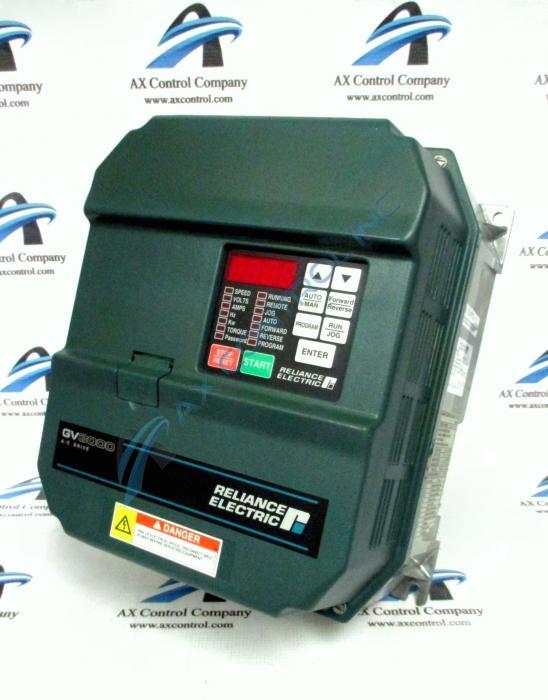

The 10V4260 is a 10HP 7.5kw 3-Phase Reliance Electric GV3000/SE AC Drive. This drive is 380-460 VAC. It has an input amperage of 16.8 and an output amperage of 14.2A. This drive has the ability to be rated for three different output frequencies; 2 kHz, 4 kHz, or 8kHz. It has a 250-power loss wattage for a full load. When you regulate the V/Hz the current has a 110% output capacity and the vector has a 150% output current capacity for a total of 1 minute. This drive weighs roughly 9kg. It is 280.6 mm wide, 338.4 mm tall, and 200 mm thick.  It has a 35A fuse rating.

The 10V4260 is protected by a NEMA 12 enclosure. The NEMA 12 is a dust-tight/drip-tight enclosure that is meant to be stored in inside environments. There are many important components contained within this enclosure that help to make up this drive. Some of these components include a keypad that has a bracket, a regulator card, a capacitor PCB, a current feedback PCB, an internal fan assembly, an IGBT module, a diode bridge, and a fan wire harness. The keypad on the drive is in front of the regulator PCB. This keypad has many different features on it with the primary feature being the user display that is a 7-segment 4-digit LED indicator. This LED shows the user various error codes and drive parameters and the values of those parameters. There are 14 LEDs that have the ability to show the status and operating mode of the drive.

Frequently Asked Questions about 10V4260

What are the output amps on 10V4260?
10V4260 has 14.2 output amps whether 10V4260 is at 2, 4, or 8 kHz carrier frequency.
Which parameter on 10V4260 configures the V/Hz ratio?
Paramer H.001, the motor nameplate base frequency parameter, is the parameter on 10V4260 that configures the V/Hz ratio. This parameter on 10V4260 has a parameter range of 30 to 200Hz, but for 10V4260, the parameter is set to 60Hz.
How should I plan before installing my 10V4260?
For help with planning before installation of your 10V4260, it's best to view chapter 3 in the hardware manual for 10V4260, Manual D2-3360. Chapter 3 in the manual is the "planning before installation" chapter for GV3000 drives. This chapter in the hardware manual for 10V4260 will provide you with information on the installation site for 10V4260, wiring requirements for 10V4260, meeting specifications with 10V4260, and verifying 10V4260's output current. Chapter 8 in the hardware manual will also help with installing 10V4260 as it is the chapter in the manual for completing the installation.
Where can I find a list of fault codes that may appear on 10V4260?
You can find a list of fault codes for 10V4260 in the software manual that goes with 10V4260. The manual is Manual D2-3359 and the table in the manual provides you with fault codes, fault description, fault cause, and corrective action for the fault when occurred on a reliance 10V4260.
