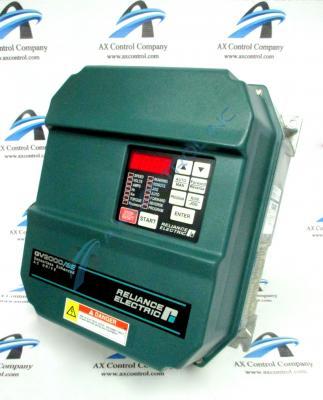

The 10 HP, 60Hz 10V2250 drive is a member of Reliance Electrics' GV3000 series, and features a 3 phase system with a NEMA 12-type enclosure, a built-in keypad, 200-230 VAC, and a kilo wattage rating of 12.4 kW.



Sell Surplus: Have a 10V2250 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 10V2250
  • SKU: 10V2250RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

10V2250 Technical Specifications

Manufacturer Reliance Electric
Series GV3000
Part Number 10V2250
HP 10 HP
Input Voltage 200-230 VAC
Enclosure NEMA 12
Keypad/Display Built-In Keypad
Phase 3 Phase
kW 12.4kW
Hz 60Hz
Instruction Manual D2-3362 & D2-3363

Product Description

Reliance Electric released the 10V2250 as a portion of the GV3000 series of AC Drives. This drive is 10HP and 50/60Hz. This drive was possibly also produced and sold by Baldor Reliance or ABB. It depends on when the drive was actually being mass-produced. This is version 5.0 of this drive and as a result, is no longer being supported by Reliance or the other companies because it has been replaced by newer models. AX Control does still attempt to keep this version of this drive in stock.

The 10V2250 is 15.5 KVA and 200-230 VAC. This drive has a maximum input amps of 39 A and a max output amps of 35 A. It also has a full load power loss of around 250W. This drive feature dual regulation capabilities including both V/Hz and/or vector regulation. When using typical V/Hz regulation, this drive can maintain a 110% output current. When the drive uses vector regulation, it is capable of a 150% overload that can be achieved for 1 minute.

The 10V2250 is surrounded by a NEMA 12 type enclosure. There are no vents on this enclosure and should be used in indoor environments that need a dust/drip-tight enclosure. This chassis is enclosing the interior drive components. These pieces include a keypad (membrane switch with a bracket), a duo of fan assemblies, a GVPB board, PISC PCB, and a regulator board.  The keypad has a bracket that is attached to it. This bracket can house the regulator board directly behind the keypad so that the LED display on the regulator can be seen on the keypad.

It is important to note that as with many refurbished or vintage automated drives, the 10V2250 AC drive user may have to work through an occasional function fault. The 10V2250 AC drive specifically may be prone to a singular fault in the overcurrent at DC braking fault. This fault occurs due to an inflated DC voltage present in the drive, and can be corrected by checking the parameters H.006 and H.007 for proper settings.

Frequently Asked Questions about 10V2250

What's 10V2250's input KVA?
10V2250 has 15.5 KVA input.
What is the short circuit rating on a reliance 10V2250?
10V2250 has a short circuit sym RMS rating of 30,000 amps.
What are the maximum input and output amps for 10V2250?
10V2250 has 39 max input amps when 10V2250 is at 200-230 VAC. 10V2250 has 35 output amps when 10V2250 is at 180-230 VAC.

Reviews For 10V2250

Internal Review

This ten-volt model only contributes to the sterling reputation of Reliance Electrics' GV3000 series of automated drives. A versatile option, this three-phase AC drive flaunts a dual-regulation system which allows for both V/Hz and vector regulation. All internal components of this drive are protected under a NEMA 12-type chassis, making this drive ideal for your indoor automation needs. - AX Control Lead Technician

Repair Services For 10V2250

Type Lead Time Price Action
Repair Service 1-2 weeks $1487

Our highly skilled technicians can repair your 10V2250. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
