Reliance Electric GV-3000 GV3000/SE 100HP VFD Drive.

AVAILABILITY:

CALL FOR AVAILABILITY

2 Year Warranty: Learn More
Sell Surplus: Have a 100V4060 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 100V4060
  • SKU: 100V4060RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

100V4060

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.11 (9)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.11 (9)
  • Click a star to rate this product
Reliance Electric GV-3000 GV3000/SE 100HP VFD Drive.

AVAILABILITY:

CALL FOR AVAILABILITY

2 Year Warranty: Learn More
Sell Surplus: Have a 100V4060 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 100V4060
  • SKU: 100V4060RE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

100V4060 Technical Specifications

Enclosure NEMA 1
HP 100 HP
Hz 60Hz
Input Voltage 380-460 VAC
Instruction Manual D2-3391
Keypad/Display Built-In Keypad
Manufacturer Reliance Electric
Part Number 100V4060
Phase 3 Phase
Series GV3000

Product Description

The 100V4060 is a 460 VAC 100 HP Reliance Electric GV3000/SE AC Drive.  This drive is rated 60 Hz and 75 KW. The drive is 3-Phase and is encased in a NEMA 1 enclosure. This unit has an IEC enclosure rating of IP00.

The 100V4060 is typically used to control AC induction motors. It comes with a PWM Inverter that has IGBTs. It has the ability to swap between 3 frequencies. These frequencies are 2 kHz, 4 kHz, and 8 kHz. It has an AC line frequency of 48 Hz to 62 Hz.  It has an AX line voltage of +/- 10% of the rated input voltage. This drive is 634/696 mm tall, 235 mm wide, and 354 mm deep. It weighs roughly 35 kg. This drive should only be used in temperatures between 32-131 degrees Fahrenheit if it is panel mounted.

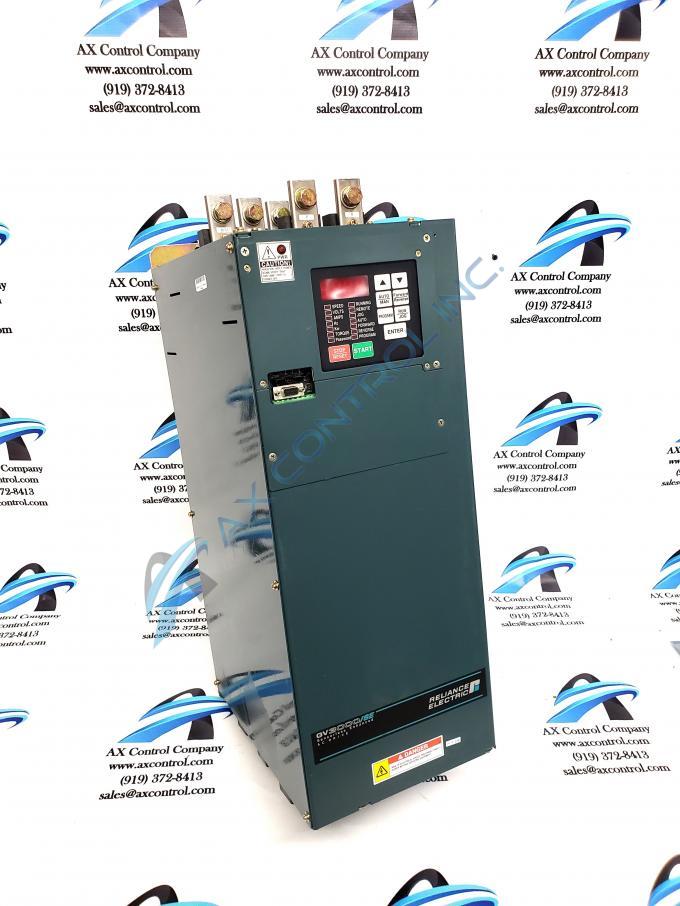

On the front of the 100V4060, you can see the built-in keypad and the RS-232 connector that comes on the regulator board. The keypad has a 7-segment LED display that shows error codes. It has 14 LED indicators that are labeled speed, volts, amps, Hz, kW, torque, password, running, remote, jog, auto, forward, reverse, and program. There is a large red stop/reset button and a large green start button. There are keys that are labeled auto/man, forward/reverse, program, run/jog, and enter and two arrow keys.  There is a large red PWR LED that is surrounded by a warning label. There are air vents at the bottom of the drive which promotes air circulation to the internal circuitry of the drive.

Frequently Asked Questions about 100V4060

What are the motor nameplate amps on 100V4060?
100V4060 has 124 motor nameplate amps.
What is the carrier frequency parameter for 100V4060?
The carrier frequency parameter on 100V4060 is P.047. This parameter on 100V4060 has a default setting of 4kHz. 100V4060 can use any carrier frequency of 2, 4, or 8 kHz, but when 8kHz is used on 100V4060, the 100V4060's rated output current is limited to 80%.
What is the magnetizing current on 100V4060?
The default magnetizing current on 100V4060 is 46.0.
Which manual goes with 100V4060?
Manual D2-3391 goes with 100V4060. Manual D2-3391 is the GV3000/SE 460 VAC General Purpose and Vector Duty Drive M/Ns: 75V4060-200V4060 Software Start-Up and Reference Manual Version 6.06. The manual is a Reliance manual and the manual specifically identifies 100V4060.

Repair Services For 100V4060

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your 100V4060. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
