Manufactured by Reliance Electric, the 0-56936-103AA model is one of the communication option boards part of the GV3000 series. This model is labeled as a ControlNet Network Communication Option Board. This model can be used in any of the available GV3000 models.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 0-56936-103AA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 0-56936-103AA
  • SKU: 056936103AARE
  • Manufacturer: Reliance Electric
  • Series: GV3000 Drives

0-56936-103AA Technical Specifications

Part Number 0-56936-103AA
Series GV3000 Drives
Manufacturer Reliance Electric
Model Type Option Board
Board Description ControlNet Network Communication Option Board

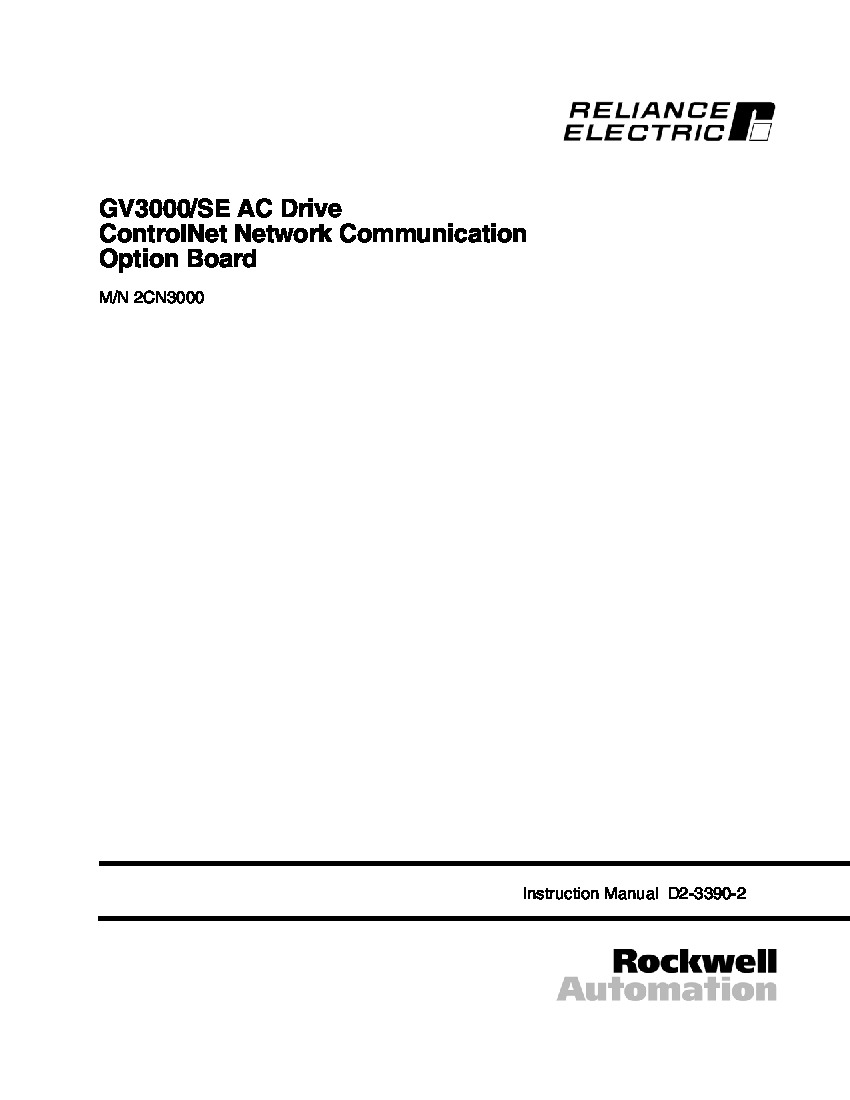

Manuals D2-3360 and D2-3390

About the 0-56936-103AA

Manufactured by Reliance Electric for the GV3000 series, the 0-56936-103AA model is labeled as an option board. This model is a ControlNet Network Communication Option Board. When the model is being used within the system, it can monitor and operate the chosen GV3000/SE drive over the ControlNet network. During the standard operation of the GV3000 drive, it can be completely controlled using the Network Option board. The only connections required are a hardwired emergency stop, three-phase input and output power wiring, and a network interface connection. Any start, reset, store, and fault codes, plus control of the drive, can be performed over the ControlNet network.

The purpose of the 0-56936-103AA model is to mount within the GV3000 drives and connect to the unit's regulator board through a ribbon cable. All power needed to operate the board will come from the drive's power supply. This board will also add flash memory to the drive and can aid with easy updates of the board to the latest firmware revisions without needing to remove the board from the drive. The 0-56936-103AA board also has an RS-232C serial port allowing the user to connect a serial programming device to the Network option board for updating the flash memory on the board. For more information regarding the operation between the 0-56936-103AA and the GV3000 drives, refer to the D2-3390 and D2-3360 manuals from Reliance Electric.

Frequently Asked Questions about 0-56936-103AA

What is the 0-56936-103AA model?

The 0-56936-103AA model is an option board used with the ControlNet Network. It will be mounted within the GV3000 drives and will make the GV3000 drive a node on the ControlNet network.

Other than the serial port connections on the 0-56936-103AA model, are there any other connections?

There are two BNC connectors on the 0-56936-103AA model, which provides redundant communications. A programming device can also be connected to access nodes through a network access port with an RJ-45 connector.

Reviews For 0-56936-103AA

Internal Review
(5.0)

The 0-56936-103AA model is the ControlNet Network option board used with the GV3000 drives; there is another unit similar to this board used with FlexPak 3000 and WebPak 3000 drives. This model can be used with any of the GV3000 drives with any firmware versions, while the other ControlNet Network option board for the FlexPak 3000 and WebPak 3000 drives requires a specification firmware version to be used with those units, as such, this model is superior compared to other ControlNet Network option boards. - AX Control Tech
