20HP 21KVA 3-Phase Drive



Sell Surplus: Have a 2GU41020 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 2GU41020
  • SKU: 2GU41020RE
  • Manufacturer: Reliance Electric
  • Series: GP-2000 Drives

2GU41020 Technical Specifications

Manufacturer Reliance Electric
Series GP-2000
Part Number 2GU41020
HP 20 HP
Input Voltage 460 VAC
Enclosure NEMA 1 or Chassis
Keypad/Display Built-In Keypad
Phase 3 Phase
Hz 50/60Hz
Labeling UL Listed, IEC Certified

Product Description

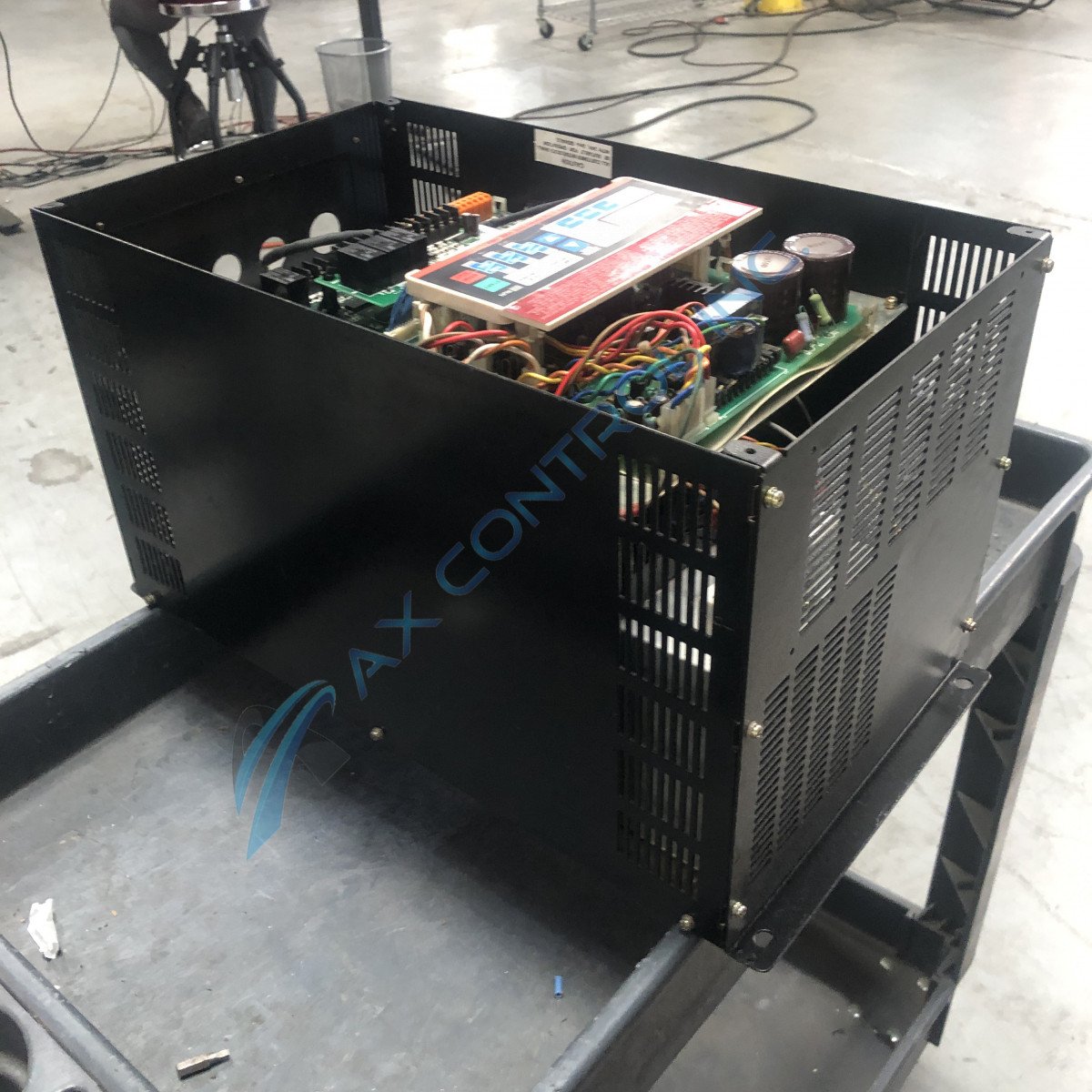

The 2GU41020 is a 3-Phase 20 HP Reliance Electric Drive. This drive may have also been mass-produced by Asea Brown Boveri or Baldor Reliance depending on what year it was in production. This drive is no longer being supported by any of these companies, but AX Control still tries to keep it in stock. Please refer to our website for product availability and shipping information.

The 2GU41020 is a 460V 50/60HZ AC GP2000 Drive that was created to partner with Reliance V*S series style motors. It typically goes with a 15KW/20HP motor. It has a drive input of 26.1 KVA and a max input of 32.7 amps. It also has a motor sine wave of 24.5 amps max and a maximum drive output of 27 amps. This drive comes standard in a NEMA 1, style 1 enclosure. This enclosure is 500 mm high, 279 mm wide, and 277 mm deep. It weighs roughly 25 kg.

The 2GU41020 has several features that come standard to this type of drive drive. It has an output short circuit protection and an electronic motor overload that is adjustable. It has a digital display that will detect and produce fault codes. It has an automatic and manual torque booster. There are three selectable preset speeds that come standard this drive. It has the ability to automatically reverse itself no matter what speed it is going. It has a constant or variable torque that has selectable voltage or hertz curves. It also comes standard with a 16-bit microprocessor.

Frequently Asked Questions about 2GU41020

How big is a Reliance Electric 2GU41020?
The 2GU41020 is 11.02 by 19.68 inches. The 2GU41020 weighs 55lbs.
What is the input current on the 2GU41020?
The input current on a 2GU41020 is 32.7 amps.
What is the inventory on the 2GU41020 drives?
We have both new surplus and surplus of reconditioned 2GU41020 drives at our facility. Our reconditioned 2GU41020 drives have been through a repair and recondition process that has made them operable again. Our new surplus of 2GU41020 drives often come from factory stock shelves.
Where can I find a manual for the Reliance Electric GP2000 2GU41020?
We are happy to send you the link to the GP2000 Instruction Manual. The manual was written by Reliance Electric and the manual provides instruction on installing, operating, and maintaining GP2000 drives.

Repair Services For 2GU41020

Type Lead Time Price Action
Repair Service 1-2 weeks $692

Our highly skilled technicians can repair your 2GU41020. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
