7.5HP 50-60Hz 3-Phase Drive

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 2GU41007 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

2GU41007

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product
7.5HP 50-60Hz 3-Phase Drive

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 2GU41007 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

2GU41007 Technical Specifications

Enclosure NEMA 1 or Chassis
HP 7.5 HP
Hz 50/60Hz
Input Voltage 460 VAC
Keypad/Display Built-In Keypad
KVA 8.8KVA
Labeling UL Listed, IEC Certified
Manufacturer Reliance Electric
Part Number 2GU41007
Phase 3 Phase
Series GP-2000

Product Description

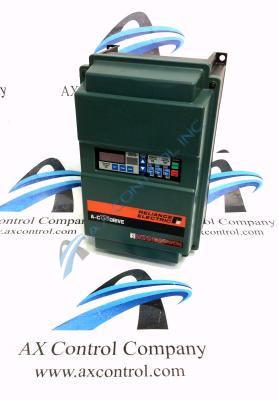

Reliance Electric created the 2GU41007 as an AC V*S GP2000 series Drive drive. It is 10.7 KVA and 7.5 HP@ 0.8PF. It is protected in a NEMA Type 1 enclosure. It is a 3-Phase 50/60 Hz drive. It has an AC input and AC output of 460 volts. It has a max input amperage of 13.4A and a max output amperage of 11.1A. This drive also possesses a system rating for short circuits of 25 kA. It also has a sine wave maximum of 10.1 amps. These ratings are for a 3-Phase input power because unlike other models, this device can not be downshifted to have single-phase input.

The 2GU41007 posses many of the standard features that are common to other GP2000 drives. It has a microprocessor-based regulator and PWM control. It has large scale integration and surface mounting technology. It has UL/CSA electronic motor overload regulations that meet the NCE/CEC requirements. It has the capability to adjust its drive configurations to 57 different options. This drive has a frequency that has a range of 0-400Hz. It has the ability to reduce motor signal noise using full-spectrum switching. It has the option to use a card to have serial communications. The drive has the ability to limit its current and regenerative voltage.

There are a few optional kits and modifications that can be purchased to go with the 2GU41007. There is an expanded cabinet that can be purchased in the case that these optional kits do not fit within the standard enclosure. The kits that are available include but are not limited to remote digital meters, a remote meter interface card, a rail interface card, output contactors, inverter fuse kits, and a dynamic braking kit.

Frequently Asked Questions about 2GU41007

What happens when an IET occurs on a 2GU41007?
When an instantaneous electronic trip occurs on a GP2000 2GU41007, the IET relay energizes and the motor on the 2GU41007 comes to a coast-to-rest stop. The built-in keypad on the 2GU41007 will display the 4-digit fault code for the fault that caused the IET on the 2GU41007.
Where can I find a GP2000 2GU41007 manual?
There is not a manual specific to the 2GU41007, but we are happy to send you a link to the GP2000 Instruction Manual. The manual was written by Reliance Electric and the manul addresses installing, operating, and maintaining a GP2000 drive.
Does AX Control carry both new surplus and reconditioned surplus of 2GU41007 drives?
Yes, we have both a new surplus of 2GU41007 drives as well as reconditioned 2GU41007 drives. While GP2000 2GU41007 drives are now obsolete, we have been able to buy the unused 2GU41007 drives from factory stock shelves. We have also reconditioned many 2GU41007 drives.
What does Run Mode mean on the 2GU41007?
Run Mode on a 2GU41007 is the condition when output frequency and voltage are applied to the A-C motor on the 2GU41007.

Repair Services For 2GU41007

Type Lead Time Price Action
Repair Service 1-2 weeks $551

Our highly skilled technicians can repair your 2GU41007. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
