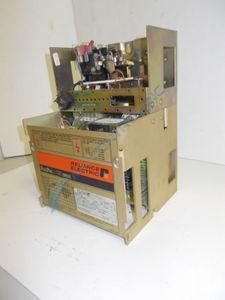

14C109U Reliance Electric Rockwell FlexPak Plus 5HP 230VOLT 35AMP Drive.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 14C109U to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 14C109U
  • SKU: RE-1865
  • Manufacturer: Reliance Electric
  • Series: FlexPak Plus

14C109U Technical Specifications

Manufacturer Reliance Electric
Series FlexPak Plus
Part Number 14C109U
HP 5 HP
Input Voltage 230 VAC
Shipping Weight 14 lb

About the 14C109U

  • The 14C109U is a FlexPak Plus single phase D-C controller manufactured by Reliance Electric.
  • It is a full wave power converter without a back rectifier.
  • Features an analog current minor loop and an analog major loop for armature voltage or speed regulation via tachometer feedback.
  • Supports both non-regenerative and regenerative applications.

Versions: Basic vs. Complete Chassis Controller
  • The 14C109U model has two main versions, differing by supplier and setup:
    • Basic Chassis Controller:
      • Includes a power converter, regulator, and field supply.
      • Does not include an auxiliary panel (which contains AC power fuses and armature loop contactor).
      • Typically supplied by third-party vendors without the auxiliary panel.
    • Complete Chassis Controller:
      • Comes with the auxiliary panel.
      • Includes the power converter, field supply, regulator, and the auxiliary panel.
      • The auxiliary panel contains the AC power fuses and armature loop contactor.
      • This is considered the "whole setup" or complete packaged drive.

Installation and Safety
  • The chassis cannot be mounted horizontally due to concerns about air circulation.
  • The user manual provides simple installation steps for model no. 14C109U.
  • Only qualified electrical personnel familiar with the construction and operation of the equipment should install and handle the device.

Modification Kits
  • Reliance Electric offers a vast range of pre-engineered, easy-to-install modification kits to increase the application range of the basic controller.
  • Model numbers for these kits are provided in the user manual.
