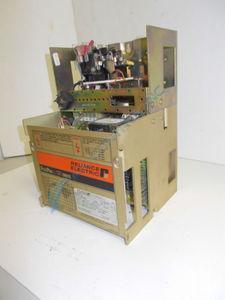

14C109 Reliance Electric Rockwell FlexPak Plus 5HP FP Plus Drive.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 14C109 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 14C109
  • SKU: RE-1851
  • Manufacturer: Reliance Electric
  • Series: FlexPak Plus

14C109 Technical Specifications

Manufacturer Reliance Electric
Series FlexPak Plus
Part Number 14C109
HP 5 HP
Input Voltage 230 VAC
Phase 1 Phase
Shipping Weight 10 lb

About the 14C109

Electrical Specifications
  • Horsepower (HP) Rating: 5 HP.
  • AC Input Drive Rating: 230 volts.
  • Input KVA: 11.04.
  • DC Armature Voltage: 180 volts.
  • Rated Armature Current: 25.0 amperes.
  • Available Field Voltage: 200 volts.
  • Available Field Current: 3.0 amperes (feature unique to regenerative controllers, which do not have a rated AC line).

Environmental Operating Conditions
  • Elevation Limit: Up to 3300 feet.
  • Relative Humidity: 5-95% non-condensing.
  • Ambient Temperature: Must stay between 32°F (0°C) and 131°F (55°C).

Performance and Protection Features
  • Maximum Load: 150% for one minute.
  • Power Outage Protection: Relay in the control circuit prevents automatic drive restart after a power outage.
  • Drive Reliability: Incorporates isolated voltage and current feedbacks.
  • Inverting Fault Protection: Protected by an armature loop D-C circuit breaker.
  • Field Supply: Includes a 2-3 HP field supply for the motor shunt field.
  • Surge Suppression: Built-in surge suppressor protects semiconductors from line transients.

Design and Remote Operation
  • Design: Features a compact, open chassis design for easy installation and service.
  • Remote Operation: Comes standard with a Remote Operator Adapter Kit for buffering and filtering external signals when the drive is remotely operated.
