14C107U

Product Description

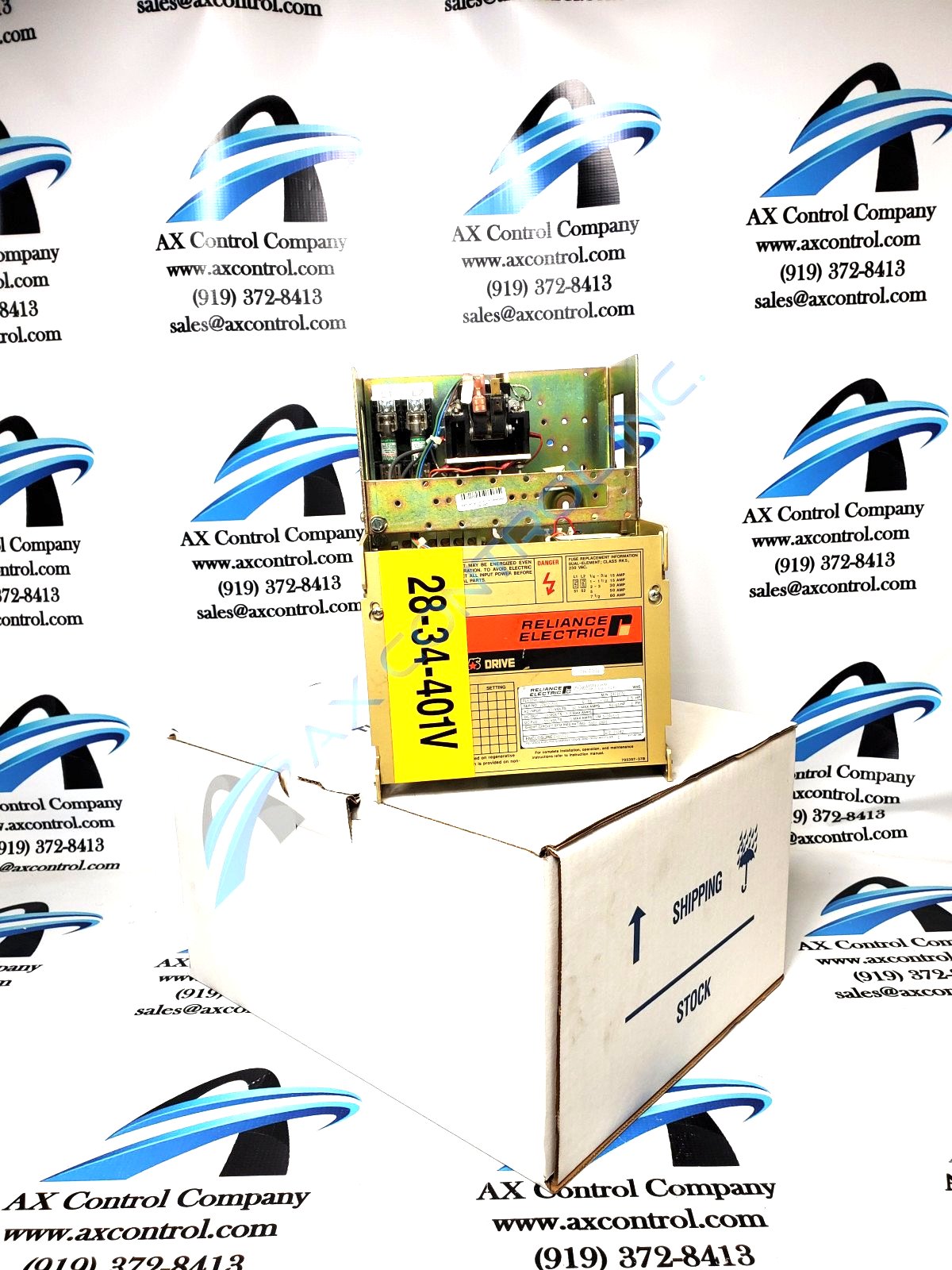

14C107U is a FlexPak Plus Regenerative Controller with an Auxiliary Panel and is manufactured by Reliance Electric.

This controller has a Horse Power rating that ranges from 0.5 to 1.5 and an AC Input drive rating of 230 volts. Within those ratings, this controller has an Input KVA ranging from 0.81 to 2.42. 14C107U also carries a D-C Armature Voltage of 180 and a Rated Armature Current of between 2.5 and 7.5 amperes. The controller has an available field voltage of 200 and and available field current of 3.0 amperes.

The dimensions of this FlexPak Plus Regenerative Controller are 11.97” (305mm) x 7.93” (201mm) x 8.37” (213mm). The dimensions of the auxiliary panel are 4.75” (111mm) x 8.37” (213mm). The dimensions of the basic controller are 7.22” (184mm) x 8.37” (213mm).

When installing this controller, always refer to the manual for procedure regarding danger warnings. Installing a controller improperly may pose an electrical risk and/or damage the equipment. All controllers, as well as optional features and accessories, are available with a CSA certification. All modification kits are UL listed. Separate NEMA rated types 1, 3R, 4, 4x, and 12 operator control stations are available for remote operation of the drive.

The first step in the set-up procedure is verifying whether the motor is rotating in the correct direction. Then, make a determination of tachometer output polarity, and from there, adjust the settings of maximum and minimum speed, drive acceleration and deceleration time, current limit, and IR drop compensation as needed.
