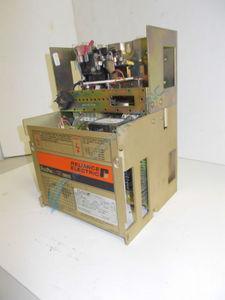

14C104 Reliance Electric Rockwell FlexPak Plus 5HP DC FP Plus Drive.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 14C104 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 14C104
  • SKU: RE-1856
  • Manufacturer: Reliance Electric
  • Series: FlexPak Plus

14C104 Technical Specifications

Manufacturer Reliance Electric
Series FlexPak Plus
Part Number 14C104
HP 5 HP
Input Voltage 230 VAC
Weight 12.45 lb

About the 14C104

  • The 14C104 is a Non-Regenerative Controller with an Auxiliary Panel, part of the FlexPak Plus Series manufactured by Reliance Electric.

Electrical Ratings
  • Horsepower (HP) Rating: 5 HP.
  • AC Input Drive Rating: 230 volts.
  • Rated AC Line: 35.0 amperes.
  • Input KVA: 8.05.
  • DC Armature Voltage: 180 volts.
  • Rated Armature Current: 25.0 amperes.

Dimensions
  • FlexPak Plus Non-Regenerative Controllers (Overall): 11.97” (305mm) x 5.95” (152mm) x 8.37” (213mm).
  • Auxiliary Panel: 4.75” (111mm) x 8.37” (213mm).
  • Basic Controller: 7.22” (184mm) x 8.37” (213mm).

Installation Procedure
  • Mounting:
    • Mount each chassis vertically.
    • Leave 2 inches of space between controllers.
  • Wiring Sequence:
    1. Install the motor.
    2. Install the disconnect.
    3. Wire the drive.
    4. Wire AC power to the controller.
    5. Wire the DC motor to the controller.
    6. Install the field supply.
    7. Wire the field supply.
    8. Wire the speed reference circuit.
    9. Start up the controller.
  • Setup Adjustments (for 14C104):
    1. Verify the correct direction of motor rotation.
    2. Determine the tachometer output polarity.
    3. Adjust the minimum and maximum speeds.
    4. Adjust the drive acceleration and deceleration time.
    5. Adjust the current limit.
    6. Adjust the IR drop compensation.

Certifications and Optional Features
  • Certifications: Available CSA certified.
  • Optional Feature: The Torque Taper Kit, which allows for changing the speed-torque relationship, is available for all non-regenerative controllers in the FlexPak Plus series.

Reviews For 14C104

Internal Review
(4.0)

Compact Design and Detailed Installation: Measuring 11.97" x 5.95" x 8.37" (overall), the controller boasts a relatively compact design. Installation requires vertical mounting with a 2-inch clearance between units. The setup process is well-defined, encompassing a sequential wiring procedure (motor to speed reference) followed by crucial adjustments for motor rotation, speed limits, acceleration/deceleration times, current limits, and IR drop compensation. Certified Performance and Optional Functionality: The 14C104 is available CSA certified, affirming its adherence to safety standards. An notable optional feature is the Torque Taper Kit, which allows for modification of the speed-torque relationship, adding versatility to its applications. This controller offers a powerful and reliable solution for industrial motor control, with clear guidelines for installation and setup. – AX Control Technician
