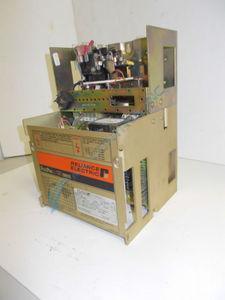

14C103U Reliance Electric Rockwell FlexPak Plus FP PLUS Model Drive.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 14C103U to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 14C103U
  • SKU: RE-1870
  • Manufacturer: Reliance Electric
  • Series: FlexPak Plus

14C103U Technical Specifications

Manufacturer Reliance Electric
Series FlexPak Plus
Part Number 14C103U
HP 3 HP
Input Voltage 230 VAC
Hz 50/60Hz
Phase 1 Phase
Enclosure NEMA 1 or Chassis
Shipping Weight 10 lb

About the 14C103U

The 14C103 is a Non-Regenerative Controller with an Auxiliary Panel, part of Reliance Electric's FlexPak Plus series.


Electrical Specifications
  • Horsepower (HP) Rating: 2 to 3 HP.
  • AC Input Drive Rating: 230 volts.
  • Rated AC Line: 14.0 to 21.0 amperes.
  • Input KVA: 3.22 to 4.83.
  • DC Armature Voltage: 180 volts.
  • Rated Armature Current: 10.0 to 15.0 amperes.
  • AC Frequency: 48 to 62 Hz.
  • Service Factor of Application Data: 1.0.

Features and Installation Guidelines
  • Conversion: Provides full wave and full control conversion for smooth and efficient operation.
  • Mounting:
    • Must be mounted on a vertical surface for proper heat sink circulation.
    • Leave 2 inches of space at the top, bottom, and sides of the controllers.
    • Do not place a controller in a corner during setup configuration, as this will lead to overheating.
  • Performance: Power-matched with Reliance D-C motors for optimum performance.
  • Maintenance: Power cubes, containing power semiconductors, are easy to replace.

Auxiliary Panel and Optional Accessories
  • Auxiliary Panel:
    • Provides fused AC line protection.
    • Motor armature contactor disconnects power to the drive motor.
  • Optional Plug-in Kits (for non-regenerative controllers):
    • Test Meter Adapter kit: Allows measurement of controller and regulator signal voltages with a voltmeter.
    • Automatic Reversing kit: Provides automatic reverse-direction capability.
    • Auxiliary Contact kit: For interconnection with external signaling devices.
