About the 14C102

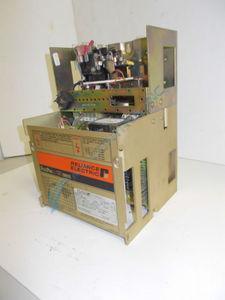

The 14C102 is a FlexPak Plus Non-Regenerative Controller with an Auxiliary Panel, manufactured by Reliance Electric.
Electrical Ratings
- Horsepower (HP) Rating: 0.5 - 1.5 HP.
- AC Input Drive Rating: 230 volts.
- Rated AC Line: 3.5 to 10.5 amperes.
- Input KVA: 0.81 to 2.42.
- DC Armature Voltage: 180 volts.
- Rated Armature Current: 2.5 to 7.5 amperes.
Environmental Conditions
- Relative Humidity: 5% to 95% non-condensing.
Adjustable Settings and Performance
- Maximum Speed: Adjustable between 50-100% of its rated speed.
- Minimum Speed: Adjustable between 10-50% of its rated speed.
- Acceleration Rate: 0.5 to 30 seconds linear.
- Deceleration Rate: 0.5 to 30 seconds linear.
- Worldwide Application: 50/60 Hz.
- Quadrant Models: Includes four quadrant models, providing contactorless reversing and hold-back torque capability through 7.5 HP.
Protection and Installation Features
- Power Outage Protection: Relay in the control circuit prevents automatic restarting after a power outage.
- Current Limit Control: Protects the drive and driven machine from damaging current and torque levels.
- Easy Installation: Wire entry is direct to incoming power terminations.
- Simple Disconnection: Plug connectors allow for easy disconnection of leads.
- Optional Dynamic Braking Kit: Available for applications requiring quick motor stops.
- Certifications: Available CSA certified.
