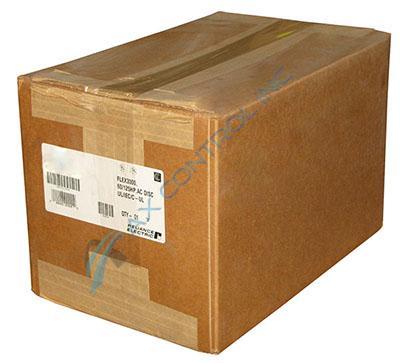

The 915FK2101 model is a ControlNet Network Communication Option Board produced by Reliance Electric. This option board can be used with FlexPak 3000 or WebPak 3000 DC drives. The 915FK2101 model will make the attached drive a slave node on the ControlNet network.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 915FK2101 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 915FK2101
  • SKU: 915FK2101RE
  • Manufacturer: Reliance Electric
  • Series: FlexPak 3000

915FK2101 Technical Specifications

Part Number 915FK2101
Series FlexPak 3000
Manufacturer Reliance Electric
Model Type ControlNet Network Communication Option Board

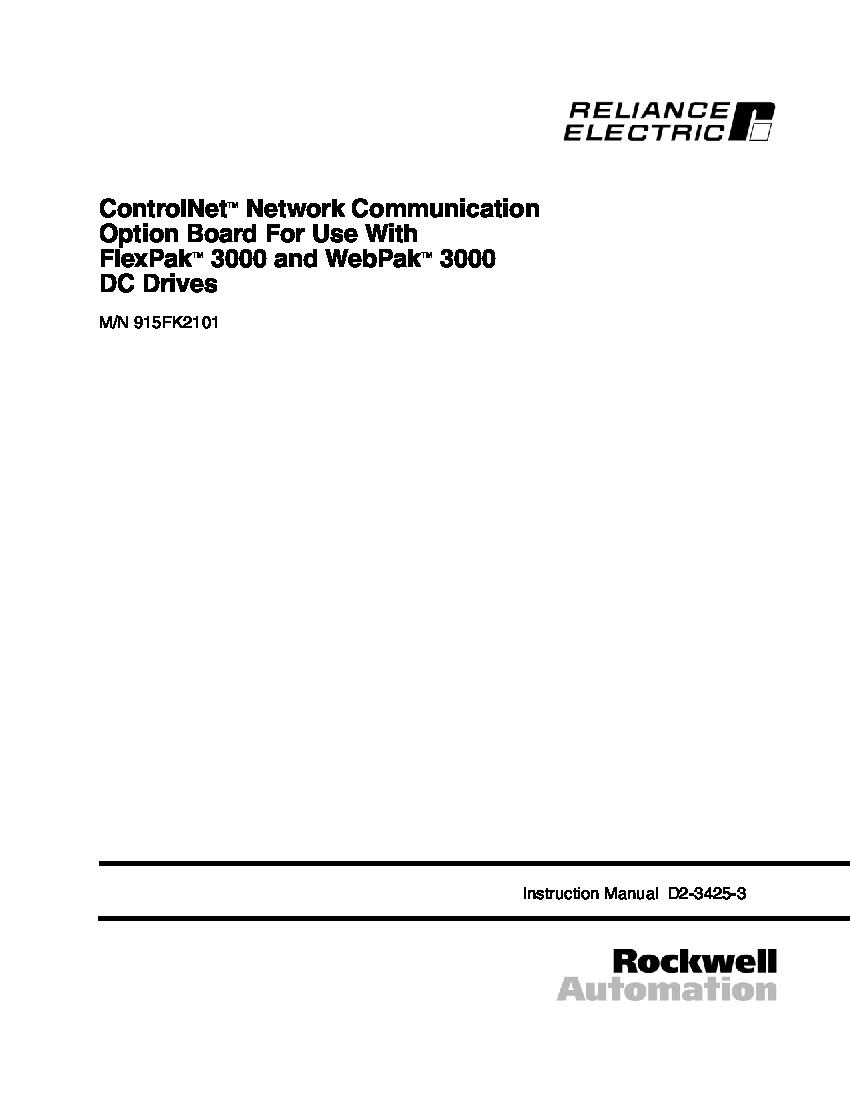

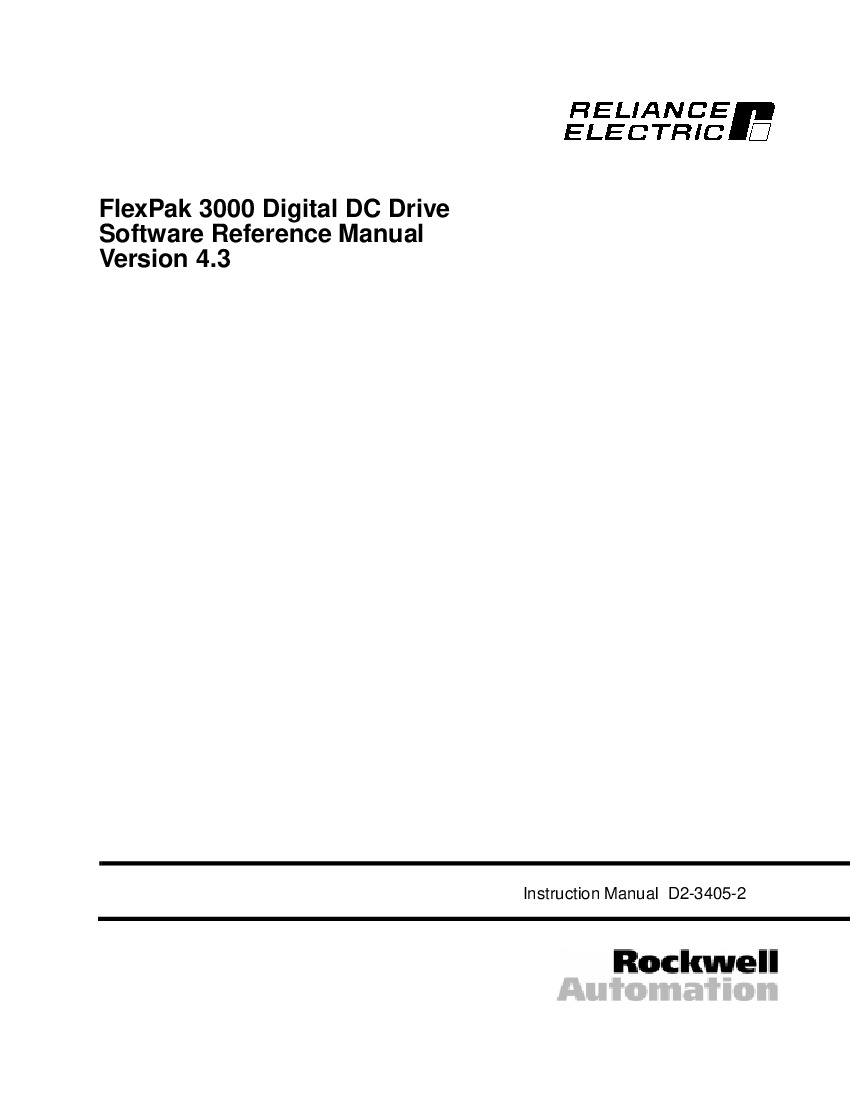

Instruction Manual D2-3404, D2-3405, and D2-3425
Used With FlexPak 3000 or WebPak 3000 DC Drives

About the 915FK2101

The 915FK2101 model is described by Reliance Electric as a ControlNet Network Communication Option board. This model can be used with a FlexPak 3000 or WebPak 3000 DC drive. One thing that should be noted is that there are certain versions of the ControlNet Network board and WebPak 3000 or FlexPak 3000 DC drives used together. When the 915FK2101 is used with a WebPak 3000 drive, version 1.1 or later, the option board used must be version 2.2 or later. The FlexPak 3000 drive, version 4.2 or later, can be used with any available ControlNet Network Option boards.

The 915FK2101 model was designed to make the connected drive a slave node on the ControlNet network. This model is considered a printed circuit board that will internally mount to the drive and connects to the regulator board available within the chosen drive with the attached ribbon connector. This unit will be powered by the drive's power supply. One of the features available on the 915FK2101 model is the RJ-45 connector; the RJ-45 connector was designed to be used as a Network Access Port to allow temporary access to products connected to the network or the network itself.

This model also contains its own microprocessor; the microprocessor on the 915FK2101 can be connected to one port of the board's dual-port memory, with the remaining port interfacing with the connected drive's regulator board. For more information regarding the features of the option board, refer to the D2-3425 manual.

Frequently Asked Questions about 915FK2101

What is the purpose of the 915FK2101?
The 915FK2101 is the model number for the ControlNet Network Communication Board. The 915FK2101 allows communication over the ControlNet network for a FlexPak 3000 drive.
What instruction manual goes with 915FK2101?
The manual for 915FK2101 is Instruction Manual D2-3425. You can find this manual by searching the manual number online or you can contact AX Control.
Where is the 915FK2101's 9 pin D-shell connector?
The 915FK2101 has a 9 pin D-shell connector that is used for to connect ta drop cable to the Automax network.The 915FK2101 is located on the left edge of the 915FK2101.
Can AX Control troubleshoot my 915FK2101?
AX Control can troubleshoot your 915FK2101 and locate the issue at hand. Once the problem is found, we can complete any repairs needed.

Reviews For 915FK2101

Internal Review
(5.0)

One of the best features of the 915FK2101 is that it can be used with different drives produced by Reliance Electric. The 915FK2101 model can be used with version 4.2 or later of the FlexPak 3000 drives and can be used with version 1.1 or later of the WebPak 3000 drives. One downside of this model being used with these drives is that there are different versions of the option board that the aforementioned drives can be used with. - AX Control Tech
