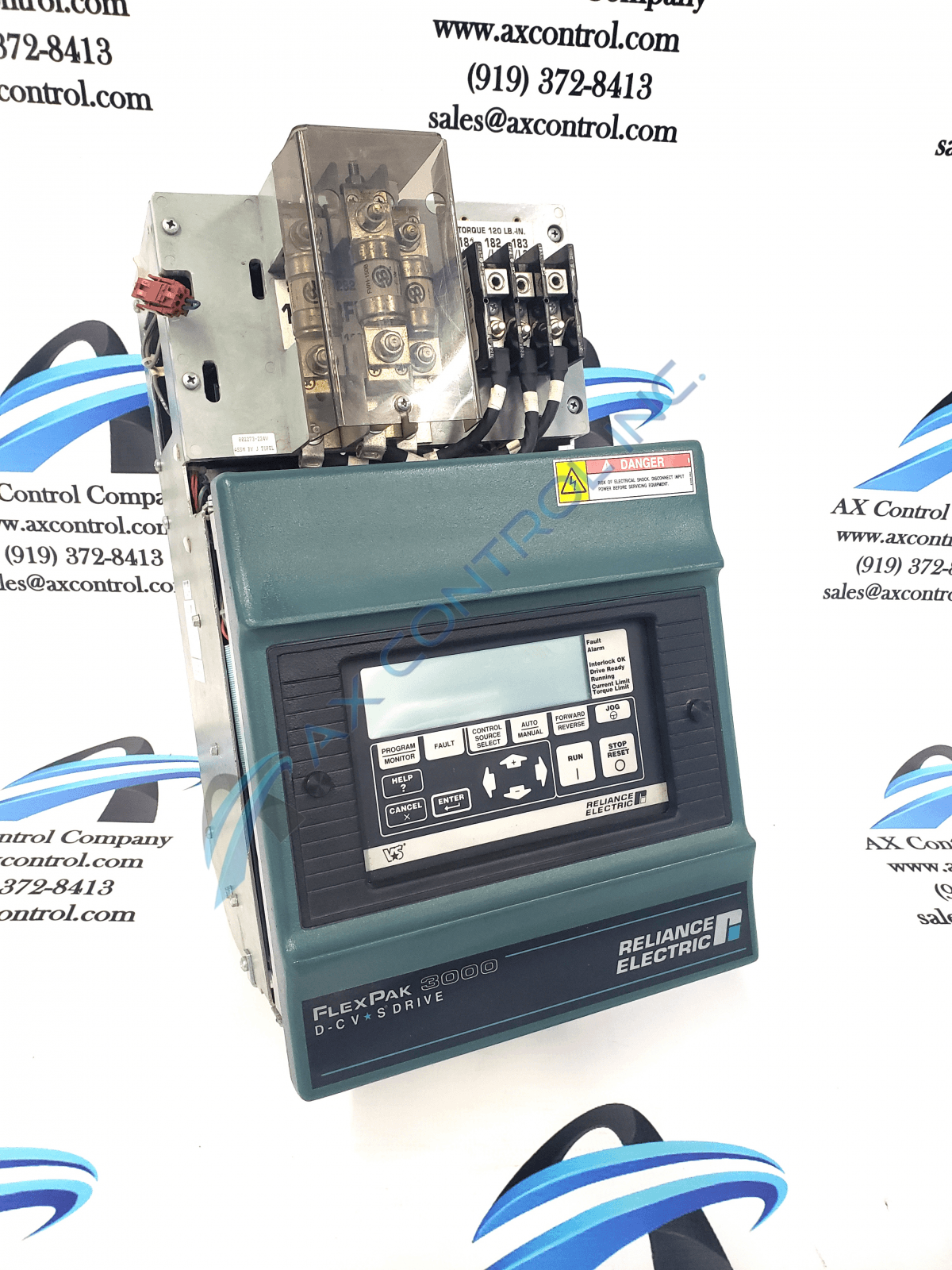

Reliance Electric 60FR4042 460 VAC 50/60 Hz Regenerative FlexPak 3000 Drive



Sell Surplus: Have a 60FR4042 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 60FR4042
  • SKU: 60FR4042RE
  • Manufacturer: Reliance Electric
  • Series: FlexPak 3000

60FR4042 Technical Specifications

Manufacturer Reliance Electric
Series FlexPak 3000
Part Number 60FR4042
HP 60 HP
Input Voltage 460 VAC
Hz 50/60Hz

Product Description

The 60FR4042 is a 60HP 460 VAC 50/60 Hz Regenerative FlexPak 3000 Drive. It was originally designed by Reliance Electric but could have also been sold by Baldor Reliance or ABB.

The 60FR4042 is rated 500 VDC armature with a 300 VDC field. It has a full load EMS AC line current of 86. It has a 100 full load rated DC armature current. It has a 15 rated field current. This drive is 270.5mm wide, 477.3 mm tall, and is 310.6 mm deep. It weighs approximately 26.4 kg. This system has an AC line voltage variation of +/-10%.  There can be a maximum of 3 drives per transformer. The displacement power factor when going at max speed is 88%. The typical efficiency of this drive including the motor is 87%. It has a maximum load of 150% for a total of 1 minute and for 5 seconds it can sustain a 200% load.

The 60FR4042 has a standard chassis type enclosure. It is not NEMA rated. It has a keypad that is used to set drive parameters and display error codes. It has the power to set up the drive, monitoring the dive operation, and performing diagnostics.  The display can be set to show text in 5 different languages that include English, German, French, Spanish, and Italian. It has a series of indicators that include drive faults, drive alarms, drive read, drive running, the current/torque limits, and the interlocks ok. The keypad can also set a quick-start sequence that can setup the drive quickly.

Frequently Asked Questions about 60FR4042

Is the 60FR4042 a Non-regenerative drive?
No, the 60FR4042 is a regenerative drive. The 60FR4042 has a R within it's part number which indicates it is a regenerative drive.
Is the 60FR4042 compatible with the DeviceNet communication card?
The  60FR4042 is compatible with four different communication option card including the DeviceNet card. The other three communication option cards are ControlNet, Profibus, and Interbus-S.
What is the DC field rating on 60FR4042?
The DC field rating on a Reliance FlexPak 3000 60FR4042 drive is 150/300 VDC and the 60FR4042 has 15 amps.
What instruction manual does Reliance advise for a 60FR4042?
Reliance Electric advises Instruction Manual D2-3404 for the 60FR4042 drive. Please contact AX Control if you need this manual and we will send you a copy.

Repair Services For 60FR4042

Type Lead Time Price Action
Repair Service 1-2 weeks $4190

Our highly skilled technicians can repair your 60FR4042. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

60FR4042 Manuals, White Papers, Data Sheets, and Troubleshooting
