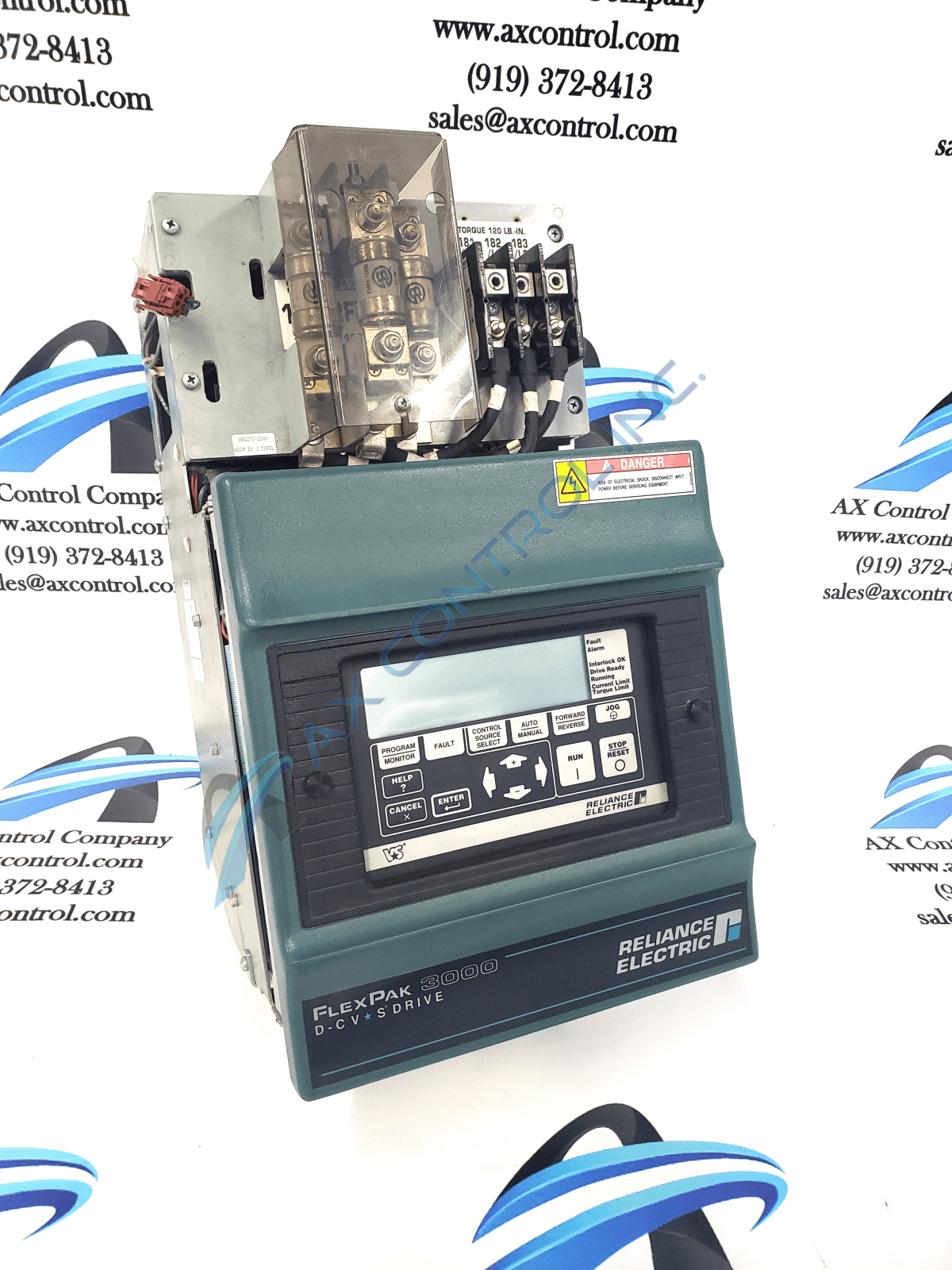

Reliance Electric 15FR2011 15 HP 230 VAC FlexPak 3000 Motor Controller



Sell Surplus: Have a 15FR2011 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 15FR2011
  • SKU: 15FR2011RE
  • Manufacturer: Reliance Electric
  • Series: FlexPak 3000

15FR2011 Technical Specifications

Manufacturer Reliance Electric
Series FlexPak 3000
Part Number 15FR2011
HP 15 HP
Input Voltage 230 VAC
Hz 50/60 Hz

Product Description

The 15FR2011 is a DC drive module that was manufactured by Reliance Electric for the FlexPak 3000 product line. The 15FR2011 DC drive module is usually available in our stock. To be sure, check on our website or by contacting one of our staff members over the phone or by sending us a quick email.

The 15FR2011 model is a regenerative drive that is rated at 230 V. It has a chassis style enclosure and is both UL and C-UL listed.

The 15FR2011 DC drive module is designed for many different purposes. This includes armature voltage and speed regulation by use of tachometer feedback, as well as power conversion without the use of a back rectifier. The 15FR2011 DC drive module can be controlled either locally using the OIM keypad or remotely by use of the terminals at the regulator board’s terminal strip.

When you are ready to start the installation process of the 15FR2011 DC drive module, be sure to leave enough space for the module inside of the cabinet in which you are installing the module. By leaving enough space for the 15FR2011 DC drive module, you will allow adequate ventilation for it.

The initial drive setup process for the 15FR2011 DC drive module is important as well. There are many steps that the user must take when performing the initial setup. This includes performing a power off inspection, verifying the control transformer tap settings, performing a motor ground check, setting up the numerous jumpers, powering up the drive, and verifying the correct direction of motor rotation.

Frequently Asked Questions about 15FR2011

What are the main parameters I should adjust on my 15FR2011?
There are a few parameters that you may want to adjust the setting on before initially starting the 15FR2011 drive. They are: the control source parameter (P.000), nominal AC line frequency (P.306) and nominal AC line volts (P.307) parameters, and the self-tuning parameters (P.218-P.220).
What is the speed reference on a FlexPak 3000 15FR2011 drive?
On a 15FR2011 or any other FlexPak 3000 drive, speed reference refers to the speed that the speed loop tries to maintain. The 15FR2011 processes and scales the speed reference input for use by the speed loop. On a 15FR2011, it can either be automatic or manual.
How do you get a negative MOP output on a 15FR2011?
To get a negative MOP reference on a 15FR2011 drive, you have to choose the reverse direction on the MOP output parameter (P.191). There is no MOP on a 15FR2011 if you do not have the I/O Expansion kit installed on the 15FR2011.
Does AX Control buy broken 15FR2011 drives?
Yes, we will buy a 15FR2011 drive from you or any Reliance Electric product. We will put the decomissioned 15FR2011 drive through our reconditioning process and we will refurbish the 15FR2011 drive so it operates properly again. We can also repair the 15FR2011 for you so that you're not having to buy a new one.

Repair Services For 15FR2011

Type Lead Time Price Action
Repair Service 1-2 weeks $3686

Our highly skilled technicians can repair your 15FR2011. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
