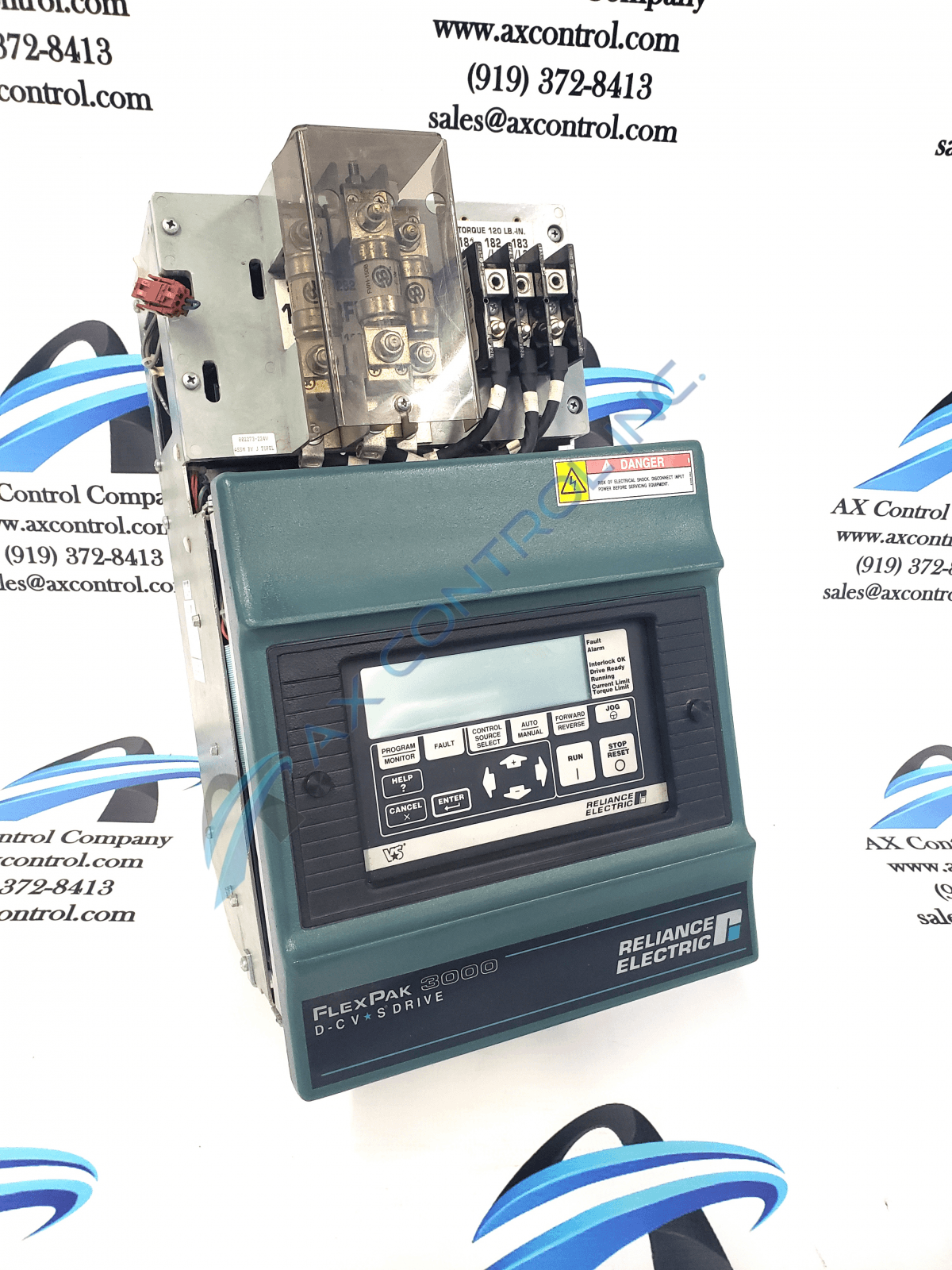

Reliance Electric Rockwell FlexPak 3000 5/10HP Output 240-500DC Drive.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 10FR4032 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 10FR4032
  • SKU: 10FR4032RE
  • Manufacturer: Reliance Electric
  • Series: FlexPak 3000

10FR4032 Technical Specifications

Manufacturer Reliance Electric
Series FlexPak 3000
Part Number 10FR4032
HP 10 HP
Input Voltage 230/460 VAC
Hz 50/60 Hz

Product Description

10FR4032 is a regenerative 460 VAC FlexPak 3000 drive that is manufactured by Reliance Electric. There are a number of fault codes on the FlexPak 3000 drive. F00100 is the Main Contactor Did Not Open fault, which means that following a run or jog, the main contactor did not open. This may occur due to disconnected, loosely connected, or damaged FN, FN AUX, DB or DB AUX wiring, a contactor failure, or damaged/disconnected main contactor or dynamic brake control wiring. F00200 is the Power Failure fault, which means that the power supply input voltage momentarily went below tolerance. This might occur after an AC line voltage dip or due to a disconnected or damaged J7 ribbon cable or power supply input wiring.

F00700 is the Factory Defaults Restored faults, which means that all default parameters have been restored. The possible causes are a power loss during a prior memory save or a new or defective regulator board. F00701 is the Fault Log Restore Failure fault, which means that fault log information was determined to be invalid. The possible causes are a power loss during a prior fault log save or a defective regulator board. F00702 is the Keypad Ref Restore Failure fault, which means the keypad reference value stored in retentive memory was determined to be invalid. The possible causes are a power loss during a prior keypad reference save or a defective regulator board. F00703 is the OIM Key Restore Failure fault, which means there is a defective regulator board.

Frequently Asked Questions about 10FR4032

What field supply is used on a 10FR4032?
The FlexPak 3000 10FR4032 drive can be used with three types of field supplies. The 10FR4032 can use standard field supply, optional enhanced field supply, or field current regulated supply.
What is the output on a 10FR4032?
The output is 240/500 VDC on the 10FR4032.
Where can I find more information on configuring the field supply on a 10FR4032?
Chapter 8 in the FlexPak 3000 DC Drive Instruction Manual is dedicated to configuring the field supply on FlexPak 3000 drives. The manual lists the types of kits you may need on your 10FR4032 to configure the field supply and the manual tells you which parameters are associated with each.
Can AX Control trouble shoot my 10FR4032?
If your 10FR4032 is not working and you can not locate the issue please contact AX Control. AX Control technicians can troubleshoot your 10FR4032 and figure out why it isn't functioning.

Repair Services For 10FR4032

Type Lead Time Price Action
Repair Service 1-2 weeks $4475

Our highly skilled technicians can repair your 10FR4032. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
