Reliance Electric 9101-1132 20A AC 1PH 120/240VAC DM-20 Motor Controller

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More

Sell Surplus: Have a 9101-1132 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

9101-1132

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
Reliance Electric 9101-1132 20A AC 1PH 120/240VAC DM-20 Motor Controller

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More

Sell Surplus: Have a 9101-1132 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

9101-1132 Technical Specifications

Hz 50/60 Hz
Input Voltage 100/240 VAC
Manufacturer Reliance Electric
Phase 1 Phase
Product Number 9101-1132
Rev D
Series BRU-200

Product Description

The 9101-1132 is a single-phase 20-amp Reliance Electric BRU-200 series brushless servo drive. This drive was probably also sold by Baldor Reliance and ABB at one point, but it is now classified as a legacy series model. The 9101-1132 may be hard to locate, but AX Control tries to keep it in stock. This drive can be found under the alternative product numbers DM-20 or BRU-200-DM-20.

The 9101-1132 has the capacity to provide power and control to an Electro-Craft type motor. There are a few options for motors that this drive can be paired with. Reliance suggests this drive should be used with either the F-4030 that is in the F-Series or the S-3016 or S4030 in the S-Series. This drive maintains a 20A peak amp rating and a continuous amp rating of 10A. It is a 120/240 VAC 50/60HZ drive. It has a +/-10 VDC continuous command signal range with a 13.3 ohms impedance. It has a 100 watt + dissipative shunt maximum power loss.  However, the typical power loss values are normally only ½ of the max value. This device has a peak power shunt of 4.5 kilowatts and a continuous shunt of 50 watts. The drive weighs 15lbs.

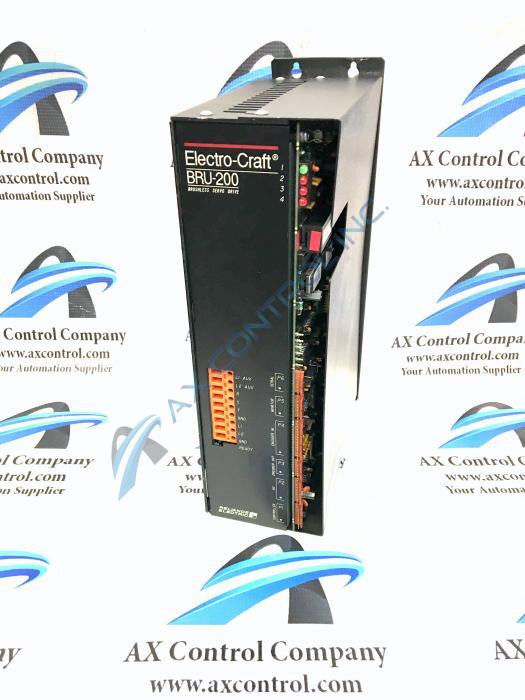

The 9101-1132 has a faceplate that has several basic features. On the top right-hand corner, there are four small LED indicators. These indicators are numerically labeled 1-4. One of the LEDs is green and the others are red. There is an I/O terminal strip that is located near the bottom left-hand side of the drive. There is a small green LED indicator light slightly below the terminal strip.

Frequently Asked Questions about 9101-1132

How much does the 9101-1132 weigh?
The 9101-1132 drive weighs 15 lbs.
Is there a transformer available for the 9101-1132?
There is a single phase isolation transformer used for line voltage matching available with the 9101-1132.
Can AX Control troubleshoot my 9101-1132?
If your 9101-1132 isn't working properly AX Control technicians can troubleshoot the drive and figure out the issue. Once the problem is found, AX Control can complete board level repairs.
Does the 9101-1132 have an auxiliary power supply?
Yes, the 9101-1132 has a auxiliary power supply that is built into all the drives in the BRU-200 Series.
