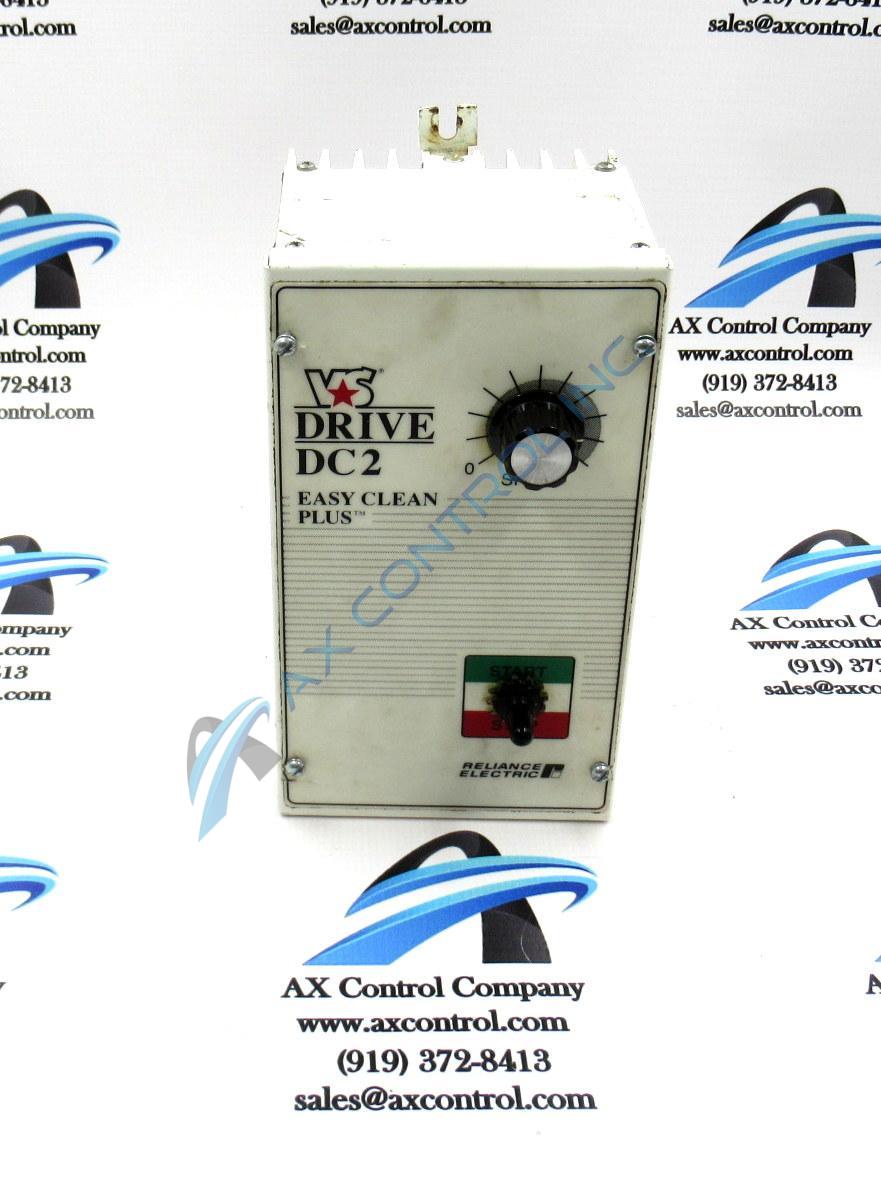

Reliance Electric DC2-90U DC Motor Controller 1PH 115/230VAC



Sell Surplus: Have a DC2-90U to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DC2-90U
  • SKU: DC290URE
  • Manufacturer: Reliance Electric
  • Series: DC2 Drives

DC2-90U Technical Specifications

Manufacturer Reliance Electric
Series DC2
Part Number DC2-90U
Input Voltage 115/230 VAC
Phase 1 Phase
Hz 50/60Hz

About the DC2-90U

The Reliance Electric DC2-90U is a single phase, continuous duty DC motor controller. This Reliance DC motor compatible unit converts AC power into adjustable DC power. This conversion allows for better control of the outputted torque and speed. A reconnectable AC power line allows the controller to input both 115 and 230 Volts. Outputted voltage and horsepower depends on the inputted AC voltage, with 115 VAC outputting 90 VCD and 1.0 horsepower and 230 VAC outputting 180 VCD and 2.0 horsepower.

Machine functionality of DC2-90U is enhanced through multiple included mechanical features. Motor overload is preventable through an internal thermostat, while unidirectional operation allows a coast-to-rest stop function. A remote start, stop, run, and jog feature is included as well. Shunt wound DC motors have a usable supply created by a half-wave field. A back diode paired with a full-wave, half-controlled armature voltage rectifier improves armature form factor.

With extra process controls offered, a variety of speed control functions are incorporated into DC2-90U. Integrated into the system, speed control functionality can be controlled independently. Current limits are adjustable, as well as separately setting minimum and maximum speeds. Both a potentiometer motor speed adjustment and a motor mounted DC tachometer are available as speed control options. An armature voltage regulation system also allows for operator controlled speed control.

DC2-90U is suitable for both indoor and outdoor installation as a NEMA 4/4X/12 enclosure houses it. This enclosure is more substantial, allowing the controller protection from a variety of harsher conditions, including inclement weather, spraying water, and solid foreign objects. Safety and installation guidelines are found in the corresponding series manual.

Frequently Asked Questions about DC2-90U

Can AX Control repair my DC2-90U?
Yes, we're happy to repair your Reliance DC2-90U. Speak to a sales representative for a repair time on your DC2-90U and a repair quote for your DC2-90U
What is the output voltage on a Reliance DC2-90U?
DC2-90U has an output voltage of 90/180 VDC.
Where can I find a manual for the DC2-90U?
We're happy to send you a link to the DC2 Drive Manual. The manual is an installing, operating, and maintaining manual and the manual is helpful for processes with the Reliance DC2-90U.
What controls are the DC2-90U equipped with?
The DC2-90U has both a speed dial and a start/stop control located on the exterior of the device.
