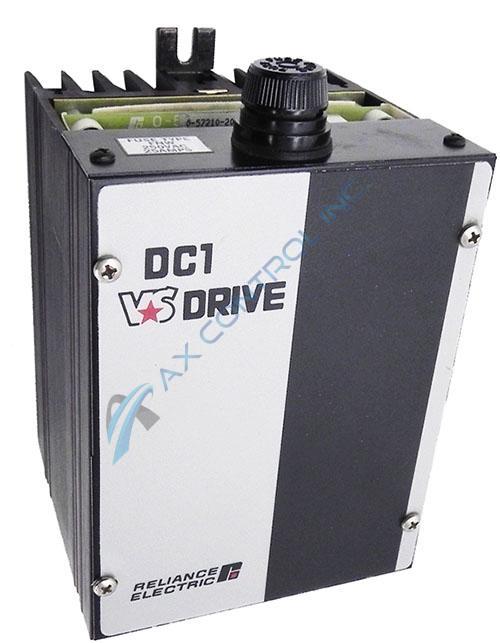

DC1-46U

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.86 (7)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.86 (7)
  • Click a star to rate this product
DC Motor Control Drive

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a DC1-46U to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

DC1-46U

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.86 (7)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.86 (7)
  • Click a star to rate this product
DC Motor Control Drive

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a DC1-46U to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

DC1-46U Technical Specifications

Enclosure Chassis
HP 1.0/2.0 HP
Hz 50/60Hz
Input Voltage 90/180 VAC
Manufacturer Reliance Electric
Part Number DC1-46U
Phase 1 Phase
Series DC1

Product Description

DC1-46U is a basic plus process control DC1 series controller. This open chassis, special customer model is produced by Reliance Electric. Features of this model which has an isolated process control interface, include motor speed adjustment by potentiometer in manual mode or process control output signal in automatic mode. This drive controller also includes manual/automatic mode switching by selector switch, process control signal input selection by jumper, an isolated input 300K ohm differential, a Process Interface (PI) Gain adjustment, and a Process Interface (PI) Bias adjustment.

Part of starting up the controller involves checking the direction of the motor rotation. In order to accomplish this, press the Run button and then quickly press the Stop switch. If the motor shaft doesn’t rotate because all potentiometers are set up to minimum levels, turn the Speed or Torque potentiometer slightly clockwise and repeat the Start/Stop operation. The motor shaft rotation may be incorrect. If this is the case, press the Stop switch and wait for the motor to completely stop. Then remove A-C input power, and reverse the motor armature power lead A1 and A2. In order to check the direction of the motor rotation again, re-apply A-C input power. Some applications utilize D-C tachometer speed feedback. For these applications, the polarity of the tachometer changes when the direction of rotation of the motor is changed. The connection of the tachometer must remain 419 negative with respect to 519 for a given direction or rotation. The tachometer polarity was correct if the direction of the motor rotation was wrong.

Frequently Asked Questions about DC1-46U

What is the short circuit sym RMS rating on a Reliance DC1-46U?
DC1-46U has a short circuit sym RMS rating of 10,000 amps.
What are the maximum input and output amps on DC1-46U?
DC1-46U has 12.5 maximum input amps and DC1-46U has 10.0 maximum output amps.
What is the service factor on a Reliance DC1-46U?
The service factor on a Reliance DC1-46U is 1.0.
Where can I find a manual for a DC1-46U?
We are happy to send you a link to the Reliance Electric Installing and Operating DC1 Drives Instruction Manual. Manual D2-3078. There is also a DC1 D-C VS Drives Manual by Reliance Electric.

Repair Services For DC1-46U

Type Lead Time Price Action
Repair Service 1-2 weeks $303

Our highly skilled technicians can repair your DC1-46U. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
