Automate DCS 5000 Universal Drive Controller Module

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a O-57552- to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: O-57552-
  • SKU: O57552RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

O-57552- Technical Specifications

Manufacturer Reliance Electric
Series AutoMax PLC
Part Number O-57552-
Product Type Universal Drive Controller Module
Instruction Manual S-3007

Product Description

The O-57552- module is a universal drive controller that was created for use with an AutoMax PLC system. Both the O-57552- universal drive controller and the AutoMax PLC series were made by the company Reliance Electric. AX Control tends to have this product in stock for the convenience of our customers even though it is no longer in production by Reliance Electric.

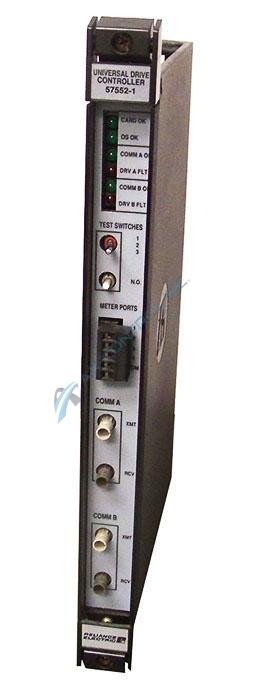

The O-57552- universal drive controller has a faceplate that is full of numerous components that will be used in normal operation. At the top, there are six total LED indicators. These indicators are broken up into three groups of two. The first two are green indicators, with the first one being labeled as “CARD OK” and the second one is labeled as “OS OK.” The next group has one green indicator one red indicator. The green indicator is labeled as “COMM A OK” and the red indicator is labeled as “DRV A FLT.” The last group also has one green indicator and one red indicator. The green indicator is labeled as “COMM B OK” and the red one in labeled as “DRV B FLT.”

Below the six indicators, there is a small switch with three positions. This switch is labeled as “TEST SWITCH.” Below the test switch, there is a small button that is labeled with “N.O.” to its right. Below the button, there is a group of five small ports that have the label “METER PORTS” printed above it. Next, there are two groups of two ports. These groups are labeled as “COMM A” and “COMM B.” Both of these groups have the same two ports, which are labeled as “XMT” and “RCV.”

Frequently Asked Questions about O-57552-

How many status LEDs are on O-57552-?
On O-57552-, there are 6 total status LEDs. Four of the LEDs on O-57552- are green and two of the LEDs on O-57552- are red.
Which manual goes with O-57552-?
The manual for O-57552- is Manual S-3007. The manual is a Reliance manual and we can send you a link to the O-57552- manual or you can find the manual on our website.
