Automate DCS Industrial Programmable PLC



Sell Surplus: Have a O-57430- to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: O-57430-
  • SKU: O57430RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

O-57430- Technical Specifications

Manufacturer Reliance Electric
Series AutoMax PLC
Part Number O-57430-
Product Type Processor Module
Instruction Manual J-3650

Product Description

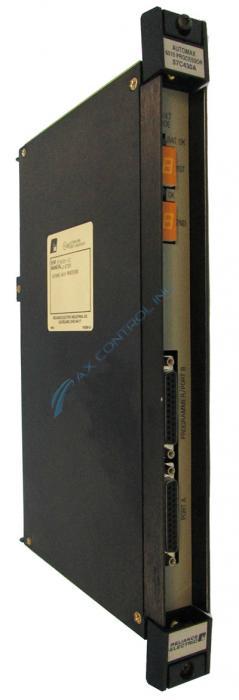

The O-57430- unit is one of three AutoMax processor modules that were designed and produced by Reliance Electric. This model, like the other two, has had its production halted by the original manufacturer. However, AX Control may still have this product in stock. Check on the availability of the O-57430- processor module by either looking on our website or by contacting our office during business hours.

The other two AutoMax processor modules are the O-57431- and the O-57435- modules. The three processor modules are all similar, but have a few key differences, most notably in their memory/speed configurations. The specifications for the O-57430- processor module can be found below. For specifications on the other two AutoMax processor modules, click on their respective links in the first sentence of this paragraph to be taken to their pages on the AX Control website.

The O-57430- model is a 6010 processor module. This module has a CPU speed of 8 mHz and a memory of 256K parity RAM. The O-57430- processor module’s internal lithium AA battery is made to protect the module in the event of a system power failure. The voltage for this battery is 3.6 Volts. This battery can save the contents of the O-57430- processor module if a power failure does occur for at least 42 days. Typically, however, the hold-up with this on-board battery is 333 days. The maximum charge-up time for the O-57430- processor module’s battery is 15 minutes. For comparison, the hold-up without the on-board battery is typically only 10 hours with a minimum hold-up of 10 minutes.

Frequently Asked Questions about O-57430-

What are the dimensions of O-57430-?
O-57430- is 11.75 inches in height. O-57430- is 1.25 inches in width. O-57430- is 7.37 inches in depth.
What are the specifications for the serial port on a Reliance O-57430-?
O-57430- has a RS-232C serial port. The electrical isolation of the O-57430- serial port is 450 volts. The voltage for O-57430- port is +/- 12 volts. The maximum current per channel on the O-57430- serial port is +/- 30 mA.
What is the CPU speed on O-57430-?
O-57430- has 8 mHz CPU speed.
  • O-57430-1
  • O-57430-1A
  • O-57430-1B
  • O-57430-1C
  • O-57430-1D
  • O-57430-1E
  • O-57430-1F
  • O-57430-1G
  • O-57430-1H
  • O-57430-1I
  • O-57430-1J
  • O-57430-1K
  • O-57430-1R
  • O-57430-2
  • O-57430-2A
  • O-57430-2B
  • O-57430-2C
  • O-57430-3
  • O-57430-3A
  • O-57430-4
  • O-57430-4A
  • O-57430-4B
  • O-57430-4C
  • O-57430-A
  • O-57430-B
  • O-57430-C
  • O-57430-D
  • O-57430-E
  • O-57430-F
  • O-57430-G
  • O-57430-H
  • O-57430-I
  • O-57430-J
  • O-57430-K
  • O-57430-L
  • O-57430-M
  • O-57430-N
  • O-57430-O
  • O-57430-P
  • O-57430-Q
  • O-57430-R
  • O-57430-S
  • O-57430-T
  • O-57430-U
  • O-57430-V
  • O-57430-W
  • O-57430-X
  • O-57430-Y
  • O-57430-Z

Repair Services For O-57430-

Type Lead Time Price Action
Repair Service 1-2 weeks $247

Our highly skilled technicians can repair your O-57430-. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

O-57430- Manuals, White Papers, Data Sheets, and Troubleshooting
