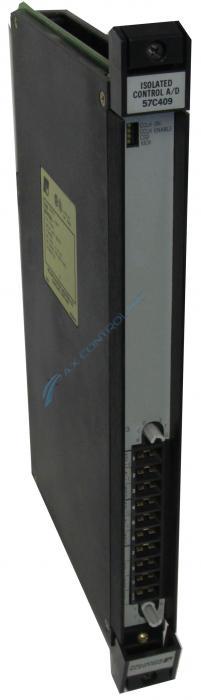

DCS 5000 Automax Analog Input PLC

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a O-57409- to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: O-57409-
  • SKU: O57409RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

O-57409- Technical Specifications

Manufacturer Reliance Electric
Series AutoMax PLC
Part Number O-57409-
Product Type 2 Channel Analog Input Module
Instruction Manual J-3637

About the O-57409-

The O-57409- unit is a 2 channel analog input module that was made to be compatible with the AutoMax racks that were made by Reliance Electric. This device is no longer available through Reliance Electric, but it may still be supplied through AX Control. Check our website for more details on the O-57409- analog input module’s availability in our stock.

The O-57409- analog input module has a total of two channels that it uses as a means of inputting analog signals to a local rack within the AutoMax system. These two channels can be converted once every 500 microseconds. In addition to that, each channel provides a 12-bit conversion rate, programmable filters, and 100% overrange. For each of these channels, you will find one isolated common. For flexibility in usage, the inputs can be +/- 1, +/- 5, +/- 10 Volts or 4-20 mA.

For most cases, a typical user will need the O-57409- analog input module for reading analog voltages from a variety of devices. This can include, for example, tachometers, process control systems, potentiometers, and drive control systems.

For installing the O-57409- analog input module, be sure to abide by the following steps to ensure normal operation. Make sure the power is off and then mount a terminal strip to a nearby panel. Then, fasten the field wires to the terminal strip. You may then, using a screwdriver, insert and secure the O-57409- analog input module into any slot in the rack. Connect the field terminal connector to the mating half present on the module and turn the rack’s power back on.

Frequently Asked Questions about O-57409-

How do you get input signals on O-57409-?
O-57409- gets input signals through a multi-conductor cable, model number 57C371.
What temperature range should O-57409- be in?
When operating, O-57409- should be in a temperature between 0 and 60 degrees Celsisus. When storing O-57409-, the temperature where O-57409- is located can be as low as -40 degrees Celsius and as high as 85 degrees Celsius.
What is the max power dissipation on O-57409-?
O-57409- has a maximum module power dissipation of 25 watts.
Where can the manual for O-57409- be found?
We have a copy of the manual for O-57409-. The manual is Manual J-3637, the 2 Channel Analog Input Module Manual. The manual is specific to O-57409-. Request the manual from our employees or find the manual on our site.
