The Reliance Electric AutoMax 805405-1R functions as a single-phase field power module unit with an output of 15 amps, and AC input of 120 to 460 VAC with a non-reversing (S2) bridge type.

Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 805405-1R to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 805405-1R
SKU: RE-53943

Manufacturer: Reliance Electric
Series: AutoMax PLC

Description
Revisions
Repairs
Warranty
Manuals

805405-1R Technical Specifications

Manufacturer	Reliance Electric
Series	AutoMax PLC
Part Number	805405-1R
Shipping Weight	6 lb

About the 805405-1R

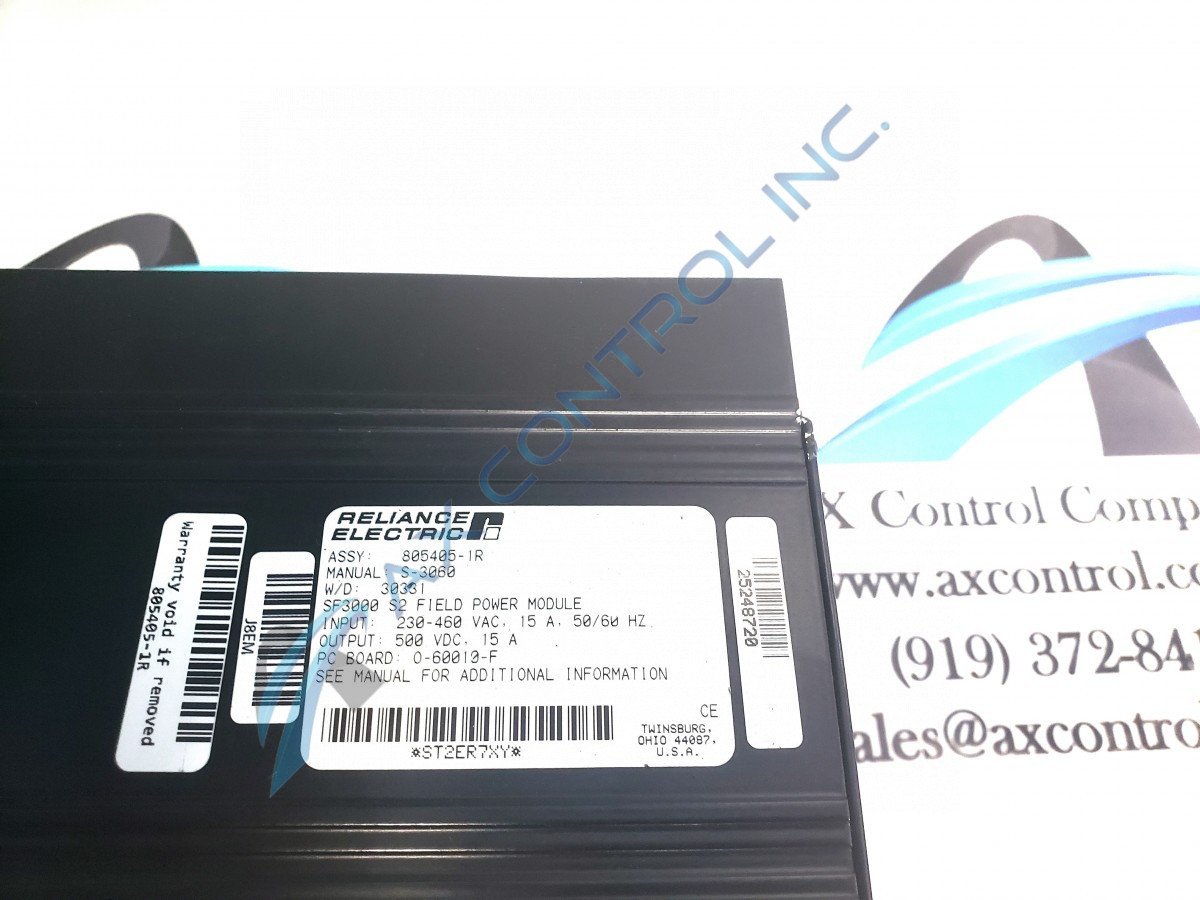

The 805405-1 unit is an SF3000 Panel-Mounted Single-Phase Field Power Module manufactured by Reliance Electric.
Production has been stopped by the original manufacturer.
AX Control makes an effort to supply this device and may have it in stock (check page or contact them).

Functionality and System Integration

Designed to provide adjustable-voltage, current-regulated field excitation processes for DC motors within the AutoMax series.
Used in conjunction with a three-phase Armature Power module.
Both modules are connected to the same PMI rack.
Its SCR power bridge is operated using the AutoMax Programming Executive software.

Electrical Specifications and Protection Features

Power Rating: 15 Output Amps.
AC Input Voltage Range: 120 to 460 VAC.
Bridge Type: Non-reversing.
Protection Features:
- Electrically isolated power cube with its own dv/dt protection.
- Internal AC line fuses.
- Self-firing clamp for protection against inductive voltage kick from current interruption.
Rectifier: Consists of four SCRs configured for use in a full-wave bridge.
Optional Component: An isolation transformer.

Frequently Asked Questions about 805405-1R

What manual is used with 805405-1?

The manual used with 805405-1 is Manual S-3060. The manual for 805405-1 is the Distributed Power System SF3000 Panel-Mounted Single-Phase Field Power Modules Manual. The manual is a Reliance manual and the manual highlights 805405-1 as well as 805405-3R and 805405-5R.

What is the voltage on 805405-1?

805405-1 has a voltage between 120 and 460 VAC.

What bridge type is 805405-1?

805405-1 has a non-reversing (S2) bridge type.

What is the maximum AC input current on 805405-1?

805405-1 has a maximum AC input current of 15.5 amps. 805405-1 has a rated DC output current of 15 amps.

Reviews For 805405-1R

Internal Review

(5.0)

Integrated Functionality and Robust Protection – This module is intended to work in conjunction with a three-phase Armature Power module within the same PMI rack, with its SCR power bridge controlled by the AutoMax Programming Executive software. Electrically, it boasts a 15 Output Amps power rating and an AC input voltage range of 120 to 460 VAC with a non-reversing bridge. Critical protection features include an electrically isolated power cube with dv/dt protection, internal AC line fuses, and a self-firing clamp to guard against inductive voltage kicks. Its full-wave bridge rectifier, composed of four SCRs, ensures reliable performance, with an optional isolation transformer available for specific needs. The 805405-1 is a key component for maintaining the functionality of AutoMax DC motor systems. – AX Control Technician
