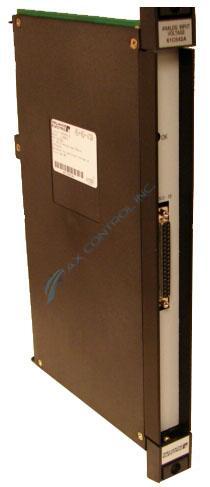

The 61C542 is a 16 Channel +/- 10VDC Analog Input Module that was created to be a part of an AutoMate system.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 61C542 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 61C542
  • SKU: 61C542RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

61C542 Technical Specifications

Manufacturer Reliance Electric
Series AutoMate PLC
Part Number 61C542
Product Type Analog Voltage Input Module

Product Description

The 61C542 is a 16 Channel Input Module created by Reliance Electric. Depending on what year it was manufactured, this input module may have also been produced by Baldor Reliance and Asea Brown Boveri as part of their line of products.

The 61C542 is a +/- 10VDC Analog Input Module that was created to be a part of an AutoMate system. This module is the voltage version of this particular card. The inputs for this card are normally wired into a termination panel. From there, the termination panel has the power to talk to the Multibus input module using a connection to a 5ft cable. This 5ft cable typically comes with the termination panel.  There is a total of 16 input connections present on the termination panel. An additional termination panel is not required for these input connections. All 16 channels can be put on the same terminal.

This card has many important features. It has 16 channels of voltage input, square root extraction, automatic calibration, 13-bit resolution.  It can be scaled or unscaled, run an average of 1-60 samples, and has a broken wire detection system.

The 61C542 can be secured into a remote or local card storage rack assembly. In order to secure it into the rack, you need to slide the card through the open front side of the rack assembly. Plug the card directly into a female card slot located on the backplane of the rack. Then use two screws to mount the module onto the rack.

Frequently Asked Questions about 61C542

What kind of rack can 61C542 be mounted in?
61C542 can be mounted in either local or remote racks.
What is the running average on 61C542?
61C542 has a running average of 1-60 samples.
What are the channel adjustments on 61C542?
61C542 has 16 channels of voltage and the channels on 61C542 have four alarm set points per channel. The alarm set points for the channels on 61C542 are: low low, low, high, high high
  • 61C542A
  • 61C542B
  • 61C542C
  • 61C542D

Repair Services For 61C542

Type Lead Time Price Action
Repair Service 1-2 weeks $203

Our highly skilled technicians can repair your 61C542. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
