The 61C350 is a 0-10 volt DC Analog Rail Module that was produced for an AutoMax DCS.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 61C350 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 61C350
  • SKU: 61C350RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

61C350 Technical Specifications

Manufacturer Reliance Electric
Part Number 61C350
Product Type Analog Rail Module
Instruction Manual J-3672

Product Description

The 61C350 was an I/O Module created by Reliance Electric. It may have also been in production with Asea Brown Boveri or Baldor Reliance depending on what dates it was in production. This module is not being maintained by these companies anymore, but AX Control tries to keep them in stock.

The 61C350 is a 0-10 volt DC Analog Rail Module that was produced for an AutoMax DCS. This model comes with a terminal strip that does not cause issues with field wiring.

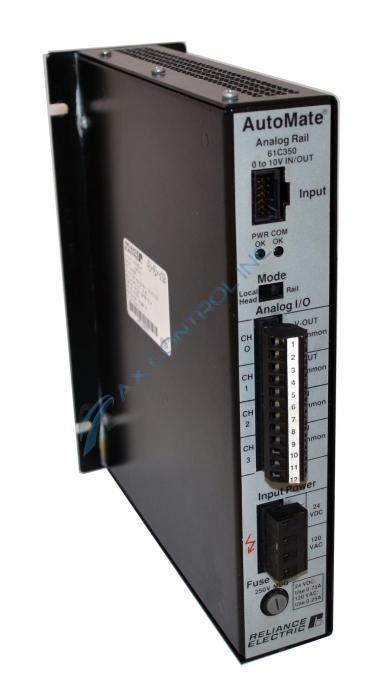

The 61C350 has many features on its faceplate. It has a 12-point male INPUT connection. It has two LEDs that have been labeled PWR OK and COM OK.  It has a 2-channel input and 2-channel output Analog I/O that have 12 connections. These connections are broken into groups of 3 and are numerically labeled 1-12. Next to these numerical labels are the words V-IN or Common. The commons that are in the 3, 6, 9, and 12 spaces are not labeled with words. It has an Input Power connection that is labeled DC+ DC- 24VDC and L2 L1 120VAC. There is a 250 Fuse Type and a box next to it that tells the user to use a 75mA with a 24VDC and a 25mA with a 120 VAC.

The back of this module has a large mounting bracket where four screws can be used to mount it into place. There are also factory drilled holes on the bottom of the 61C350 that are used to promote airflow to the inner circuitry of the device.

Frequently Asked Questions about 61C350

What will I find in the 61C350 manual?
The manual for 61C350 is the 2-In/2-Out 0-10 Volt Analog Rail Module Manual, Manual J-3672. Within the manual, you will find a mechanical and electrical description of 61C350, how to install 61C350, programming a Reliance 61C350, and diagnostics and troubleshooting a Reliance 61C350. For a copy of the manual, request a link to the 61C350 manual.
What is 61C350 used with?
61C350 is typically used with several things. 61C350 uses potentiometers, valve actuators, pressure or flow transducers, and meters. 61C350 is used with these in both drive control and process control systems.
What do the analog input channels on 61C350 do?
61C350 has two analog input channels that convert 0-10V analog input signals to proportional values between 0 and 4095, equal to 12 bits of digital data.
What is the maximum source KVA on 61C350?
61C350 has a maximum KVA of 10.
  • 61C350A
  • 61C350B
  • 61C350C
  • 61C350D
