61C-345 Rockwell Automation Automate DCS 5000 Obsolete Analog Rail Module.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 61C345 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 61C345
  • SKU: 61C345RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

61C345 Technical Specifications

Series AutoMate PLC
Part Number 61C345
Product Type Analog Rail Module

About the 61C345

The 61C345 is an Analog Input Module that was designed by Reliance Electric. This input module could have been sold by Asea Brown Boveri or Baldor Electric depending on the production dates of this part. None of the manufacturers maintain support for this module anymore. AX Control does try to keep it in stock as a reconditioned or new surplus part.

The 61C345 is an Analog Rail I/O Module that was created for an AutoMax DCS. This module has the ability to facilitate up to 4 channels worth of analog signals. This module is rated 4-20mAs

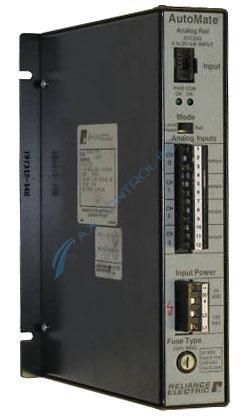

The 61C345 has many different functions on its faceplate. It has a 12-point 4 to 20 mA input connector labeled INPUT. Under that are two green LEDs labeled PWR OK and COM OK. There is a MODE switch that is labeled Local Head and Rail. Under that are Analog Inputs these are separated into four groups of three input connections. It is numerically labeled 1-12. Next to the numbered labels, there are additional labels. 1, 4, 7, and 10 are labeled IN while 2, 5, 8, and 11 are labeled Common. 3, 6, 9 and 12 did not have any additional wording. Below that is the Input Power connection and the fuse replacement bank that lists the Fuse Type as 250V. The module case has factory-drilled holes that help circulate airflow to the internal circuitry of the module.

The 61C345 plugs into a 45C1 Digital Input/Output Rail. This rail is a space saver and allows the various modules plugged into it to be mounted sideways, allowing one to be on top of the other. Then when you mount this entire system into the storage rack, you can turn it vertically or horizontally in the rack depending on where you have space.

Frequently Asked Questions about 61C345

What is the mechanical description of 61C345?
61C345 is a self-contained electronic module with 4 analog channels that are muliplexed to an analog-to-digital converter.
What type of mounting should you use with 61C345?
61C345 was designed for panel mounting and 61C345 has a protective metal enclosure.
What is the resolution on 61C345?
61C345 has 12 bit binary resolution.
Where can I find the manual for 61C345?
We have the manual for 61C345 and we can provide you that manual. The manual is Manual J-3689, the 4 Input 4-20mA Analog Rail Module Manual specific to 61C345.
