Reliance Electric AutoMax 61C22 I/O Head Local 61 C 22

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 61C22 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 61C22
  • SKU: 61C22RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

61C22 Technical Specifications

Manufacturer Reliance Electric
Series AutoMate PLC
Part Number 61C22
Instruction Manual J-3671

Product Description

The 61C22 is a Local I/O Head made by Reliance Electric. It was also possibly sold by Asea Brown Boveri and Baldor Reliance

The 61C22 is specifically a Rail-Mounted Digital Local Head that was created for a Rail I/O system on an AutoMax DCS. This device, when used within the Rail-Mounted I/O system, is allowed to be customized to meet the system requirements. Four different digital I/Os have the ability to talk to a single I/O port on the device. The number of digital I/O that can be connected to a remote I/O head can then be increased from 64 to 256. This module also comes preloaded with its own power supply that has the ability to provide power to four total rails of digital I/O modules.

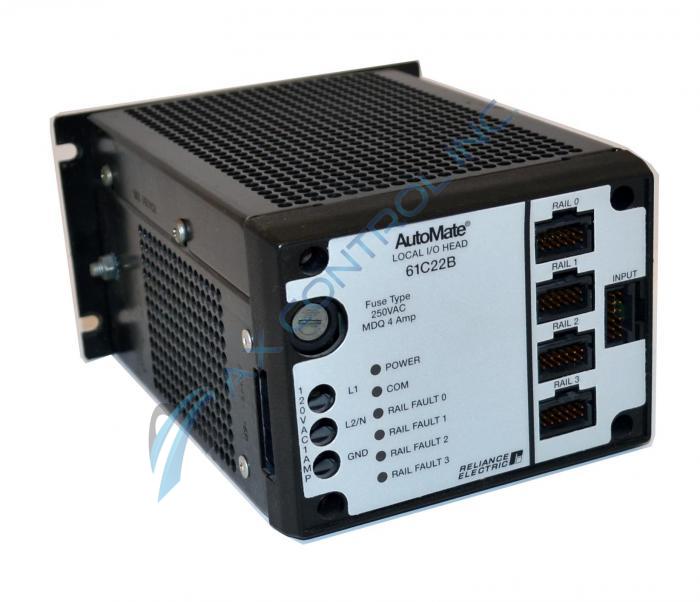

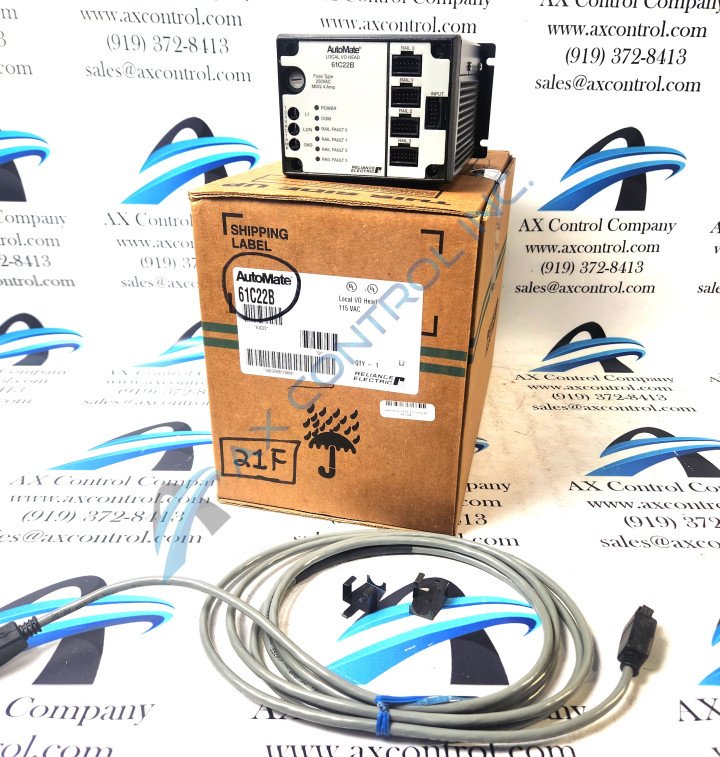

The 61C22 has a lot of components on its faceplate. It has a 250VAC MDQ 4-amp replaceable fuse compartment. It has a bank of LED indicators that are labeled POWER, COM, RAIL FAULT 0, RAIL FAULT 1, RAIL FAULT 2, and RAIL FAULT 3. There are five 12-POINT male ports that are labeled RAIL 0, RAIL 1, RAIL 2, RAIL 3, and INPUT.  Four of these ports are I/O communication ports and the last one is a remote head communication port.

The back of the 61C22 has a mounting bracket that can be used to put the module on a rack assembly. The top and sides of this module have factory drilled holes on them. These holes are vital to the module because they allow air to flow into the inner circuitry of the module.

Frequently Asked Questions about 61C22

What system does 61C22 use?
61C22 uses the AutoMate 20/20E I/O system. 61C22 is built around a custom LSI chip to insure reliability and increase speed.
What does 61C22 do?
61C22 is a communications muliplexer that allows four input/outupt to communicate to I/O communication ports on the AutoMate 20/20E processor unit of 61C22.
What does it mean when the 'COM' LED is on on a Reliance 61C22?
When the 'COM' LED is on, communication is taking place between the processor and local head on the 61C22.
  • 61C22A
  • 61C22B
  • 61C22C
  • 61C22D

Repair Services For 61C22

Type Lead Time Price Action
Repair Service 1-2 weeks $347

Our highly skilled technicians can repair your 61C22. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
