Reliance Electric AutoMax 57C429 R-Net Module Card 57C429

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 57C429 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 57C429
  • SKU: 57C429RE
  • Manufacturer: Reliance Electric
  • Series: AutoMax PLC

57C429 Technical Specifications

Manufacturer Reliance Electric
Series AutoMax PLC
Part Number 57C429
Product Type R-Net Processor Module

Product Description

The 57C429 is a Reliance Electric created R-NET Processor Module. There is a good probability that this device was sold by Asea Brown Boveri or Baldor Reliance under their product lines depending on what year it was being manufactured. The original companies that produced the 57C429 are no longer offering support for it. This item may be hard to locate, but AX Control does try to keep it in stock.

The 57C429 was created to be part of the AutoMate PLC control system and is a Single-Board Interface R-NET Module. It had the ability to grant peer-to-peer communication between an AutoMate and AutoMax system. This system is advantageous because it allows for the possibility that a node can drop offline and the system will still be allowed to communicate. If you use an RG-11U cable, you can connect a maximum of 32 AutoMate controllers to the R-NET.  This configuration is a synchronous baseband coax cable network that has a multidrop networking system.

This entire system can be attached to an AutoMate storage rack. You can actually have more than one 57C429s plugged in at a time. When you attach them to the rack, you can have the option of running various network lines to each of the modules. Depending on what your actual system needs are, you can run these modules on the same network line or on a completely separate system.

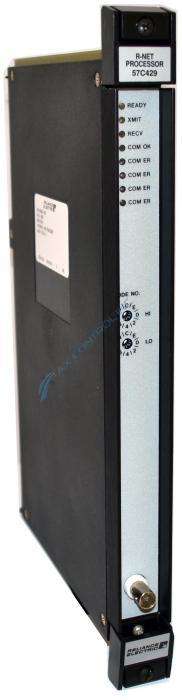

The 57C429 has a faceplate that has several features on it. It has 8 LED lights that are labeled READ, XMIT, RECV, COM OK, and four that are labeled COM ER. This module also has a spot to plug in a coax cable and two dials that are labeled MODE NO.

Frequently Asked Questions about 57C429

What type of communication does 57C429 allow for?
57C429 allows for an AutoMax/DCS 5000 rack to communicate over the R-Net industrial network, which allows AutoMate Processors, AutoMax Processors, and other devices to communicate with eachother to create a distributed control or centralized data-gathering system.
How much memory does 57C429 have to store data?
57C429 has a 16K byte dual-port memory for storing data transmitted through the network.
Can AX Control help with troubleshooting a Reliance 57C429?
Yes, our experts would love to help with any troubleshooting issues you're having with a Reliance 57C429. Our staff can help with any 57C429 troubleshooting needs. For help troubleshooting your 57C429, call us at 919-372-8413 or send us an email labeled troubleshooting 57C429 to sales@axcontrol.com

Repair Services For 57C429

Type Lead Time Price Action
Repair Service 1-2 weeks $358

Our highly skilled technicians can repair your 57C429. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
